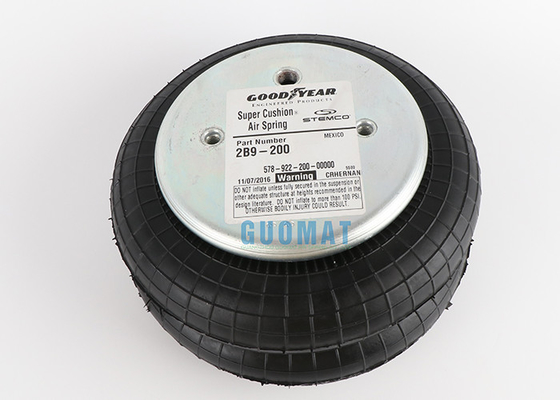

Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910

Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910

    • Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910
    • Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910
    • Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910
    • Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910
    • Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910
    • Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910
    • Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910
  • Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: Goodyear
    Certification: ISO/TS16949:2009
    Model Number: 2B9-200

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel Cover Plate , Rubber Bellows Goodyear: 2B9-200
    Gas Hole: 1/4NPTF Screw Tooth: 3/8-16UNC
    Screw Center Distance: 89 Mm Cover Plate Diameter: 160 Mm
    Pressure Ability: 0.2-0.8 M Pa Stroke: 75~260 Mm
    Net Weight: 3.35 Kg Package Size: 24*24*24 CM
    High Light:

    air suspension parts

    ,

    convoluted air spring

    Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910





    Application of 2B9-200 Goodyear Air Spring:


    Air springs are widely used in auto-regulating air suspensions of commercial vehicles, buses, railway vehicles, mechanical equipment and building foundations. Gas springs are also called support rods, angle adjusters, pneumatic rods, shock absorbers, etc. According to the structure and function of the gas spring, there are several types of gas spring, such as free gas spring, self-locking gas spring, and traction. Gas spring, free stop gas spring, swivel chair gas spring, gas rod, shock absorber, etc. This product is widely used in automobile, aviation, medical equipment, furniture, machinery manufacturing and other fields.





    About 2B9-200 Goodyear Air Spring:



    2B9-200 This air spring is imported and imported from the American brand Goodyear. Its skin number is 578923202. It is a real original imported thing produced by a factory in Mexico.
    The quality of this air spring is very good. Many customers use it. After using it, it can take several years to replace it.
    The Goodyear brand is one of the three major brands in the world, which is well known.
    This air spring is most widely used on small and medium trucks.
    There are also many customers using it on various shock absorption equipment or lifting equipment.





    Manufacturer: Goodyear
    Brand name: Goodyear
    Product weight: 3.35 kilograms
    Package size: 24*24*24 CM
    Model: 2B9-200





    2B9-200 Goodyear Air Spring Cross others OEM



    OEM Reference OEM Reference

    Goodyear:2B9-200
    Goodyear:2B9 200
    Goodyear:2B9200
    Goodyear:578-92-3-202

    Goodyear:578 92 3 202

    Goodyear:578923202

    Taurus: AS218-6910
    Triangle Spring: 4320 Dallas Spring: AS6910

    Firestone: 6910

    Firestone:W01-358-6910

    Firestone:W01 358 6910

    Firestone:W013586910

    Sirco: AS-6910
    ContiTech: 64267

    ContiTech:FD 200-19 CI 1/4 NPT

    ContiTech:FD 200 19 CI 1/4 NPT

    ContiTech:FD200-19 CI 1/4 NPT

    Midland/Haldex: CS209200
    R & S Truck: 1027405 Euclid/Meritor Aftermarket: E-FS6910
    Ridewell: 1003586910C ContiTech: FD200-19320
    Batco: 10-96910 Euclid/Meritor Aftermarket: FS6910
    Reyco: 23704-01 BWP: M-3501
    Hendrickson: 45843-3 HD America: PMABG-6910B
    Navistar/IHC: 554783C1 Ridewell: S4512C
    UCF/Impex: AB-2B9-200 Leland: SC201
    Automann: ABSP2B12R-6910 Leland: SC2011
    Watson & Chalin: AS0001 Granning: 1371







    2B9-200 Goodyear Air Spring Technical parameters



    Nut / Blind Nut



    Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
    The screw center distance of the top cover plate: 89 mm
    Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
    Screw center distance of bottom cover plate: 89 mm



    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 44.5 mm



    Cover Plate

    Top Cover Plate Diameter: 160 mm

    Bottom Cover Plate Diameter: 160 mm



    Rubber Bellows

    Rubber Bellows MAX Diameter: 251 mm

    Rubber Bellows Natural Diameter : 224 mm

    The Working Stroke : MIN 75 mm to MAX 260 mm

    Maximum Height : 274 mm

    Minimum Height :95mm

    Stroke Height : 179mm



    Bumper block / Buffer block

    Without Bumper Block



    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop

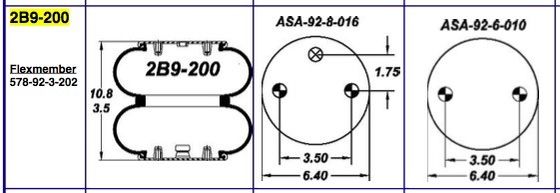

    The drawing of Goodyear Air Spring 2B9-200:



    Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910 0

    Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910 1Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910 2



    Other information of Goodyear 2B9-200 air spring:



    Goodyear #: 2B9-200
    Bellows type:  double
    Ultraman Bellows #: SP2B12R
    Flint Bellow #: 20F is 20
    Goodyear Bellows #: 578-92-3-202
    Contitech bellows #: FD 200-19
    Triangle bellows #: 6325

    Number of top plate holes / studs: 3
    Top plate diameter: 6.4 inch 162.56 mm
    Top plate C to C diameter: 3.5 inch 88.9 mm

    Base plate diameter: 6.4 inch 162.56 mm
    Base plate C to C diameter: 3.5 inch 88.9 mm

    Minimum height: 3.2 3.2 inch 81.28 mm
    Maximum height: 10.8 10.8 inch 274.32 mm







    Goodyear Part # Firestone Part # ContiTech Part # Contitech Order #
    2B9-200 W01-358-6910 FD 200-19 320 64267
    2B9-201 W01-358-6935 FD 200-19 499 64515
    2B9-206 W01-358-6905 FD 200-19 315 64510
    2B9-210 W01-358-6908 FD 200-19 362 64511
    2B9-216 No Cross No Cross No Cross
    2B9-218 W01-358-6927 FD 200-25 453 64553
    2B9-225 W01-358-6928 No Cross No Cross
    2B9-229 W01-358-6897 FD 200-19 505 64517
    2B9-230 W01-358-6940 FD 200-19 450 64513
    2B9-239 W01-358-6902 FD 200-19 310 64509
    2B9-240 W01-358-7119 No Cross No Cross
    2B9-244 No Cross No Cross No Cross
    2B9-245 W01-358-7788 FD 200-19 510 64519
    2B9-246 W01-358-6932 FD 200-19 452 64514
    2B9-250 W01-358-6943 FD 200-25 426 64549
    2B9-251 W01-358-6948 FD 200-25 429 64552
    2B9-252 W01-358-6944 FD 200-25 454 64554
    2B9-253 W01-358-6945 FD 200-25 427 64550
    2B9-254 W01-358-6946 FD 200-25 463 64555
    2B9-255 W01-358-6947 FD 200-25 428 64551
    2B9-265 W01-358-6941 FD 200-19 448 64512
    2B9-266 W01-358-6944 FD 200-25-454 64554
    2B9-270 No Cross No Cross No Cross
    2B9-280 W01-358-6941 FD 200-19 448 64512
    2B9-288 W01-358-6926 FD 200-19 504 64516
    2B9-296 No Cross No Cross No Cross
    2B9-606 No Cross No Cross No Cross
    2B9-607 No Cross No Cross No Cross
    2B9-611 No Cross No Cross No Cross
    2B9-614 No Cross No Cross No Cross
