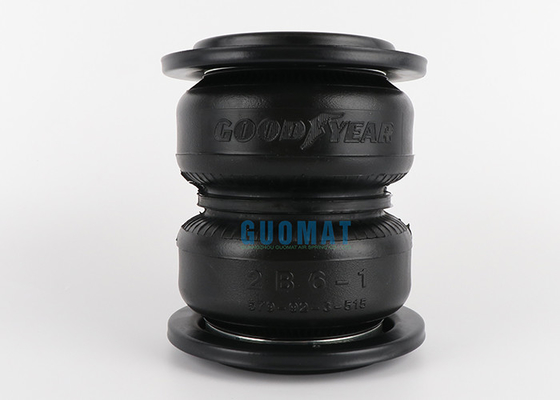

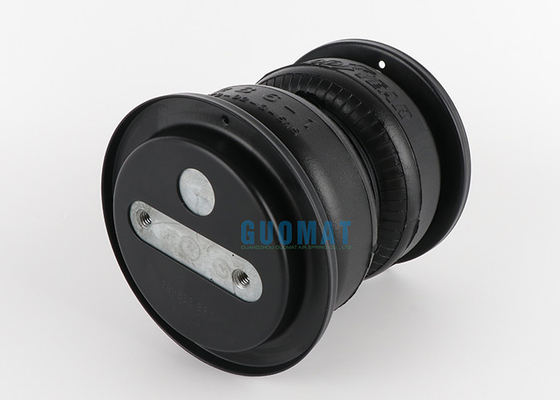

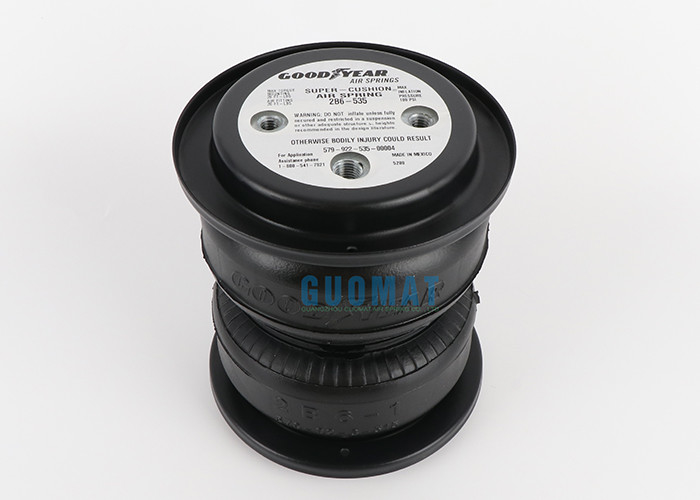

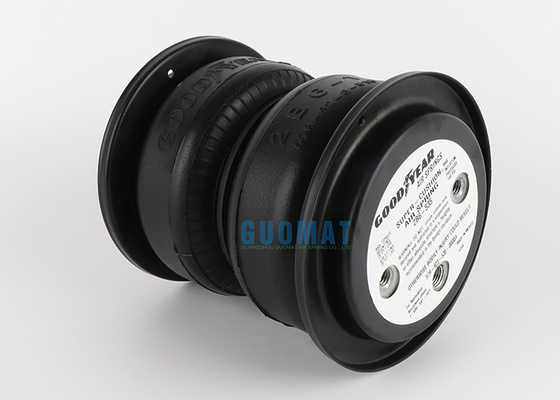

2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535

2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535
2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535

Large Image :  2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 Get Best Price

Product Details:

Place of Origin: Guangdong,China
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 2B6-535

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Goodyear: 2B6-535
Gas Hole: 1/4NPTF Screw Tooth: 3/8-16UNC
Screw Center Distance: 70 Mm Cover Plate Diameter: 105 Mm
Pressure Ability: 0.2-0.8 M Pa Stroke: 71~231 Mm
Net Weight: 3.5 Kg Package Size: 24*24*24 CM
High Light:

air helper springs

,

air suspension parts

2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535





Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.5 kilograms
Package size:
24*24*24 CM
Roof hole / stud: 3
Floor hole / stud: 2
Top plate diameter: 4.15=105 mm
Base plate diameter: 4.15=
105 mm
Folding height: 2.8
Flexible members: 579-92-3-515
piston:
Piston type:-
Goodyear Trim: 2B6535



Refer to

CONTITECH FD110-15766 /

CONTITECH FD110-15 766

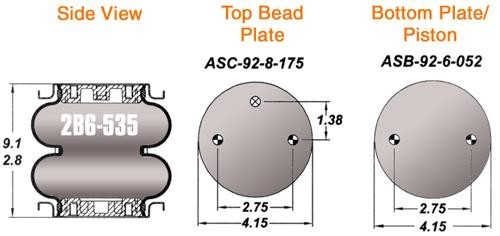

2B6-535 Goodyear Technical parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 70 mm /2.75 inch

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 70 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 35 mm



Cover Plate

Top Cover Plate Diameter: 105 mm

Bottom Cover Plate Diameter: 105 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 178 mm

Rubber Bellows Natural Diameter :150 mm

The Working Stroke : MIN 71 mm to MAX 231 mm

Maximum Height : 231 mm

Minimum Height :71mm

Stroke Height : 160mm

Max OD @ 100 psi (Inches):178mm





Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Application of GOODYEAR 2B6-535



Similar Parts
4G2220
4G2220 Fuel Injector
JP10010
JP10010
42532
42532 Wiper Arm
MC131962
MC131962 Brake Master Cylinder
EM-8352
EM-8352 Mount, Engine
14X35X7
14X35X7 Seal
710511
710511 Manual Trans Input Shaft Seal
460116
460116 Seal
FB452
FB452
3D1119
3D1119 Cap and Rotor Kit
95306K2
95306K2 Engine Timing Belt Component Kit
SU11353
SU11353 Sensor

2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 02B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 12B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 2



Other kinds of goodyear :



Part Number

Max OD @

100 psi (Inches)

Design Load

Range (Pounds)

Design Load

Range (Inches)

Useable Stroke

(Inches)

Min Comp

Height (Inches)

Max Ext

Height (Inches)

Bumper

Air Fitting

Size (in)

2B6-530 6.5 215-2025 4.5-6.5 4.5 2.8 7.7 NO 1/4
2B6-531 6.5 215-2025 4.5-6.5 4.5 2.8 7.7 NO 1/4
2B6-532 6.5 215-2025 4.5-6.5 4.3 3.4 7.7 YES 1/4
2B6-535 7.0 300-2270 5.0-7.0 5.9 2.8 9.1 NO 1/4
2B6-536 7.0 300-2270 5.0-7.0 5.7 3.4 9.1 YES 1/4
2B7-540 8.0 235-2585 6.0-8.0 6.5 2.5 9.0 NO 1/4
2B7-541 8.0 235-2585 6.0-8.0 6.5 2.5 9.0 NO 1/4 OS
2B7-542 8.0 235-2585 6.0-8.0 5.7 3.3 9.0 YES 1/4 OS
2B7-545 8.0 235-2585 6.0-8.0 6.5 2.5 9.0 NO 1/2
2B7-546 8.0 235-2585 6.0-8.0 6.5 2.5 9.0 NO 3/4
2B8-550 8.6 450-2700 7.0-8.0 7.1 2.8 10.3 NO 1/4
2B8-552 8.6 450-2700 7.0-8.0 7.1 2.8 10.3 NO 3/4
2B8-553 8.6 450-2700 7.0-8.0 7.1 2.8 10.3 NO 1/4
2B8-554 8.6 450-2700 7.0-8.0 6.8 3.5 10.3 YES 1/4



2B6-535 Goodyear Original Rubber Suspension Air Spring Bellows Number 579-92-2-535 3
