| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-100-3R |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Yokohama: | S-100-3R |
|---|---|---|---|
| GUOMAT: | F-100-3R | Layer Number: | 3 Convolution |
| Using Maximum Internal Pressure: | 0.88 Mpa | Vibration Frequency: | 2.7 Hz |
| Outside Opening DIA: | 55 Mm | ||
| High Light: | industrial air springs,triple convoluted air spring |
||

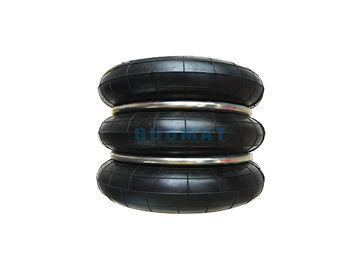

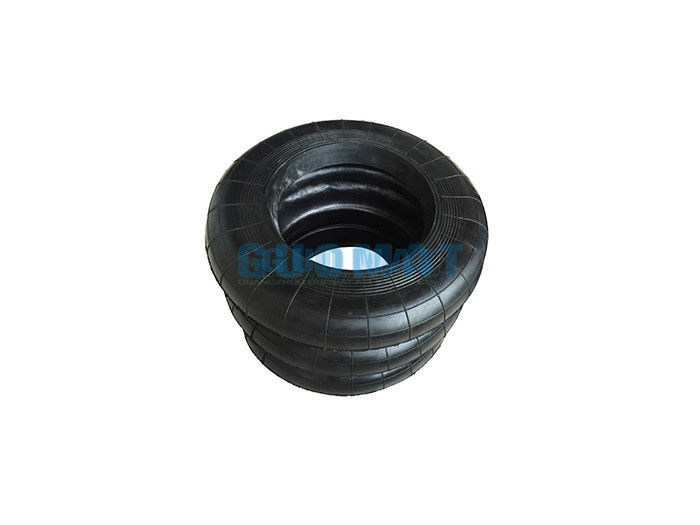

100-3 Yokohama Rubber Air Spring Cushion S-100-3R Double Acting Punch Machine
F-100-3 product description:
air spring of the presses is divided into single, double, three, four and five. Punch the air spring mattress made from natural rubber after a series of process of rubber skin, use the making craft of the air spring on the punch than ordinary industrial air spring is much more complex, therefore, the cost will be higher, the price is a natural a lot higher than the other. There are stainless steel rings in the middle, stainless steel ring in the single layer, and a steel ring in the hyperbolic. F-100-3 three curves contain two steel rings,The F-100-3 three curves contain two steel rings, and the fourth one contains three steel rings, and the fifth one contains four steel rings.

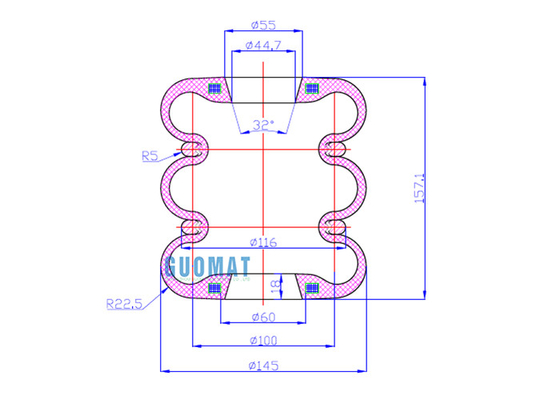

F-100-3 items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-100-3 | S-100-3 | 157.1 | 227 | 82 | ±53 | 160 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-100-3 | S-100-3 | 93 | 1.8 | 4.2 | 78 | 2.2 | 0.88 | 2.9-3.9 |
S-100-3R air spring fits below items
Papermaking equipment
Scissor lift
Mechanical Hopper vibration and damping handling stop
Direct force
Platform lift
Short stroke mechanical linkage
Hot foil stamping press
Impact absorbtion
Roller tensioning
Quick lock device
Reel tensioning
Machine isolation
GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:
| GUOMAT Part NO. |
Japan YOKOHAMA Reference No. |
Japan YOKOHAMA Reference No. |
GUOMAT Part NO. |
Japan YOKOHAMA Reference No. |
Japan YOKOHAMA Reference No. |
| F-600-1 | S-600-1R | S 600 1R | F-240-4 | S-240-4R | S 240 4R |
| F-600-2 | S-600-2R | S 600 2R | F-240-3 | S-240-3R | S 240 3R |
| F-600-3 | S-600-3R | S 600 3R | F-240-2 | S-240-2R | S 240 2R |
| F-600-4 | S-600-4R | S 600 4R | F-240-1 | S-240-1R | S 240 1R |
| F-600-5 | S-600-5R | S 600 5R | F-220-4 | S-220-4R | S 220 4R |
| F-550-2 | S-550-2R | S 550 2R | F-220-3 | S-220-3R | S 220 3R |
| F-550-3 | S-550-3R | S 550 3R | F-220-2 | S-220-2R | S 220 2R |
| F-500-2 | S-500-2R | S 500 2R | F-200-2 | S-200-2R | S 200 2R |
| F-500-3 | S-500-3R | S 500 3R | F-200-3 | S-200-3R | S 200 3R |
| F-500-4 | S-500-4R | S 500 4R | F-200-4 | S-200-4R | S 200 4R |
| F-500-5 | S-500-5R | S 500 5R | F-160-1 | S-160-1R | S 160 1R |
| F-450-1 | S-450-1R | S 450 1R | F-160-2 | S-160-2R | S 160 2R |
| F-450-2 | S-450-2R | S 450 2R | F-160-3 | S-160-3R | S 160 3R |
| F-450-3 | S-450-3R | S 450 3R | F-160-4 | S-160-4R | S 160 4R |
| F-450-4 | S-450-4R | S 450 4R | F-120-4 | S-120-4R | S 120 4R |
| F-450-5 | S-450-5R | S 450 5R | F-120-3 | S-120-3R | S 120 3R |
| F-400-2 | S-400-2R | S 400 2R | F-120-2 | S-120-2R | S 120 2R |
| F-400-3 | S-400-3R | S 400 3R | F-100-4 | S-100-4R | S 100 4R |
| F-400-4 | S-400-4R | S 400 4R | F-100-3 | S-100-3R | S 100 3R |
| F-400-5 | S-400-5R | S 400 5R | F-100-2 | S-100-2R | S 100 2R |
| F-350-1 | S-350-1R | S 350 1R | F-90-3 | S-90-3R | S 90 3R |
| F-350-2 | S-350-2R | S 350 2R | F-90-2 | S-90-2R | S 90 2R |
| F-350-3 | S-350-3R | S 350 3R | F-90-1 | S-90-1R | S 90 1R |
| F-350-4 | S-350-4R | S 350 4R | F-300-1 | S-300-1R | S 300 1R |
| F-300-3 | S-300-3R | S 300 3R | F-300-2 | S-300-2R | S 300 2R |
| F-300-4 | S-300-4R | S 300 4R |
