Home ProductsGoodyear Air Spring

2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211

I'm Online Chat Now
Certification
China GUANGZHOU GUOMAT AIR SPRING CO. , LTD certification
China GUANGZHOU GUOMAT AIR SPRING CO. , LTD certification
GUOMAT has many types of air spring and can accurately meet our requirements. You have advantage price and professional service team.

—— Vlad from Russia

The air suspension spring have passed the test and they are fitting for our car model. Through the cooperation we are familiar with each other.

—— Eric from Southeast Asia

Thank you very much for your patience and prompt reply.GUOMAT gives me big help,delivery time is very fast.

—— Peter from European

You have been very professional in your sale,I am trying to expand my work in Italy if you are personally interested in making a profit.

—— Ivan from Italy

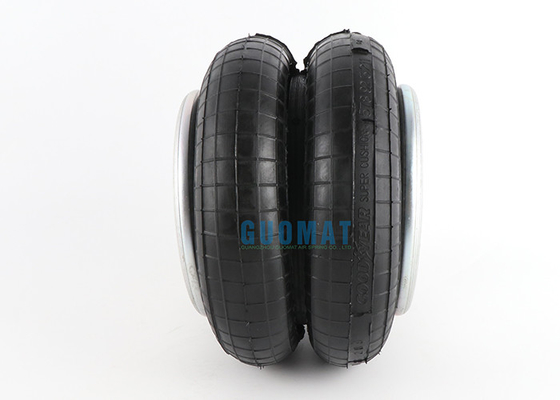

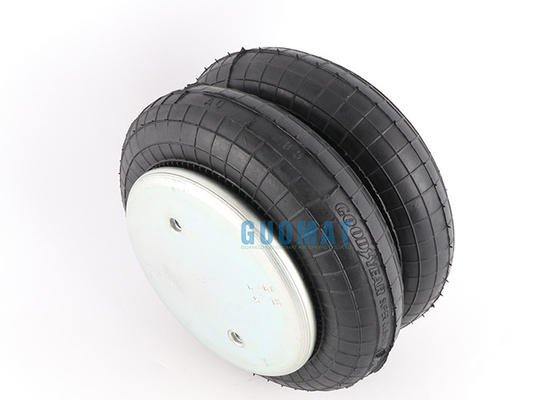

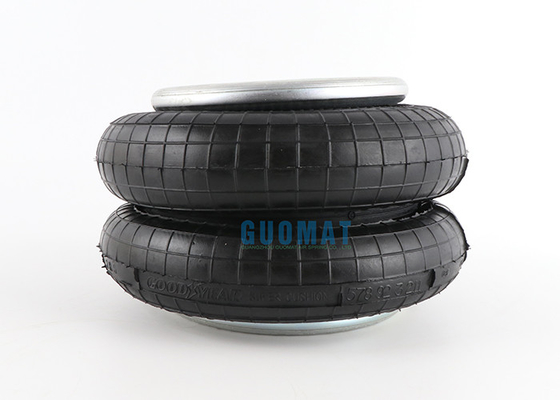

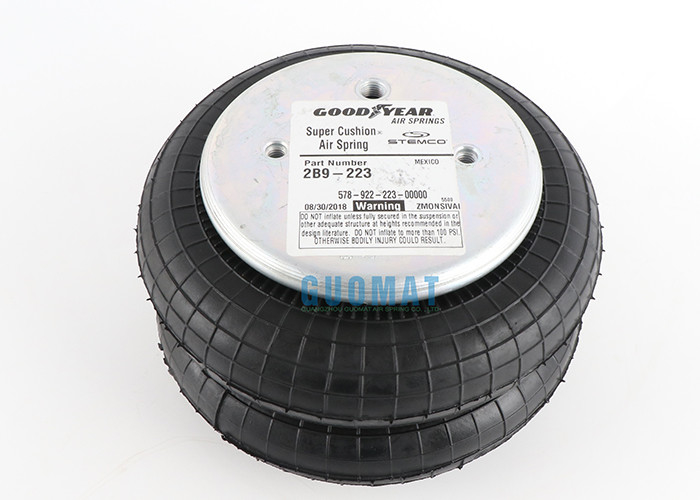

2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211

2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211
2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211 2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211 2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211 2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211 2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211

Large Image :  2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211 Get Best Price

Product Details:

Place of Origin: Guangdong,China
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 2B9-223

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W01 M58 6887
Gas Hole: 1/4 Screw Tooth: M10
Screw Center Distance: 89 Mm Cover Plate Diameter: 162.5 Mm
Pressure Ability: 0.2-0.8 M Pa Stroke: 75~260 Mm
Net Weight: 3.35 Kg Package Size: 24*24*24 CM
High Light:

2B9-2250

,

S09201NB

,

578-92-3-211

2B9-223 Goodyear Replaces 2B9-2250 / Springride S09201NB FLEXIBLE MEMBER 578-92-3-211

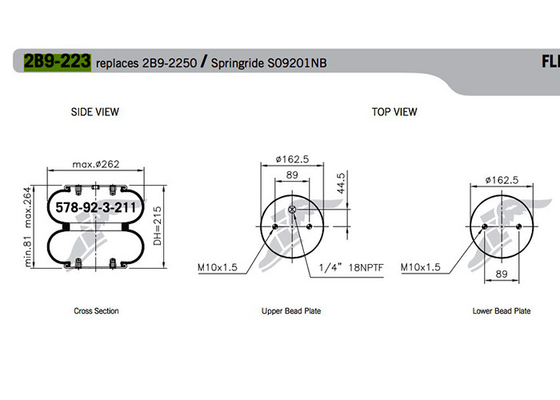

Goodyear 2B9-223 Technical parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2 pcs X M10

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10

Screw Center Distance of Bottom Cover Plate : 89 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4

Screw Center Distance Between Gas Hole and Nut : 44.5 mm



Cover Plate

Top Cover Plate Diameter: 162.5 mm

Bottom Cover Plate Diameter: 162.5 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 260 mm

Minimum Height :75mm

Stroke Height : 285 mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Goodyear 2B9-223 Cross others OEM



OEM

MERITOR (ROR)21221395 21222663

WEWELER US 06910F

COMPETITOR

Contitech
FD 200-19 1/4 M10

Firestone

W01 M58 6887 20
CF Gomma 206797 20

Vibracoustic

V SP 2 B 12 R-10

Phoenix

SP 2 B 12 R-10



2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211 0

2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211 1

2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211 2

2B9-223 Goodyear Air Spring 2B9-2250 S09201NB 578-92-3-211 3





Other kinds of FD 2B9 that GUOMAT have:







Part Number

Top Plate

Qty

Bottom Piston

Qty

Top Plate

Dia

Bottom Plate

Dia.

Collapsed

Height

Flexmember
2B9-229 1 1 162.56 162.56 73.66 578-92-3-211
2B9-245 1 1 162.56 162.56 96.52 578-92-3-202
2B9-218 1 2 162.56 162.56 88.9 578-92-3-206
2B9-230 1 2 162.56 162.56 96.52 578-92-3-202
2B9-246 2 1 162.56 162.56 96.52 578-92-3-211
2B12-304 2 1 228.6 228.6 86.36 578-92-3-309
2B12-411 2 1 228.6 228.6 88.9 578-92-3-309
2B12-412 2 1 228.6 228.6 106.68 578-92-3-309
2B9-244 2 2 162.56 162.56 96.52 578-92-3-202
2B9-252 2 2 162.56 162.56 96.52 578-92-3-206
2B9-254 2 2 162.56 162.56 96.52 578-92-3-206
2B9-265 2 2 162.56 162.56 96.52 578-92-3-206
2B9-266 2 2 162.56 162.56 96.52 578-92-3-208



57892220000000 57892220000000 20054259 Y 2B9-200 2B9-200
57892220000004 2B9-200 20094359 N 2B9-200 Bellows Air Spring 2B9-200 Bellows Air Spring
57892220000018 57892220000018 20094363 Y ENIDINE YI-2B9-200 ENIDINE YI-2B9-200
57892220000019 57892220000019 20094364 Y ENIDINE YI-2B9-200 ENIDINE YI-2B9-200
57892220000027 57892220000027 20142473 Y 2B9-200 2B9-200
57892220000038 57892220000038 20491818 Y 2B9-200 HENDRICKSON B-8768 2B9-200 HENDRICKSON B-8768
57892220000055 2B9-200 MDC 20837711   2B9-200 MDC 2B9-200 MDC
57892220100000 57892220100000 20094371 Y 2B9-201 2B9-201
57892220100004 2B9-201 20035779 N 2B9-201 Bellows Air Spring 2B9-201 Bellows Air Spring
57892220100019 57892220100019 20094375 Y ENIDINE YI-2B9-201 ENIDINE YI-2B9-201
57892220400000 57892220400000 20094388 Y 2B9-204 2B9-204
57892220400004 57892220400004 20116429 Y 2B9-204 2B9-204
57892220400019 57892220400019 20094391 Y ENIDINE YI-2B9-204 ENIDINE YI-2B9-204
57892220500000 57892220500000 20094392 Y 2B9-205 2B9-205
57892220500004 57892220500004 20116520 Y 2B9-205 2B9-205
57892220500019 57892220500019 20094393 Y ENIDINE YI-2B9-205 ENIDINE YI-2B9-205
57892220600000 57892220600000 20094395 Y 2B9-206 2B9-206
57892220600004 2B9-206 20094396 N 2B9-206 Bellows Air Spring 2B9-206 Bellows Air Spring
57892220630000 57892220630000 20099598 Y 2B9-206 2B9-206
57892220800000 57892220800000 20094409 Y 2B9-208 2B9-208
57892220800004 57892220800004 20116521 Y 2B9-208 2B9-208
57892220800019 57892220800019 20094410 Y ENIDINE YI-2B9-208 ENIDINE YI-2B9-208
57892221000000 57892221000000 20094411 Y 2B9-210 2B9-210
57892221000004 2B9-210 20035781 N 2B9-210 Bellows Air Spring 2B9-210 Bellows Air Spring
57892221000034 57892221000034 20112681 Y 2B9-210 Neway X-12844 2B9-210 Neway X-12844
57892221600000 57892221600000 20094417 Y 2B9-216 2B9-216
57892221600004 2B9-216 20116522 N 2B9-216 Bellows Air Spring 2B9-216 Bellows Air Spring
57892221600019 57892221600019 20094419 Y ENIDINE YI-2B9-216 ENIDINE YI-2B9-216
57892221800000 57892221800000 20094422 Y 2B9-218 2B9-218
57892221800004 2B9-218 20035782 N 2B9-218 Bellows Air Spring 2B9-218 Bellows Air Spring
57892222300000 57892222300000 20067192 N 2B9-223 METRIC 2B9-223 METRIC
57892222400000 57892222400000 20094430 Y 2B9-224 2B9-224
57892222500000 57892222500000 20035783 Y 2B9-225 2B9-225
57892222500004 2B9-225 20094432 N 2B9-225 Bellows Air Spring 2B9-225 Bellows Air Spring
57892222500019 57892222500019 20248277 Y ENIDINE 2B9-225 ENIDINE 2B9-225
57892222500029 57892222500029 20251574 Y 2B9-225 VIBRATECH 2B9-225 VIBRATECH
57892222500073 57892222500073 20131791 Y 2B9-225 NATIONAL STEEL 70604703 2B9-225 NATIONAL STEEL 70604703
57892222500074 57892222500074 20140152 Y 2B9-225 TTX 1999408 2B9-225 TTX 1999408
57892222600004 2B10-226 20094435 N 2B10-226 Bellows Air Spring 2B10-226 Bellows Air Spring
57892222800000 57892222800000 20094438 Y 2B9-228 2B9-228
57892222900000 57892222900000 20094439 Y 2B9-229 2B9-229
57892222900004 2B9-229 20067578 N 2B9-229 Bellows Air Spring 2B9-229 Bellows Air Spring
57892222900077 57892222900077 20215645 Y 2B9-229 WATSON & CHALIN AS0058 2B9-229 WATSON & CHALIN AS0058
57892222930000 57892222930000 20094444 Y 2B9-229 2B9-229
57892223000004 2B9-230 20067579 N 2B9-230 Bellows Air Spring 2B9-230 Bellows Air Spring
57892223400000 57892223400000 20067736 Y 2B9-234 METRIC 2B9-234 METRIC
57892223500000 57892223500000 20094446 Y 2B9-235 METRIC 2B9-235 METRIC
