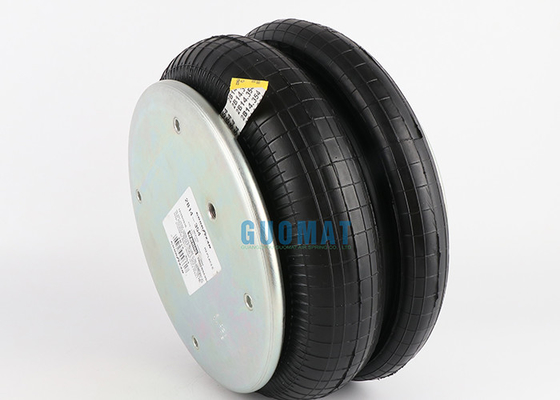

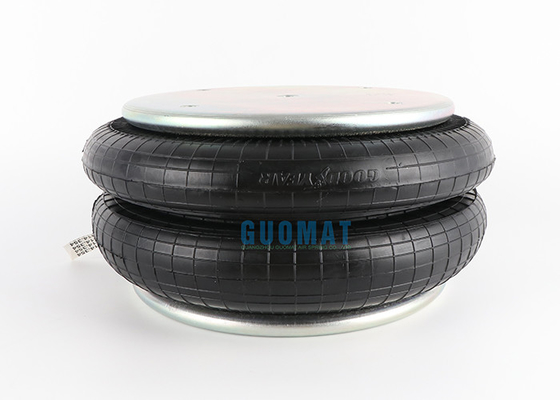

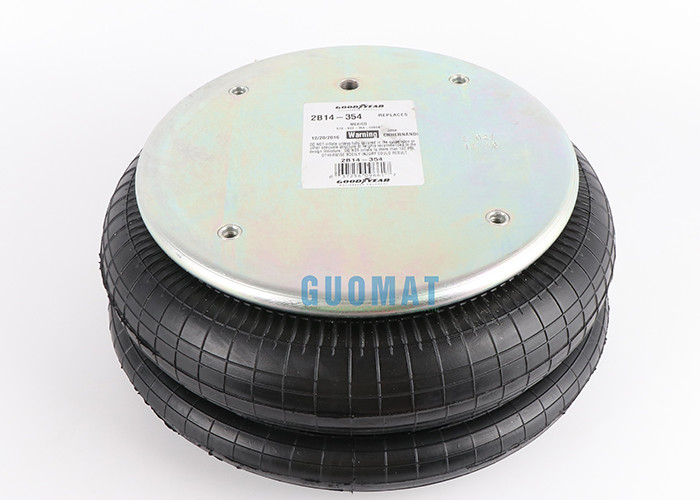

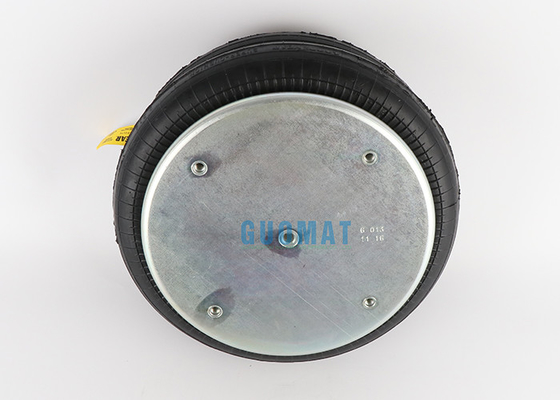

2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow

2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow
2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow 2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow 2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow 2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow 2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow

Large Image :  2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow Get Best Price

Product Details:

Place of Origin: Guangdong,China
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 2B14-354

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Goodyear Bellow NO.: 578923353
Goodyear: 2B14-354 Firestone: M-3505
Gas Hole / Air Inlet: 1/4NPT Cover Plate Diameter (Width): 289 Mm
Compressed Height: 104 Mm / 4.1 Inches G.W.: 9.7 KG
N.W.: 9.05KG Package Size: 38*38*22cm
High Light:

M-3505 Goodyear Air Spring Bellow

,

2B14-354

,

578-92-3-353

2B14-354 Industrial Air Spring Goodyear Bellow NO. 578-92-3-353 For BWP M-3505





Assembly Weight: 9.05kg

Operating Temperature: 57Cº to -54Cº

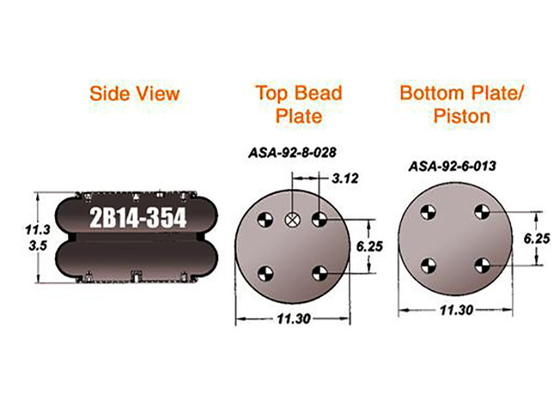

2B14-354 Goodyear Product parameters



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 159 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT

Center Distance Between Nut and Air inlet: 79.5 mm



Cover Plate

Top Cover Plate Diameter (Width): 289 mm

Bottom Cover Plate Diameter (Width): 289 mm



Rubber Bellows

Rubber Bellows MAX Diameter : 406 mm

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 391 mm

Working Stroke : 287mm



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





2B14-354 Goodyear Cross OEM



Firestone:W01-358-7145

Firestone:W01 358 7145

Firestone:W013587145

Conti Tech:FD 530-22 CI 1/4 NPT

Conti Tech:FD530-22 CI 1/4 NPT

Goodyear 2B14-350 ;2B14 350;2B14350

Goodyear 2B14-354;2B14 354;2B14354





Roof hole/stud: 5
Base plate hole/stud: 4
Top plate diameter: 11.3
Base plate diameter: 11.3
Collapse height: 3.5
Flexible members: 578-92-3-353
piston:
Piston type:-
Goodyear Trim: 2B14354
Crossover
Triangle spring: 4374
Firestone: 7145
Kangdi Technology: 64548
Reedwell: 1003587145C
batco: 10-97145
Goodyear Airlines: 2B14-350
Volvo/White/Car: 35203-0005
Volvo/White/Car: 35203-3204
Navistar / IHC: 554796C1
Mike: 57QL239
UCF / Impex: AB-2B14-354
Dallas Spring: AS7145
Midland / Haldex: CS214354
Euclid / Meritor Aftermarket: E-FS7145
ContiTech: FD530-22374
Euclid / Meritor Aftermarket: FS7145
BWP: M-3505
Hendrickson auxiliary equipment: S-13038
Reedwell: S4540C
Leland: SC2016



2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow 02B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow 12B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow 2



Part Number

Top Plate

Qty

Bottom Piston

Qty

Top Plate

Dia

Bottom Plate

Dia.

Collapsed

Height

Flexmember
2B14-383 2 2 287.02 287.02 106.68 578-92-3-356
2B14-367 2 4 287.02 287.02 106.68 578-92-3-353
2B14-366 2 4 287.02 287.02 124.46 578-92-3-353
2B14-354 5 4 287.02 287.02 88.9 578-92-3-353
2B14-360 5 4 287.02 287.02 88.9 578-92-3-353
2B14-469 5 4 287.02 287.02 91.44 556-23-8-329
2B14-476 5 4 287.02 287.02 91.44 578-92-3-356
2B14-470 5 4 287.02 287.02 96.52 578-92-3-356
2B14-356 5 4 287.02 287.02 106.68 578-92-3-353
2B14-359 5 4 287.02 287.02 106.68 578-92-3-353
2B14-363 5 4 287.02 287.02 106.68 578-92-3-356
2B14-365 5 4 287.02 287.02 106.68 578-92-3-356
2B14-462 5 4 287.02 287.02 106.68 578-92-3-356
2B14-473 5 4 287.02 287.02 111.76 578-92-3-353
2B14-355 5 4 287.02 287.02 124.46 578-92-3-353
