| Place of Origin: | Guangdong , China |
| Brand Name: | GOODYEAR |
| Certification: | ISO/TS16949 |
| Model Number: | 1R14-201 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | GOODYEAR: | 1R14-201 |
|---|---|---|---|
| Other Name: | Air Spring Shock | CONTITECH: | 67625 |
| Flexi Member: | 566-28-2-201 | USA: | Imported From USA |
| High Light: | 1R14-201,566282201 |
||

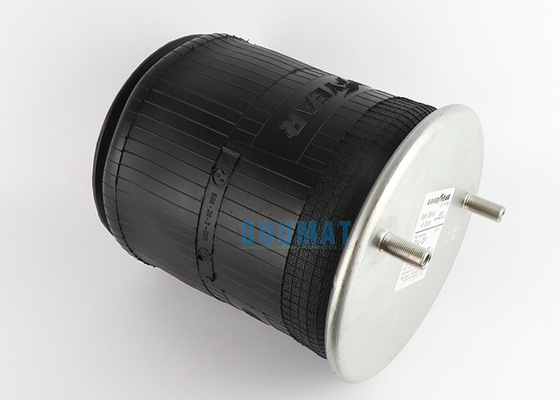

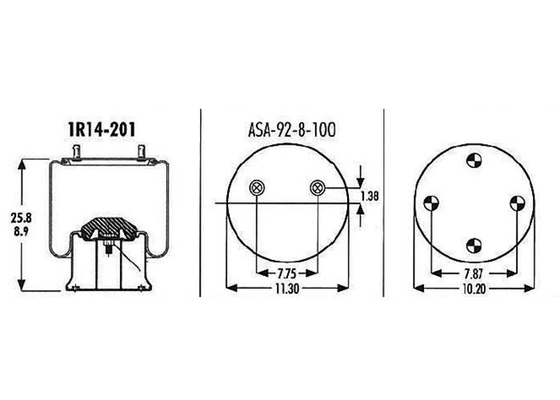

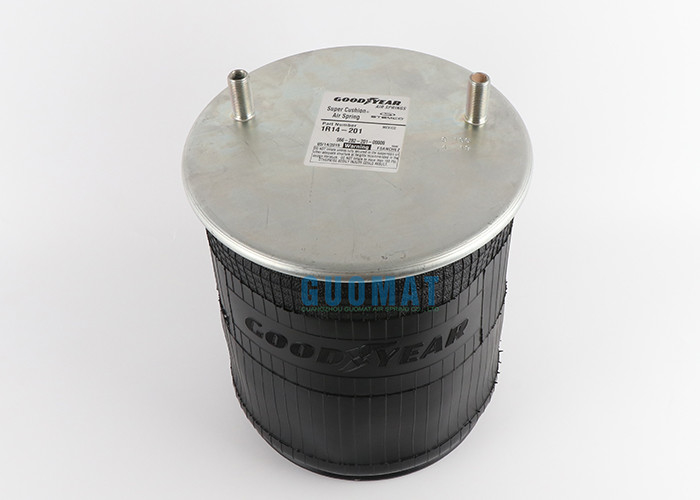

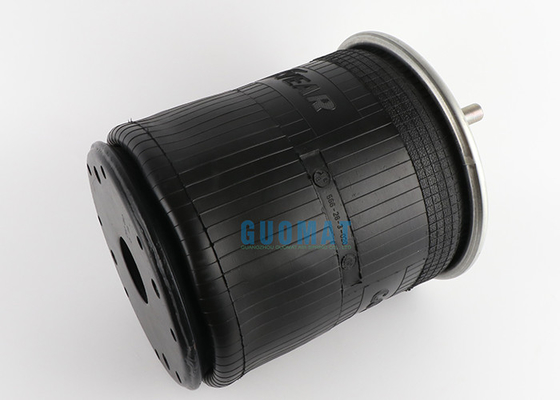

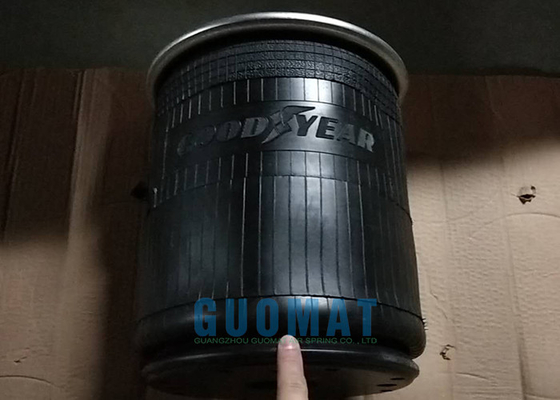

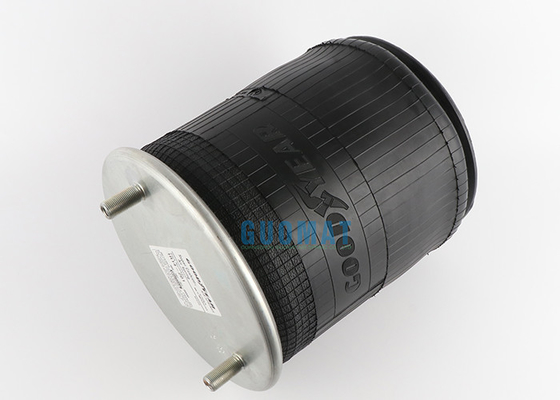

1R14-201 GOODYEAR Air Spring Flexi Member 566282201 Suspension Air Spring
OEM Cross Number:
GOODYEAR 1R14-201
Flexi Member 566282201
CONTITECH 11 10.5-21 A
965
67625
OEM Suspension Supplier Number:
The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT
❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.
❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

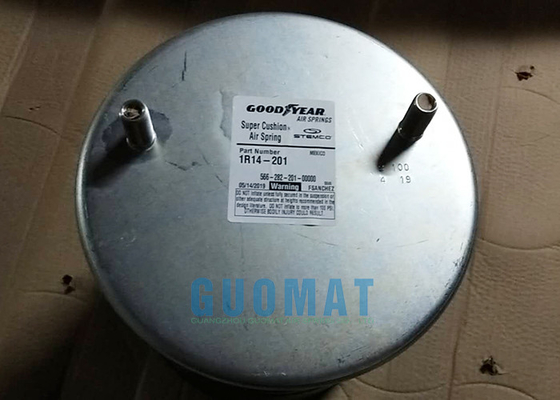

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

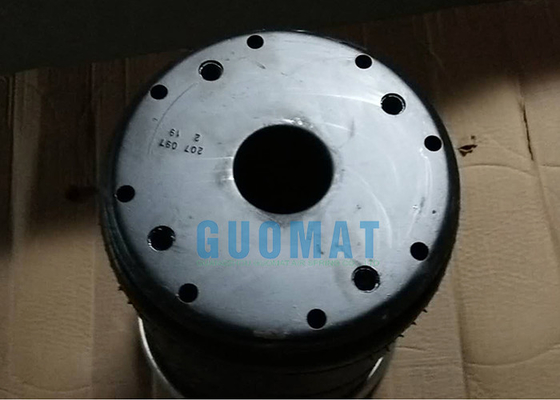

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.
❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
| Goodyear 14" 1R14 Diameter Rolling Lobe Air Springs | ||||||||
| Part Number |
Top Plate Qty |
Bottom Piston Qty |
Top Plate Dia |
Bottom Plate Dia. |
Collapsed Height |
Flexmember | Piston |
Piston Type |
| 1R14-018 | 5 | 4 | 11.3 | 10.2 | 7.7 | 566-28-3-021 | 566-20-7-096 | S |
| 1R14-019 | 5 | 4 | 11.3 | 10.2 | 8.9 | 566-28-3-020 | 566-20-7-097 | S |
| 1R14-024 | 5 | 4 | 11.3 | — | 7.7 | 566-28-3-021 | — | — |
| 1R14-025 | 5 | 4 | 11.3 | 10.2 | 8.9 | 566-28-3-020 | — | — |
| 1R14-026 | 5 | 4 | 11.3 | 10.2 | 7.3 | 566-28-3-021 | 566-20-7-096 | S |
| 1R14-027 | 5 | 4 | 11.3 | — | 7.3 | 566-28-3-021 | — | — |
| 1R14-028 | 5 | 4 | 11.3 | 10.2 | 7.7 | 566-28-3-021 | 566-20-7-096 | S |
| 1R14-029 | 5 | 4 | 11.3 | — | 7.7 | 566-28-3-021 | — | — |
| 1R14-030 | 5 | 4 | 11.3 | 10.2 | 8.9 | 566-28-3-020 | 566-20-7-097 | S |
| 1R14-031 | 5 | 4 | 11.3 | — | 8.9 | 566-28-3-020 | — | — |
| 1R14-037 | 5 | 4 | 11.3 | 11.8 | 5.7 | 566-28-3-015 | 566-20-7-076 | A |
| 1R14-038 | 5 | 4 | 11.3 | 11.8 | 5.7 | 566-28-3-015 | 566-20-7-076 | A |
| 1R14-039 | 2 | 4 | 11.3 | 11.8 | 5.7 | 566-28-3-015 | 566-20-7-076 | A |
| 1R14-042 | 2 | 4 | 11.3 | 11.8 | 5.7 | 566-28-3-015 | 566-20-7-076 | A |
| 1R14-045 | 2 | 4 | 11.3 | 10.2 | 8.9 | 566-28-3-020 | 566-20-7-097 | S |
| 1R14-052 | 2 | 4 | 11.3 | 11.8 | 5.7 | 566-28-3-015 | 566-20-7-076 | A |
| 1R14-060 | 2 | 4 | 11.3 | — | 8.9 | 566-28-3-020 | — | — |
| 1R14-101 | 5 | 4 | 11.3 | 10.1 | 8.8 | 566-28-3-021 | 566-20-7-080 | C |
| 1R14-106 | 3 | 4 | 11.3 | 9.5 | 5.5 | 566-28-3-021 | 566-20-7-188 | S |
| 1R14-112 | 2 | 1 | 11.3 | 10 | 4.9 | 566-28-3-024 | 566-20-7-050 | A |
| 1R14-113 | 2 | 4 | 11.3 | 10.1 | 9.5 | 566-28-3-030 | 566-20-7-181 | S |
| 1R14-115 | 5 | 4 | 11.3 | 10.2 | 8.9 | 566-28-3-021 | 566-20-7-097 | S |
| 1R14-124 | 5 | 4 | 11.3 | 10.1 | 8.8 | 566-28-3-021 | 566-20-7-217 | C |
| 1R14-127 | 2 | 4 | 11.3 | 10.1 | 10.1 | 566-28-3-031 | 566-20-7-181 | S |
| 1R14-130 | 2 | 4 | 11.3 | 10.2 | 7.2 | 566-28-3-021 | 566-20-7-096 | S |
| 1R14-137 | 2 | 4 | 11.3 | 10.2 | 7.2 | 566-28-3-021 | 566-20-7-096 | S |
| 1R14-141 | 3 | 4 | 11.3 | 9.5 | 9.7 | 566-28-3-021 | 566-20-7-189 | S |
| 1R14-147 | 2 | 4 | 11.3 | 11.8 | 5.6 | 566-28-3-015 | 566-20-7-076 | A |
| 1R14-154 | 2 | 4 | 11.3 | 10.2 | 8.9 | 566-28-3-020 | 566-20-7-097 | S |
| 1R14-159 | 2 | 4 | 11.3 | 10.2 | 7.7 | 566-28-3-021 | 566-20-7-096 | S |
| 1R14-160 | 2 | 4 | 11.3 | 10.2 | 8.4 | 566-28-3-021 | 566-20-7-097 | S |
| 1R14-170 | 2 | 4 | 11.3 | 10.2 | 8.9 | 566-28-3-020 | 566-20-7-097 | S |
| 1R14-172 | 2 | 1 | 11.4 | 9.9 | 5.9 | 566-28-3-042 | 566-20-7-152 | C |
| 1R14-174 | 2 | 4 | 11.3 | 10.2 | 8.9 | 566-28-3-020 | 566-20-7-097 | S |
| 1R14-175 | 2 | 4 | 11.3 | 11.8 | 5.1 | 566-28-3-042 | 566-20-7-076 | A |
