3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015

I'm Online Chat Now
Certification
China GUANGZHOU GUOMAT AIR SPRING CO. , LTD certification
China GUANGZHOU GUOMAT AIR SPRING CO. , LTD certification
GUOMAT has many types of air spring and can accurately meet our requirements. You have advantage price and professional service team.

—— Vlad from Russia

The air suspension spring have passed the test and they are fitting for our car model. Through the cooperation we are familiar with each other.

—— Eric from Southeast Asia

Thank you very much for your patience and prompt reply.GUOMAT gives me big help,delivery time is very fast.

—— Peter from European

You have been very professional in your sale,I am trying to expand my work in Italy if you are personally interested in making a profit.

—— Ivan from Italy

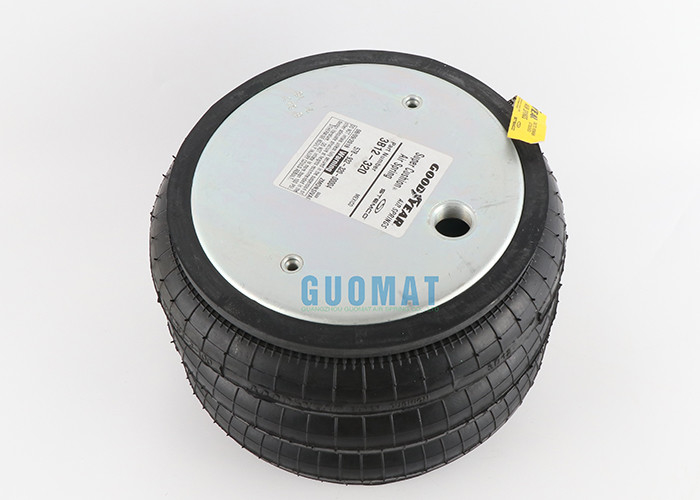

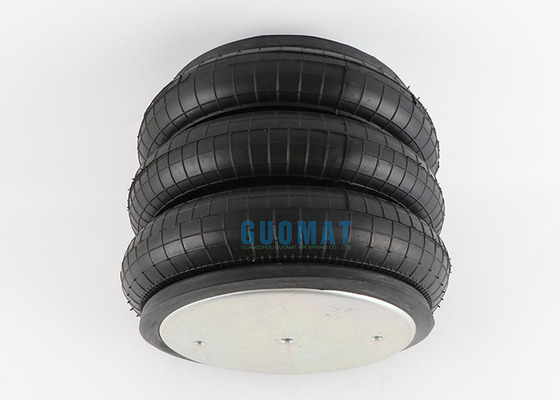

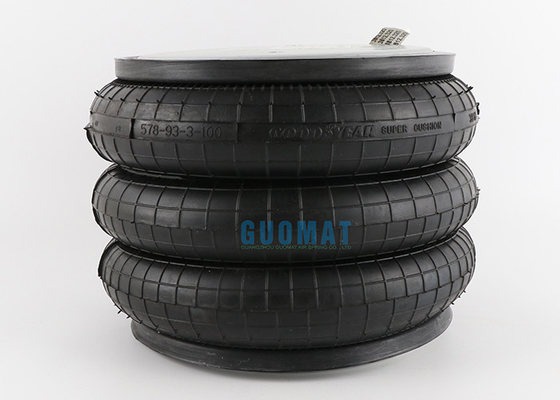

3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015

3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015
3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015 3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015 3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015 3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015

Large Image :  3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015 Get Best Price

Product Details:

Place of Origin: Guangdong,China
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 3B12-320

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Goodyear: 578 932 320 00004
Gas Hole: 1/4NPTF Screw Tooth: 1/2-13UNC
Screw Center Distance: 157 Mm Cover Plate Diameter: 228.6 Mm
Pressure Ability: 0.2-0.8 M Pa Stroke: 104~305 Mm
Net Weight: 7.5 Kg Package Size: 33 X 33 X 22 Cm
High Light:

3B12-320

,

578-93-3-100

,

90557015

3B12-320 Goodyear Original Air Spring Triple Convoluted Flexmember 578-93-3-100 For Neway 90557015





Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-320

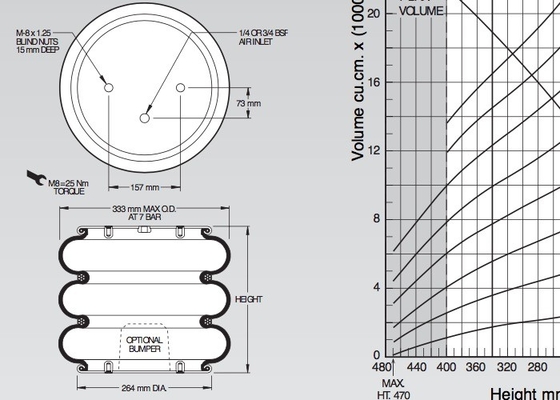

3B12-320 Goodyear Technical parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2 pcs X1/2-13UNC

Screw Center Distance of Top Cover Plate : 157 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC

Screw Center Distance of Bottom Cover Plate : 157 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm



Cover Plate

Top Cover Plate Diameter: 228.6 mm

Bottom Cover Plate Diameter: 228.6 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 325 mm

Rubber Bellows Natural Diameter : 300 mm

The Working Stroke : MIN 120 mm to MAX 457 mm

Maximum Height : 305 mm

Minimum Height :104 mm

Stroke Height : 201mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





3B12-320 Cross others OEM



Goodyear 3B12-320;3B12 320;3B12320
Goodyear 578-93-3-100 ;578 93 3 100;578933100
Flexmember 578 93 2 320;578-93-2-320;578932320
Firestone: W01-358-7437;W01 358 7437;W013587437
Contitech: FD 330-22 334;FD 330 22 334;FD33022334
Goodyear: 2B12-320
Ridewell: 1003587437C
Neway: 90557015





Goodyear® Goodyear air spring features


Goodyear® Goodyear air springs utilize the compressive elasticity of air, and are essentially different from metal springs such as leaf springs. It has excellent characteristics as a suspension spring. For example, the combined use with a control device keeps the height of the vehicle always constant or arbitrarily changed. It can also improve the vehicle's inclination by individually controlling the left and right air springs.


Modern road transportation places high demands on the comfort and efficiency of automobiles. STEMCO (Stemco) company's mission is to "make our roads safer", knowing user satisfaction, easy and comfortable user experience, is the foundation of the product, and fully consider commercial vehicles in product design The demanding requirements of trucks and customers, such as its super-buffered air springs, use the materials and design of the load to provide industry-leading vibration damping, light weight and long service life. In addition, the unparalleled comfort performance design makes the super-buffer air spring reduce driving fatigue, reduce parts wear and tear, shorten the failure time, and thus improve safety performance.



3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015 0

3B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015 13B12-320 Goodyear Air Spring 578-93-3-100 For Neway 90557015 2



Goodyear Triple Convolute Air Spring
Part Number

Top Plate

Qty

Bottom Piston

Qty

Top Plate

Dia

Bottom Plate

Dia.

Collapsed

Height

Flexmember
3B12-310 2 2 9 9 4.5 578-93-3-100
3B12-319 2 2 9 9 4.5 578-93-3-100
3B12-328 2 2 9 9 4.5 578-93-3-100
3B12-329 2 2 9 9 4.5 578-93-3-100
3B12-335 2 2 9 9 4.5 578-93-3-100
3B12-300 2 2 9 9 5.1 578-93-3-100
3B12-303 2 2 9 9 5.1 578-93-3-100
3B12-315 2 2 9 9 5.1 578-93-3-100
3B12-324 2 2 9 9 5.1 578-93-3-100
3B14-452 2 2 11.3 11.3 4.9 556-33-8-335
3B12-312 2 4 9 9 4.5 578-93-3-100
3B12-322 2 4 9 10.3 4.6 578-93-3-103
3B12-323 2 4 10.3 10.3 4.6 578-93-3-103
3B14-364 2 4 11.3 11.3 4.9 578-93-3-350
3B14-451 2 4 11.3 11.3 4.9 556-33-8-335
3B14-367 2 4 11.3 11.3 6 578-93-3-350
3B12-304 3 2 9 9 4.7 578-93-3-100
3B12-301 3 2 9 9 5.1 578-93-3-100
3B12-325 3 2 10.3 10.3 4.5 578-93-3-103
3B12-326 3 2 10.3 10.3 4.5 578-93-3-103
3B14-354 5 4 11.3 11.3 4.7 578-93-3-350
3B14-360 5 4 11.3 11.3 4.7 578-93-3-350
3B14-361 5 4 11.3 11.3 4.7 578-93-3-350
3B14-356 5 4 11.3 11.3 4.9 578-93-3-350
3B14-359 5 4 11.3 11.3 4.9 578-93-3-350
3B14-351 5 4 11.3 11.3 7.3 578-93-3-350
