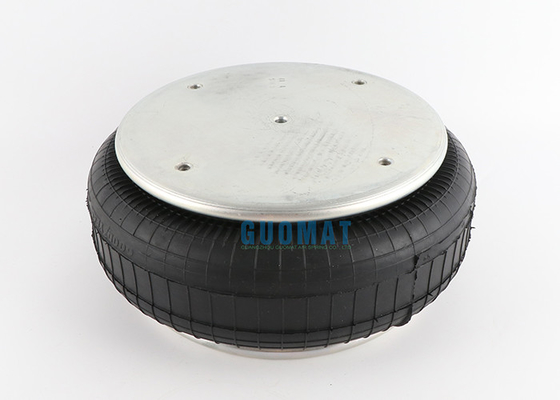

1B14-371 Goodyear Air Spring With 3/4 NPT Air Inlet M8 Bolts 578 912 371

Name: 1B14-371 Goodyear Air Spring With 3/4 NPT Air Inlet M8 Bolts 578 912 371
Brand: Goodyear
SKU: 1B14-371
Rating: 4.8 (108 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	1B14-371

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber Steel	Goodyear:	1B14-371
Warranty:	One Year	Weight:	7.0 Kg
Other Names:	Air Vibration Industrial Shock	Pressure Ability:	0.2-0.8 M Pa
Rubber Bellows:	578912371	Air Inlet:	1/4 N P.T.F.
High Light:	1B14-371 , 3/4 NPT Goodyear Air Spring , 578 912 371

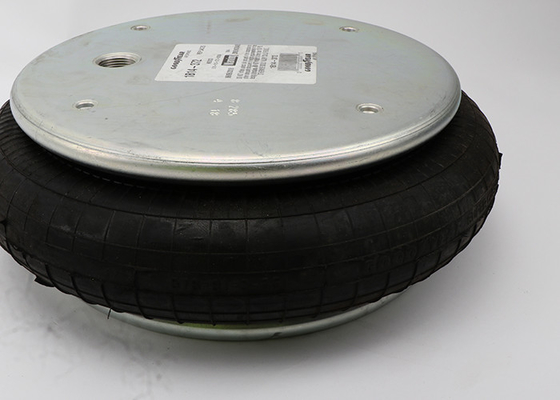

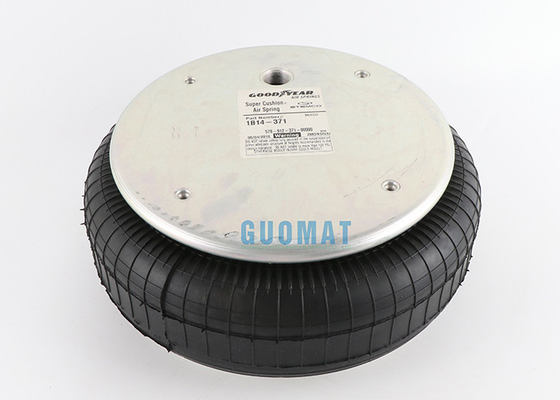

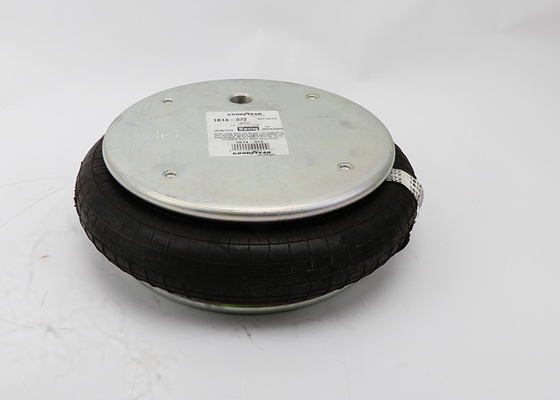

1B14-371 Goodyear Industrial Air Spring With 3/4 NPT Air Inlet M8 Bolts Bellows 578 912 371

1B14-371 Goodyear Specifications and Technical Data

Operating Temperature: 57Cº to -54Cº

Goodyear 1B14-371 ;1B14 371; 1B14371

Goodyear Bellows 578 912 371;578912371;578-91-2-371

Goodyear Bellows 578-91-3-352

UPPER BEAD PL ATE
ASA-92-8-285
LOWER BEAD PL ATE
ASA-92-6-085
FLEXIBLE MEVBER
ASD-91-3-352

Cross NO.:FS 530-14;FS53014;FS530-14

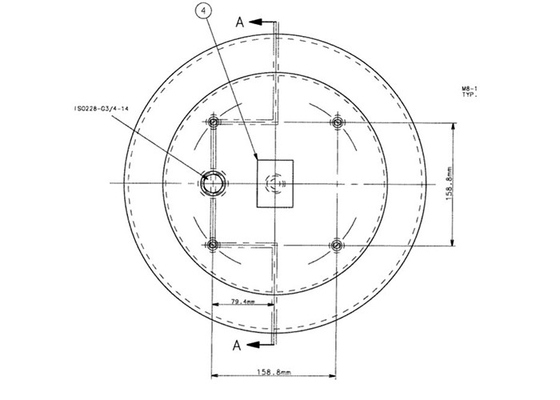

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :4pcsX M8

Screw Center Distance of Top Cover Plate :158.8 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX M8

Screw Center Distance of Bottom Cover Plate : 158.8 mm

Distance Gas Hole Between Nut 79.4 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4 N P.T.F.

❸ Cover Plate

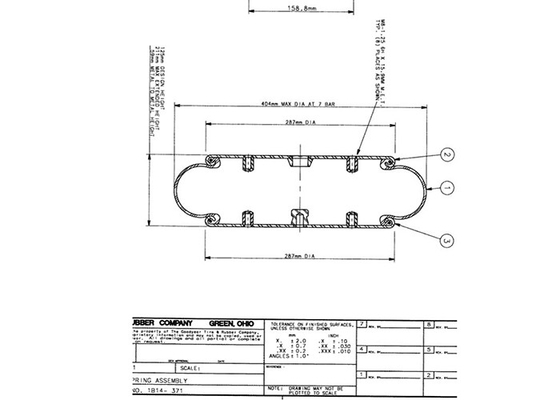

Top Cover Plate Diameter (Width): 289mm

Bottom Cover Plate Diameter (Width): 289 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter 380 mm

Rubber Bellows Max Diameter : 406 mm

Rubber Bellows Natural Height : 120 mm

The Working Stroke : MAX 160 mm to MIN 81 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Without Girdle Hoop

Vibration isolation - dynamic characteristic value Design height H: 5.91 inches recommended, minimum 4.72 inches
Pressure p [psi]	40	60	80	100	120	Vol. V [in.3]
Force (Load) [lbf]	3840	5800	7820	9830	11800	685
Spring rate [lbf/in.]	1980	2590	3280	4060	4630
Natural frequency [Hz]	2.2	2.1	2.1	2.0	2.0

Pneumatic Applications - Static Characteristics Force F [lbf]
Pressure p [psi]		40	60	80	100	120	Vol. V [in.3]
Height H [in.]	6.5	3340	5060	6840	8660	10500	740
	6.0	3760	5690	7650	9660	11600	690
	5.5	4140	6250	8380	10600	12700	650
	5.0	4450	6680	8960	11300	13500	610
	4.5	4720	7070	9460	11900	14300	560
	4.0	4940	7380	9870	12400	14900	510
	3.5	5120	7610	10200	12800	15300	450
	3.0	5260	7810	10500	13100	15700	380
	2.5	5350	7970	10700	13400	16000	300

The usal kinds of Single Convolution Air Actuator

Single Convolution Air Actuator
All Measurements Are In Mm
Goodyear NO.	Contitech NO.	Min. Design height	Installation Space Required	Max. Stroke

1B14-371	FS 530-14	51	420	134

Description OF Goodyear 1B14-371 :

The traditional method of fluidized bed damping mainly rubber pad, requiring a higher steel spring. However, both of these shock absorption methods fail to meet the needs of the end user. However, the introduction of "air spring isolation system" from abroad has enabled isolation rather than shock absorption. With its unique energy conversion Way, the vibration of the mechanical energy into internal energy, making 95 percent of the vibration are isolated, to achieve the true isolation effect.

Different types of fluidized bed, according to the overall weight of the fluidized bed to choose the appropriate bearing capacity of the air spring, and fluidized bed according to the length and width and height of the design of a specific installation, and air spring convenient installation, but also makes isolation System installation is much easier than installing a steel spring.
Airbag isolation, there are two control methods. One is a group (usually 4 or 6) airbag single one-way valve packing, like a car tire.

Pictures show the information includes:

Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values

1B14-371 FS 530-14.PDF
