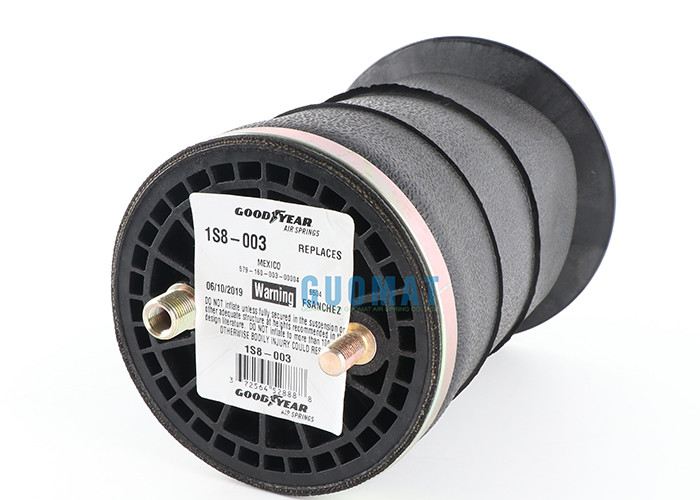

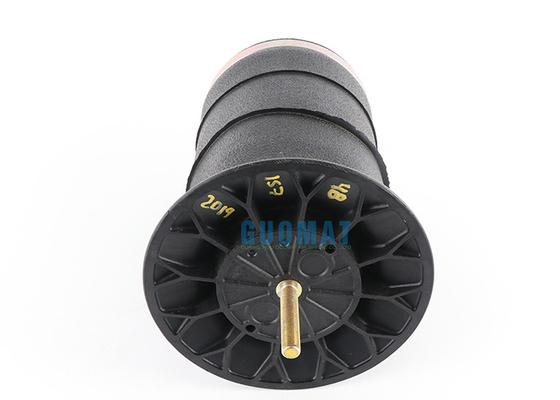

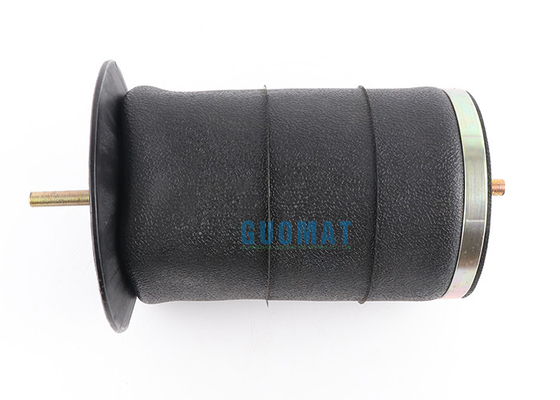

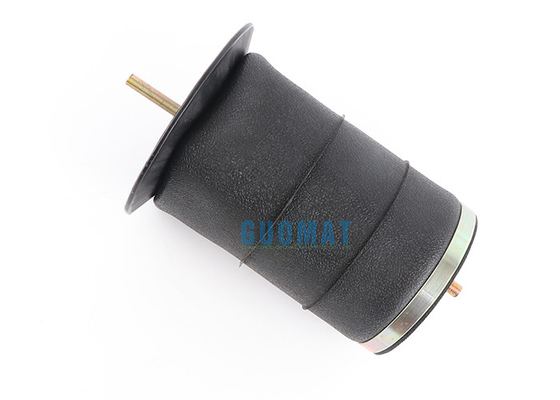

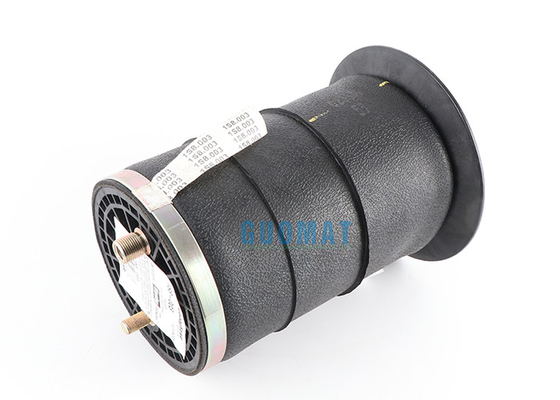

1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002

1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002
1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002 1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002 1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002 1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002 1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002 1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002

Large Image :  1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002 Get Best Price

Product Details:

Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1S8-003

Payment & Shipping Terms:

Price: Negotiable
Packaging Details: Strong Carton Box or as Customer's Require
Delivery Time: 2 - 8 Work Days
Payment Terms: T/T, Western Union,Paypal and Others
Supply Ability: 10000 pcs / week
Detailed Product Description
Main Material: Steel Rubber Position: Seat
Weight: 0.7KG Other Name: Air Spring
Car Make: TRUCK OEM: 1S8003
High Light:

Goodyear Cab Air Shock Sleeve

,

579-16-1-002

,

1S8-003

1S8-003 Goodyear Cab Air Shock Sleeve Style Air Spring Flexmember 579-16-1-002




Brand Goodyear
Item Weight 1.5 pounds / 0.7 KG
Package Dimensions 20.2 x 12.3 x 7.3 inches / 51 x 31 x 18.5 cm
Item model number 1S8-003
Exterior Smooth
Manufacturer Part Number 1S8003

Cross OEM NO.
Goodyear: 1S8-002
Goodyear: 1R8-036
Firestone:

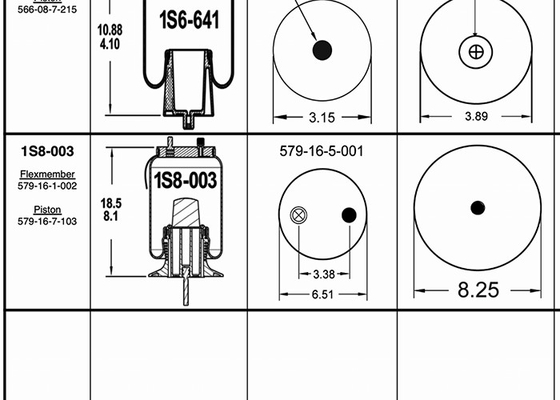

Goodyear #: 1S8-003
Top Plate Hole/Stud Qty: 2
Top Plate Dia: 6.51 inch
Top Plate C to C Diameter: 3.38
Bottom Plate Hole Stud Qyt: 1
Bottom Plate Dia: 8.25 inch
Min Height: 18.5 inch
Max Height: 8.1 inch

1S8-003

Flexmember 579-16-1-002

Piston 579-16-7-103




Product description

Goodyear sleeve air springs will use flexible parts without the need for internally molded beads. The flexible member is attached to the end of the retainer by clamping the material between the end and the external crimp ring, and then adjusting the outer crimp ring to an appropriate diameter. Goodyear sleeve airbag springs have many applications. The most common uses are passenger ride springs and trucks, isolators and springs for truck cab and seat springs, as well as many common industrial applications. 1S4-007 sets of sleeve air spring durability and service life of the length.


Goodyear product features:

Goodyear® Super Cushion® series and Spring Ride® series also have enhanced design, such as: high-strength base, anti-corrosion coating and innovative rubber chemical composition, etc., together giving Goodyear® SuperCushion® and Spring Ride® series air spring vibration isolation Performance and durability, helping its users' fleets reach new levels of operation and profitability. These two series of air springs are made of high-quality rubber materials.

Chemical additives injected into natural rubber provide excellent ozone resistance, effectively reduce flex cracking and extend service life. With a stable bracket, the non-extended design provides a more The safe air spring installation method can prolong the life and reduce vibration and coaxial deviation; and has a solid inner wall, and the high-strength, ultra-tight network cable makes the inner wall and the internal joint part extremely strong.



1S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002 01S8-003 Goodyear Cab Air Shock Sleeve 579-16-1-002 1



GOODYEAR SLEEVE AIR SPRINGS
Part Number

Top Plate

Qty

Bottom Piston

Qty

Top Plate

Dia

Bottom Plate

Dia.

Collapsed

Height

Piston
1S3-011 1 1 2.2 1.54 3.6 ASB-06-7-014
1S4-008 1 1 2.65 2.12 4 ASC-08-7-005
1S4-030 1 1 2.65 2.12 4 ASC-08-7-093
1S4-035 1 1 2.65 2.12 4 ASC-08-7-163
1S4-042 1 1 2.65 2.12 4 ASC-08-7-219
1S4-044 1 1 2.65 2.12 4 ASC-08-7-194
1S4-056 1 1 2.65 2.12 4 ASC-08-7-194
1S5-005 1 1 2.65 2.12 4 ASC-080-7-005
1S5-006 1 1 2.65 2.12 4 ASC-08-7-005
1S5-038 1 1 2.65 2.12 4 ASC-08-7-194
1S5-055 1 1 2.65 2.12 4 ASC-08-7-194
1S5-060 1 1 2.65 2.12 4 ASC-08-7-219
1S5-072 1 1 2.65 2.12 4 ASC-08-7-219
1S5-070 1 1 2.65 2.12 5.5 ASC-08-7-134
1S5-010 1 1 2.65 2.8 2.25 AS3-08-7-006
1S4-007 1 1 2.65 2.88 2.2 ASC-08-7-139
1S5-045 1 1 2.65 2.88 2.25 ASC-08-7-139
1S4-016 1 1 2.65 3.25 2.2 ASC-08-7-137
1S4-067 1 1 2.65 3.25 2.2 ASC-08-7-137
1S5-133 1 1 2.65 3.25 2.2 ASC-08-7-157
1S5-040 1 1 2.65 3.25 2.25 ASC-08-7-137
1S5-173 1 1 2.65 3.25 2.25 ASC-08-7-137
1S6-025 1 1 3.15 3.89 4.1 ASC-08-7-215
1S6-026 1 1 3.15 3.89 4.1 ASC-08-7-223
1S6-031 1 1 3.15 3.89 4.1 ASC-08-7-215
1S3-013 1 1 3.2 2.4 1.5 ASC-06-7-017
1S6-023 1 1 3.23 3.89 4.1 AS2-08-7-079
1S5-135 2 1 2.65 3.25 2.2 ASC-08-7-157
1S5-024 2 1 3.15 2.12 7 ASC-08-7-034
1S4-074 3 2 2.65 2.12 5.5 ASB-08-7-134
