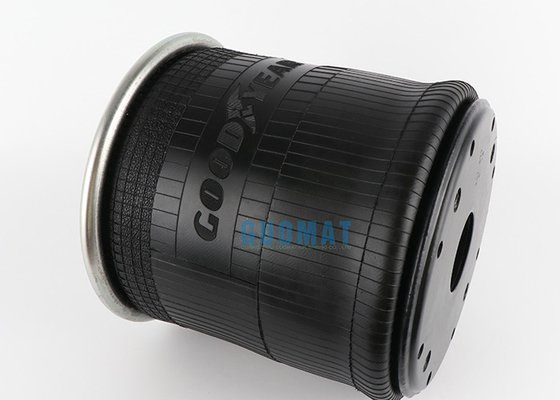

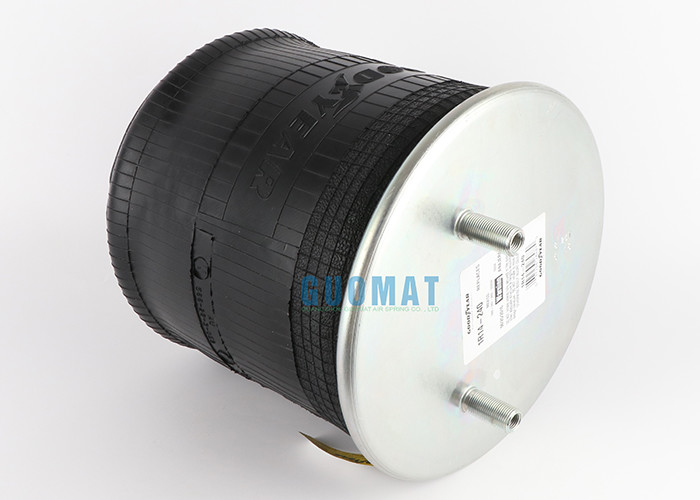

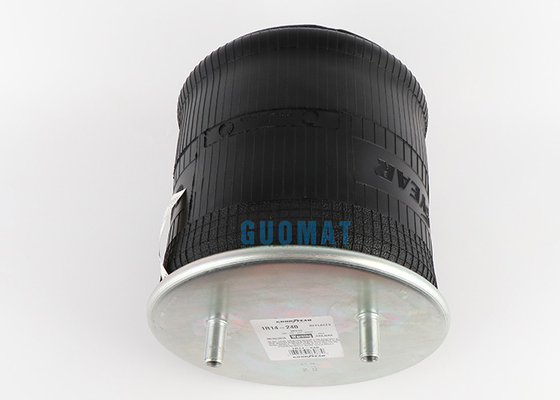

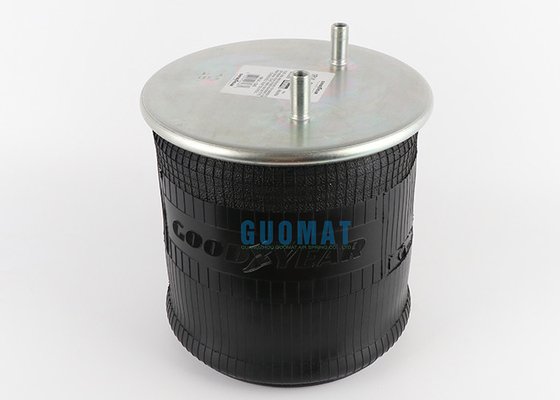

1R14-240 Goodyear Air Spring 566-28-3-059 Hendrickson S-24445

1R14-240 Goodyear Air Spring 566-28-3-059 Hendrickson S-24445
1R14-240 Goodyear Air Spring 566-28-3-059 Hendrickson S-24445

Large Image :  1R14-240 Goodyear Air Spring 566-28-3-059 Hendrickson S-24445 Get Best Price

Product Details:

Place of Origin: Guangdong , China
Brand Name: Goodyear
Certification: ISO/TS16949
Model Number: 1R14-240

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Detailed Product Description
Material: Rubber Bellows ,Steel Piston GOODYEAR: 1R14-240
Other Name: HENDRICKSON Air Spring Shock Flexmember: 566283021
HENDRICKSON: S-24445 Piston: 566-20-7-277
Flexible Members: 566-28-3-059
High Light:

1R14-240

,

566-28-3-059

1R14-240 Goodyear Air Spring Rolling Lobe Airbag 566-28-3-059 Truck Air Springs HENDRICKSON S-24445

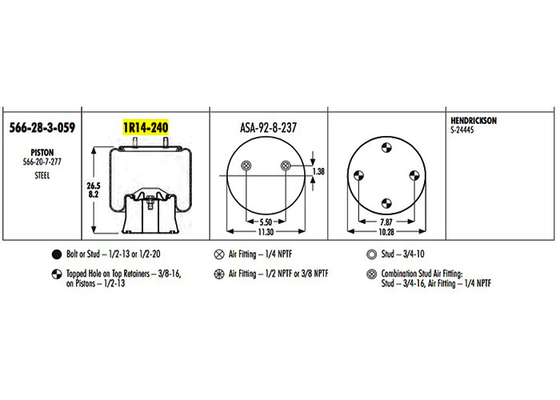

Goodyear 1R14-240 Specifications:



Roof hole/stud: 2 Combination Stud Air Fitting:
Stud – 3/4-16, Air Fitting – 1/4 NPTF
Base plate hole/stud: 4
Top plate diameter: 11.3
Base plate diameter: 10.28
Folding height: 7.7
Flexible members: 566-28-3-059
Piston: 566-20-7-277 STEEL
Piston type: S
Goodyear Trim: 1R14240





OEM Suspension Supplier Number:



HENDRICKSON S-24445

HENDRICKSON S 24445

HENDRICKSON S24445



1R14-240 Goodyear Air Spring 566-28-3-059 Hendrickson S-24445 0



The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT





screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.



Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.



Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.



Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.



Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.



Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.



Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
