W01-358-7469 Single Convoluted Air Spring GUOMAT 1H235118

I'm Online Chat Now
Certification
China GUANGZHOU GUOMAT AIR SPRING CO. , LTD certification
China GUANGZHOU GUOMAT AIR SPRING CO. , LTD certification
GUOMAT has many types of air spring and can accurately meet our requirements. You have advantage price and professional service team.

—— Vlad from Russia

The air suspension spring have passed the test and they are fitting for our car model. Through the cooperation we are familiar with each other.

—— Eric from Southeast Asia

Thank you very much for your patience and prompt reply.GUOMAT gives me big help,delivery time is very fast.

—— Peter from European

You have been very professional in your sale,I am trying to expand my work in Italy if you are personally interested in making a profit.

—— Ivan from Italy

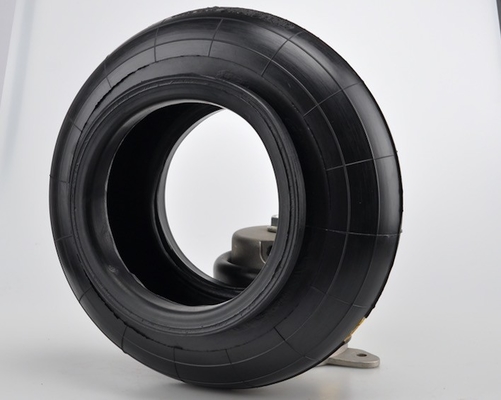

W01-358-7469 Single Convoluted Air Spring GUOMAT 1H235118

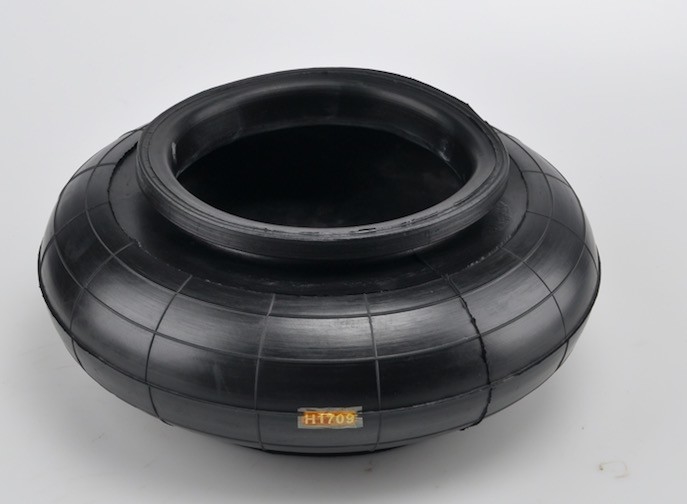

W01-358-7469 Single Convoluted Air Spring GUOMAT 1H235118

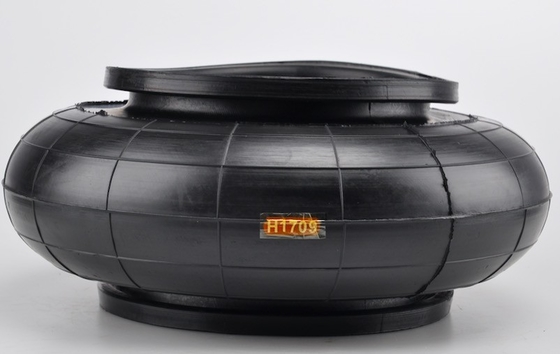

W01-358-7469 Single Convoluted Air Spring GUOMAT 1H235118

Large Image :  W01-358-7469 Single Convoluted Air Spring GUOMAT 1H235118 Get Best Price

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1H235118

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Detailed Product Description
Material: Rubber Steel FIRESTONE: W01-358-7469
Warranty: 12 Months Weight: 1.6 Kg
Other Name: Industrial Air Shock Pressure Ability: 0.2-0.8 M Pa
GUOMAT: 1H235118
High Light:

W01-358-7469

,

1H235118 Single Convoluted Air Spring

,

0.8 MPa Single Convoluted Air Spring

W01-358-7469 Single Convoluted Air Spring GUOMAT 1H235118 Rubber Bellows Style 115





Product Description

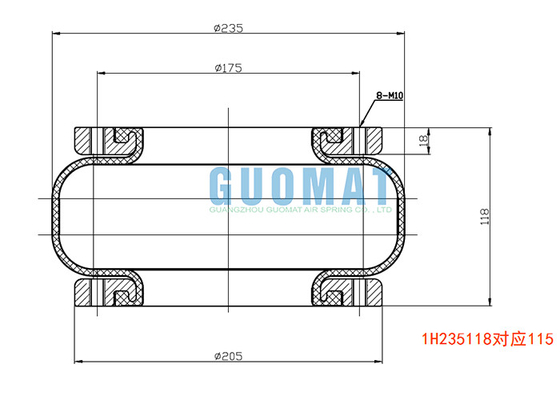

Technical Data



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 8 pcs X M10

Screw Center Distance of Top Cover Plate : 175 mm

Bottom Cover Plate Screw (Nut) Tooth : 8 pcs X M10

Screw Center Distance of Bottom Cover Plate : 175 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2NPTF

Screw Center Distance Between Gas Hole and Nut : 87.5 mm



Cover Plate

Top Cover Plate Diameter: 205 mm

Bottom Cover Plate Diameter: 1205 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 257 mm

Rubber Bellows Natural Diameter : 220 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50mm

Stroke Height : 90mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop

  • Min. pressure – 0 psi
  • Return force to min. height – <45LBF/200N
  • Overall Weight – 4.4LB
  • Min. Design Height – 2.01inch / 51MM
  • Inst.Space Required – 9.65inch / 245 MM
  • Max. Stroke – 3.9inch / 99MM



OEM Original Equipment Manufacturer:



BELLOW NO. COMPLETE NO.
AIRKRAFT 112005 AIRKRAFT 111006
CONTITECH FS 200-10 60319 CONTITECH FS 200-10 60030
FIRESTONE FLEX 115 FIRESTONE FLEX 115
FIRESTONE W01-358-0118 FIRESTONE W01-358-7469
W01 358 7469;W013587469
  BOSCH 822419009
  WEFORMA WBE 400-E2 / 410-E1





VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS





Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
Force (load) F [lbf] 981 1,530 2,040 2,570 3,090 124
Spring rate c [lbf/in] 701 1,000 1,290 1,560 1,870 124
Natural Frequency f0 [Hz] 2.7 2.7 2.6 2.5 2.5 124
Design height H: recommended 4.53 inch, minimum 3.94 inch





PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES



Force F [lbf]
Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
H 4.50 in. 939 1440 1920 2430 2950 120
H 4.00 in. 1120 1690 2260 2850 3430 110
H 3.50 in. 1250 1880 2530 3170 3850 96
H 3.00 in. 1370 2050 2760 3460 4170 83
H 2.50 in. 1450 2170 2930 3640 4410 68





Other kinds of air springs Models we can produce:


Style 115 Two Ply Bellows
Blind nuts, 1/4 BSP:W01-M58-6375;W01 M58 6375;W01M586375
Blind nuts, 1/4 BSP,rubber bumper:W0 -M58-6376,W01 M58 6376,W01M586376
Blind nuts, 3/4 BSP:W01-M58-6374;W01 M58 6374;W01M586374
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-6977;W01 M58 6977;W01M586977
Rubber bellows only:W01-358-0118;W01 358 0118;W013580118
Force to collapse to minimum height (@ 0 BAR):36 N.



Style:124 High Strength Con-struction
Blind nuts, 1/4 BSP:W01-M58-6181;W01M586181;W01 M58 6181
Blind nuts, 3/4 BSP:W01-M58-6182;W01M586182;W01 M58 6182





Contact Details
GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Contact Person: Linda Lin

Tel: +8613924100039

Send your inquiry directly to us
