| Place of Origin: | Guangdong , China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949 |
| Model Number: | 1R12-092 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | Goodyear: | 1R12-092 |
|---|---|---|---|
| Other Name: | Schmitz Suspension Air Spring | Cover Plate OD: | 228.6 MM |
| Air Inlet / Air Fitting: | M22 | Firestone: | W01-358-9082 |
| Ganning: | 15610 | Goodyear BELLOWS NUMBER: | 566243163 |
| High Light: | 1R12-092,566-24-3-163,W01-358-9082 |
||

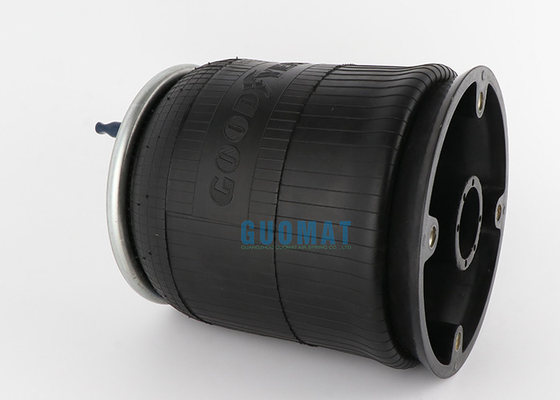

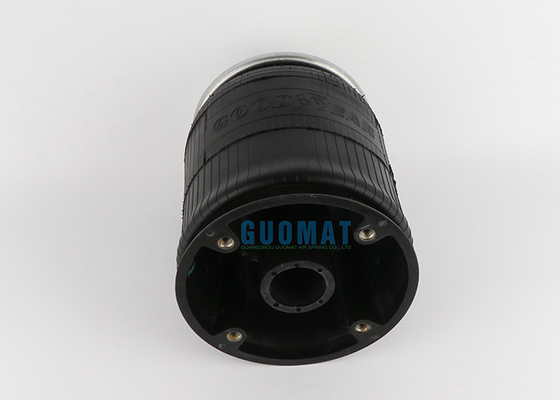

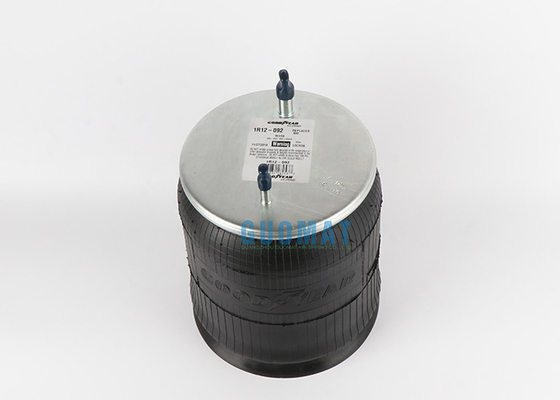

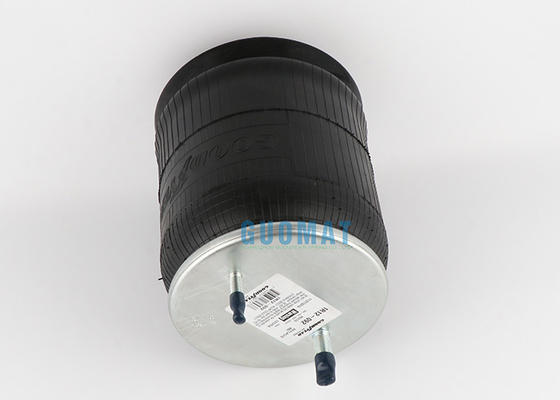

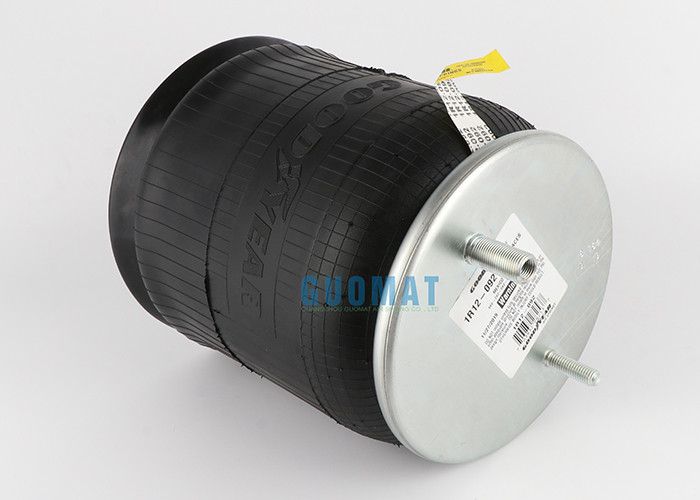

Goodyear 1R12-092 Truck Air Springs 566-24-3-163 Firestone W01-358-9082 For Ganning 15610
Goodyear 1R12-092 OEM Cross Number:
Goodyear 1R12-092;
Goodyear 1R12 092;
Goodyear 1R12092
Goodyear BELLOWS NUMBER:566243163;
Goodyear BELLOWS NUMBER:566-24-3-163;
Goodyear BELLOWS NUMBER:566 24 3 163
Firestone : W01-358-9082;
Firestone :W01 358 9082;
Firestone : W013589082
Contitech:910-16P 310;
Contitech 910 16P 310;
Contitech 91016P310
Taurus: KR 506-9082
Airtech: 132302
Airtech:341 56-05KPP
Goodyear 1R12-092 OEM Suspension Supplier Number:
SCHMITZ-ANHANGER 750999
Neway . 905 570 06127137/54175
Dayton:352-9082
Ganning:15610
HDA
PMABG9082B
R&S Truck
: 1090217
Loadguard
: Sc2035
Hutchens
: H-9630-01
Iriangle
L 8310
Watson&Chalin
: AS-0011
Ridewell
: 10035890820
RORIMeritor
: MLF7114
Hendrickson
: 36514-7/S11651
B 2066/B-12514-007
Goodyear 1R12-092 Technical data
Weight : 7,5 kg
K009
M10: max. 35 Nm
M12: max. 70 Nm
M22x1.5: max. 20 Nm
GOODYEAR 1R12-092 Contitech 64269, Hendrickson S11651 S2066, FS W01-358-9082,: Warranty: 1 year: Manufacturer Part Number: RML 79082: UPC: 714119424380: Item description. The BlackTech Airbag 9082 is designed to provide years and thousands of miles of trouble-free service and is backed by the best warranty in the industry.

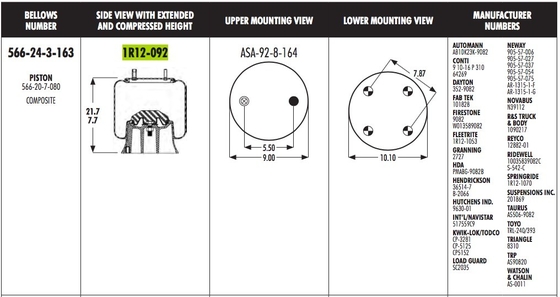

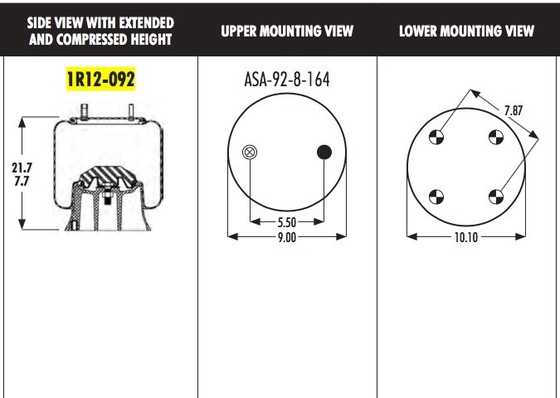

The drawing of Goodyear 1R12-092
| 1R12 12" DIAMETER ROLLING LOBE | ||||||||
| Goodyear 12" Diameter Rolling Lobe Air Springs | ||||||||
| Part Number |
Top Plate Qty |
Bottom Piston Qty |
Top Plate Dia |
Bottom Plate Dia. |
Collapsed Height |
Flexmember | Piston |
Piston Type |
| 1R12-014 | 2 | 1 | 7.7 | 10.1 | 7.8 | 566-24-3-019 | 566-20-7-011 | A |
| 1R12-028 | 2 | 2 | 7.5 | 10.12 | 7.1 | 566-24-3-024 | 566-20-7-079 | S |
| 1R12-047 | 2 | 1 | 7.7 | 10.1 | 7.8 | 566-24-3-019 | 566-20-7-011 | A |
| 1R12-066 | 2 | 4 | 9 | 10.1 | 6.5 | 566-24-3-038 | 566-20-7-080 | C |
| 1R12-069 | 3 | 1 | 9 | 9.8 | 7.5 | 566-24-3-038 | 566-20-7-235 | C |
| 1R12-090 | 2 | 2 | 9 | 10.1 | 6.5 | 566-24-3-038 | 566-20-7-079 | S |
| 1R12-092 | 2 | 4 | 9 | 10.1 | 7.7 | 566-24-3-038 | 566-20-7-080 | C |
| 1R12-093 | 2 | 2 | 9 | — | 7.7 | 566-24-3-038 | — | — |
| 1R12-095 | 2 | 1 | 9 | 9.25 | 4.4 | 566-24-3-067 | 566-20-7-014 | S |
| 1R12-097 | 2 | 1 | 9 | — | 4.4 | 566-24-3-067 | — | — |
| 1R12-103 | 2 | 4 | 9 | 10.13 | 9.4 | 566-24-3-066 | 566-20-7-006 | A |
| 56624210495004 | 1R12-1049 | 20672740 | N | 1R12-1049 Rolling Lobe Air Spring | 1R12-1049 Rolling Lobe Air Spring |
| 56624210500000 | 56624210500000 | 20682658 | Y | 1R12-1050 PREVOST 630285 | 1R12-1050 PREVOST 630285 |
| 56624210515000 | 56624210515000 | 20689480 | Y | VOL-VO 22039026 1R12-1051 | VOL-VO 22039026 1R12-1051 |
| 56624210515035 | 56624210515035 | 20689483 | Y | VOL-VO 22039026 1R12-1051 | VOL-VO 22039026 1R12-1051 |
| 56624210600000 | 56624210600000 | 20466778 | Y | 1R12-106 NOVABUS PROTOTYPE | 1R12-106 NOVABUS PROTOTYPE |
| 56624210600083 | 1R12-1060 | 20682283 | N | 1R12-1060 FLT1R12090 | 1R12-1060 FLT1R12090 |
| 56624210610083 | 1R12-1061 | 20682286 | N | 1R12-1061 FLT1R12095 | 1R12-1061 FLT1R12095 |
| 56624210655004 | 1R12-1065 | 20713600 | N | 1R12-1065 | 1R12-1065 |
| 56624210655084 | 1R12-1065 BULK | 20713089 | N | 1R12-1065 BULK | 1R12-1065 BULK |
| 56624210660000 | 56624210660000 | 20733971 | Y | 1R12-1066 PREVST 630286 Tag Blk Pck | 1R12-1066 PREVST 630286 Tag Blk Pck |
| 56624210660004 | 56624210660004 | 20697200 | Y | 1R12-1066 Prevost Tag Axle | 1R12-1066 Prevost Tag Axle |
| 56624210670000 | 56624210670000 | 20744274 | Y | 1R12-1067 | 1R12-1067 |
| 56624210695083 | 56624210695083 | 20682230 | Y | 1R12-1069 FLT1R12069 | 1R12-1069 FLT1R12069 |
| 56624210695085 | 1R12-1069 | 20746469 | N | 1R12-1069 SPRINGRIDE 1R12-069 | 1R12-1069 SPRINGRIDE 1R12-069 |
| 56624210705083 | 56624210705083 | 20682232 | Y | 1R12-1070 FLT1R12092 | 1R12-1070 FLT1R12092 |
| 56624210705085 | 1R12-1070 | 20746480 | N | 1R12-1070 SPRINGRIDE 1R12-092 | 1R12-1070 SPRINGRIDE 1R12-092 |
| 56624210715083 | 56624210715083 | 20768122 | Y | 1R12-1071 FLT1R12256 | 1R12-1071 FLT1R12256 |
| 56624210715085 | 1R12-1071 | 20746481 | N | 1R12-1071 SPRINGRIDE 1R12-256 | 1R12-1071 SPRINGRIDE 1R12-256 |
| 56624210725083 | 56624210725083 | 20682235 | Y | 1R12-1072 FLT1R12303 | 1R12-1072 FLT1R12303 |
| 56624210725085 | 1R12-1072 | 20746482 | N | 1R12-1072 SPRINGRIDE REPL 1R12-303 | 1R12-1072 SPRINGRIDE REPL 1R12-303 |
| 56624210735083 | 56624210735083 | 20682236 | Y | 1R12-1073 FLT1R12375 | 1R12-1073 FLT1R12375 |
| 56624210735085 | 1R12-1073 | 20746483 | N | 1R12-1073 SPRINGRIDE 1R12-375 | 1R12-1073 SPRINGRIDE 1R12-375 |
| 56624210745083 | 56624210745083 | 20682288 | Y | 1R12-1074 FLT1R12401 | 1R12-1074 FLT1R12401 |
| 56624210745085 | 1R12-1074 | 20746484 | N | 1R12-1074 SPRINGRIDE 1R12-401 | 1R12-1074 SPRINGRIDE 1R12-401 |
| 56624210755083 | 56624210755083 | 20682237 | Y | 1R12-1075 FLT1R12403 | 1R12-1075 FLT1R12403 |
| 56624210755085 | 1R12-1075 | 20746485 | N | 1R12-1075 SPRINGRIDE 1R12-403 | 1R12-1075 SPRINGRIDE 1R12-403 |
| 56624210765083 | 56624210765083 | 20682289 | Y | 1R12-1076 FLT1R12404 | 1R12-1076 FLT1R12404 |
| 56624210765085 | 1R12-1076 | 20746486 | N | 1R12-1076 SPRINGRIDE 1R12-404 | 1R12-1076 SPRINGRIDE 1R12-404 |
| 56624210775083 | 56624210775083 | 20768121 | Y | 1R12-1077 FLT1R12432 | 1R12-1077 FLT1R12432 |
| 56624210775085 | 1R12-1077 | 20746488 | N | 1R12-1077 SPRINGRIDE 1R12-432 | 1R12-1077 SPRINGRIDE 1R12-432 |
| 56624210785083 | 56624210785083 | 20768123 | Y | 1R12-1078 FLT1R12508 | 1R12-1078 FLT1R12508 |
| 56624210785085 | 1R12-1078 | 20746489 | N | 1R12-1078 SPRINGRIDE 1R12-508 | 1R12-1078 SPRINGRIDE 1R12-508 |
