Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B7145 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01-358-7145 |
---|---|---|---|
Goodyear: | 2B14-354 | Gas Hole / Air Inlet: | 1/4NPT |
Cover Plate Diameter (Width): | 289 Mm | Compressed Height: | 104 Mm / 4.1 Inches |
G.W.: | 9.7 KG | N.W.: | 9.05KG |
Package Size: | 38*38*22cm | ||
High Light: | W01-358-7145,S4540C Industrial Air Spring,1/4NPT Industrial Air Spring |
W01-358-7145 Industrial Air Spring Firestone Bellow NO. Style 21 For Reedwell S4540C
Assembly Weight: 9.05kg
Operating Temperature: 57Cº to -54Cº

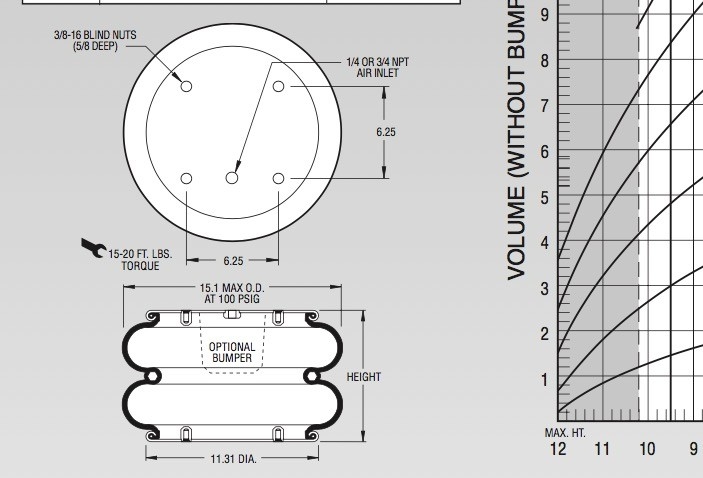

GUOMAT 2B7145 Product parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 289 mm
Bottom Cover Plate Diameter (Width): 289 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 406 mm
Compressed Height: 104 mm / 4.1 inches
Maximum Height: 391 mm
Working Stroke : 287mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Firestone:W01-358-7145
Firestone:W01 358 7145
Firestone:W013587145
Conti Tech:FD 530-22 CI 1/4 NPT
Conti Tech:FD530-22 CI 1/4 NPT
Goodyear 2B14-350 ;2B14 350;2B14350
Goodyear 2B14-354;2B14 354;2B14354
Roof hole/stud: 5
Base plate hole/stud: 4
Top plate diameter: 11.3
Base plate diameter: 11.3
Collapse height: 3.5
Flexible members: 578-92-3-353
piston:
Piston type:-
Goodyear Trim: 2B14354
Crossover
Triangle spring: 4374
Firestone: 7145
Kangdi Technology: 64548
Reedwell: 1003587145C
batco: 10-97145
Goodyear Airlines: 2B14-350
VOL-VO/White/Car: 35203-0005
VOL-VO/White/Car: 35203-3204
Navistar / IHC: 554796C1
Mike: 57QL239
UCF / Impex: AB-2B14-354
Dallas Spring: AS7145
Midland / Haldex: CS214354
Euclid / Meritor Aftermarket: E-FS7145
ContiTech: FD530-22374
Euclid / Meritor Aftermarket: FS7145
BWP: M-3505
Hendrickson auxiliary equipment: S-13038
Reedwell: S4540C
Leland: SC2016
Style 21 Two Ply Bellows
Blind nuts, 1/4 NPT:W01-358-7145;W01 358 7145;W013587145
Blind nuts, 1/4 NPT, bumper:W01-358-7146;W01 358 7146;W013587146
Blind nuts, 3/4 NPT:WO1-358-7143;W01 358 7143;W013587143
Blind nuts, 3/4 NPT, bumper:W01-358-7144;W01 358 7144;W013587144
Countersunk steel bead rings,1+3/4 bolts, nuts, washers:W01-358-7139;W01 358 7139;W013587139
Rubber bellows only:WO1-358-0213;W013580213;W01 358 0213
Style 205 High Strength Bellows
Blind nuts, 1/4 NPT:WO1-358-7208;W01-358-7208;W013587208
Blind nuts, 1/4 NPT, bumper:WO1-358-7221;W01-358-7221;W013587221
Blind nuts, 3/4 NPT:WO1-358-7224;W01-358-7224;W013587224
Countersunk steel bead rings,1+3/4 bolts, nuts, washers:WO1-358-7237;W01-358-7237;W013587237
Rubber bellows only:WO1-358-7929;W01-358-7929;W013587929
