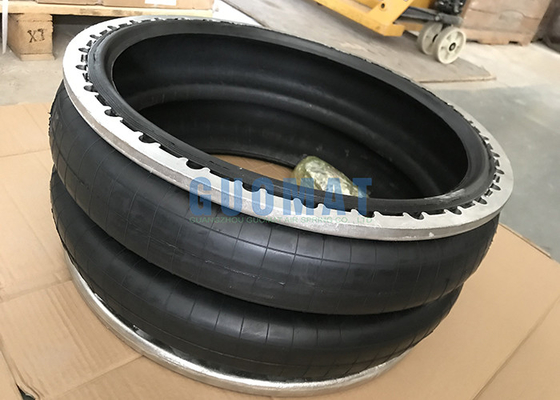

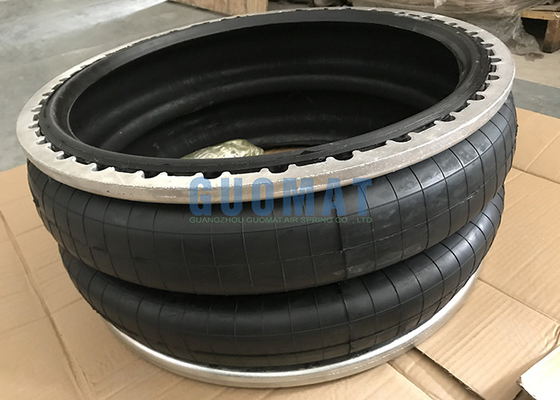

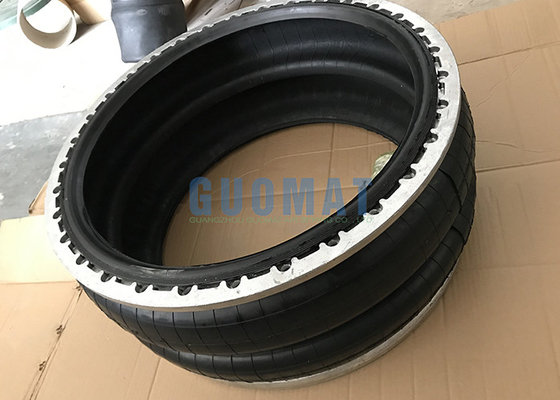

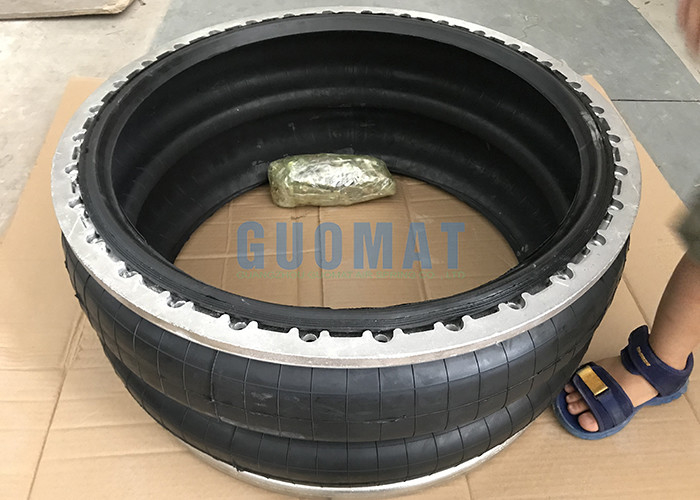

W01-358-7912 638mm Flange Ring Air Spring W01-M58-6978 For Stamping Press Cushions in Automotive Plants

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6978

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Aluminum Alloy And Rubber	Firestone:	W01-M58-6978
Warranty:	12 Months	Net Weight:	17.5 KG
Pressure Ability:	0.2-0.8 M Pa	Gross Weight:	19.5 KG
Flange Ring:	Without	Connection Method:	Flange Ring
Flange Ring Size:	638 Mm	BOLT CIRCLE DIA:	596 Mm
Highlight:	W01-358-7912 , W01-M58-6978 , 638mm Flange Ring Air Spring

W01-358-7912 Flange Ring Air Spring W01-M58-6978 Style 215 High Strength Con- struction

Industrial Triple Convoluted Air Spring Specifications

Manufacturer Part Number	Short Description W01-M58-6978, W01M586978, WO1-M58-6978, WO1M586978	Bead ring Type	4
Maximum Diameter @ 7 Bar (mm)	707	Dim# C (Bolt Circle Diameter mm)	597
Maximum Height (mm)	84	# of Bolts (each ring)	32
Maximum Stroke (mm)	284	Design Height (mm)	381
Minimum Usable Height (mm)	368	3 Bar (kN)	78.5
25 mm (kN)	174.6	5 Bar (kN)	132.9
50% of Max Stroke (kN)	150	7 Bar (kN)	187.9
Maximum Stroke (kN)	106.5	Natural Frequency (@5 Bar)(fn(Hz)	1.2
Applicable Technigram	113	7 Hz	97
Material	2-Ply, High Strength Cord	13 Hz	99.3
		25 Hz	99.8

GUOMAT 2B6978 Cross OEM

GUOMAT: 2B6978

Firestone:Style 215
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers
Firestone W01-M58-6978;

Firestone W01 M58 6978;

Firestone W01M586978;

Two Ply Bellows
Rubber bellows only
Firestone W01-358-7912;

Firestone W01 358 7912;

Firestone W013587912

GUOMAT AIR SPRING MODEL TYPE
LHF Type Air Spring	HF Type Air Spring	GF Type Air Spring	JBF Type Air Spring	ZF Type Air Spring
LHF100/166-2	HF80/90-1	GF40/60-1	JBF75/106-2	ZF120/122-2
LHF100/166-2	HF80/142-2	GF100/140-2	JBF80/142-2	ZF159/128-2
LHF100/238-3	HF95/70-1	GF100/166-2	JBF82/142-2	JBF220/310-3
LHF150/212-2	HF100/166-2	GF100/238-3	JBF98/101-1	JBF230/120-1
LHF150/304-3	HF100/238-3	GF120/102-1	JBF100/166-2	BF230/140-2
LHF200/212-2	HF104/66-1	GF150/206-2	JBF100/238-3	BF230/218-2
LHF200/304-3	HF115/77-1	GF150/298-3	JBF105/58-1	BF230/316-3
LHF230/120-1	HF120/132-2	GF200/206-2	JBF112/86-1	BF240/100-1
LHF230/218-2	HF125/112-1	GF200/298-3	JBF120/132-2	BF240/165-2
LHF230/316-3	HF150/140-2	GF230/206-2	JBF125/112-1	BF250/255-2
LHF250/255-2	HF170/120-1	GF230/298-3	JBF125/228-2	BF250/218-2
LHF250/218-2	HF174/126-1	GF250/206-2	JBF126/168-2	BF250/316-3
LHF250/316-3	HF180/156-1	GF250/298-3	JBF132/100-1	JBF256/92-1
LHF256/92-1	HF180/152-2	GF280/206-2	JBF150/140-2	JBF256/166-2
LHF256/166-2	HF190/170-2	GF280/298-3	JBF150/212-2	JBF264/90-1
LHF280/218-2	HF190/248-3	GF300/218-2	JBF150/304-3	JBF280/218-2
LHF280/316-3	HF192/140-2	GF300/316-3	JBF156/113-1	JBF280/316-3
LHF300/218-2	HF208/90-1	GF320/120-1	JBF156/195-2	BF284/272-2
LHF300/316-3	HF230/116-1	GF320/215-2	JBF160/216-2	JBF290/105-1
LHF320/186-2	HF230/120-1	GF320/310-3	JBF160/230-2	JBF300/255-2
LHF320/240-2	HF230/140-2	GF400/215-2	JBF170/120-1	JBF300/218-2
LHF320/350-3	HF240/100-1	GF400/310-3	JBF174/126-1	JBF300/316-3
LHF340/226-2	HF240/165-2	GF440/215-2	JBF174/232-2	JBF310/160-1
LHF400/218-2	HF250/255-2	GF440/310-3	JBF180/152-2	JBF320/186-2
LHF400/316-3	HF264/90-1	GF500/220-2	JBF180/156-1	JBF320/240-2
LHF440/218-2	HF290/105-1	GF500/320-3	JBF190/170-2	JBF320/350-3
LHF440/316-3	HF300/255-2	GF500/420-4	JBF190/248-3	JBF340/226-2
LHF500/220-2	HF310/160-1	GF580/262-2	JBF192/140-2
LHF500/320-3	HF320/203-2	GF580/384-3	JBF200/212-2
LHF580/262-2			JBF200/304-3
LHF580/384-3			JBF208/90-1
