YS-210-2V Industrial Air Spring Gu'an Shock Absorber

YS-210-2V YS-Air Industrial Air Spring Gu'an Shock Absorber For Papermaking Equipment​

Specifications and Detail Technical Parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :  4pcs X M8

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

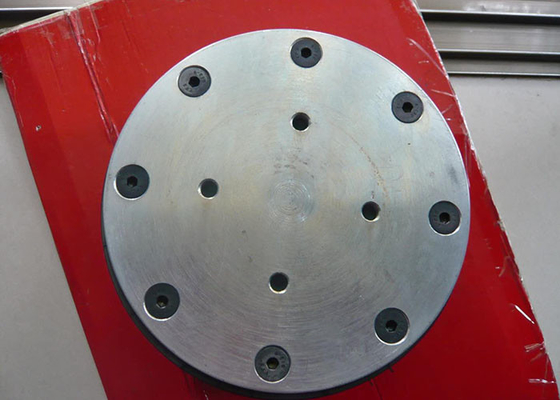

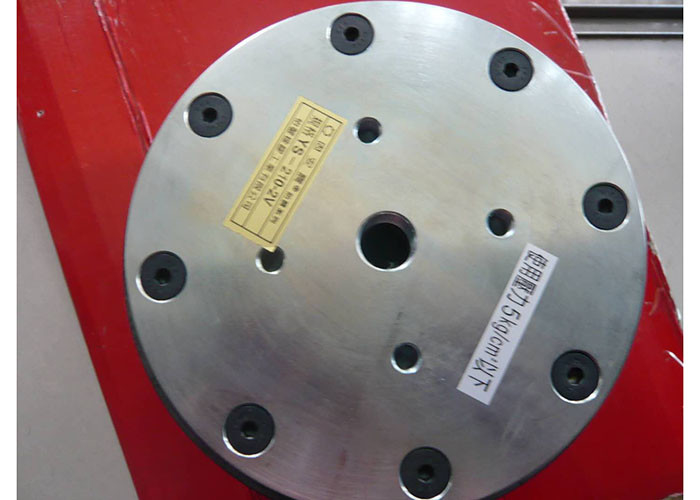

❸ Cover Plate

Top Cover Plate Diameter (Width): 153.5 mm

Bottom Cover Plate Diameter (Width): 153.5 mm

Material top and bottom plate:Aluminium

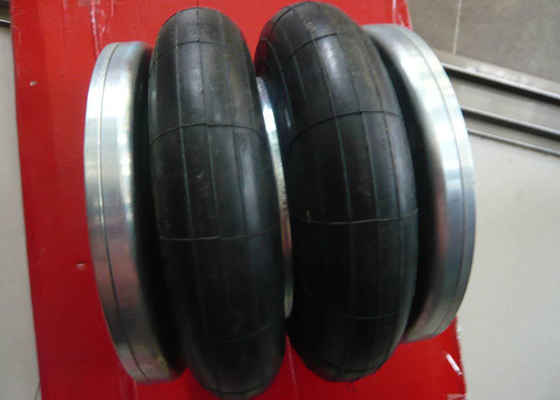

❹Rubber Bellows

Diameter max at 7 bar:175MM

Stroke of Rubber Bellows:80mm-195m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

max load at 80 mm height and 8 bar:1415 daN

OEM References:

YS-AIR: YS-210-2V

YS-AIR:YS 2102V

YS-AIR:YS2102V
Firestone: WO1-R58- -4055

Firestone:W01 R58 4055

Firestone:W01R584055
Firestone Style: 8" x2/8"x2/8x2

ContiTech: FD 138-181/2 M10
ContiTech: FD 138-18 DS 1/2 M10
ContiTech: FD 138-18 DS G1/2
ContiTech: FD 138-18 DS G1/2 M10
ContiTech: FD 138-18 DS G1/2 CR
ContiTech: FD 138-18 DS CR G1/2
ContiTech: FD 138-18 DS/ FD138-18DS 1 FD13818DS
ContiTech Bellow: FD 138-18 1 FD138-18/ FD13818
Goodyear: 2B8-2150

Goodyear:2B8 2150

Goodyear:2B82150
Goodyear Flex No.: 578-92-3-2150

Goodyear Flex No.:57892 3 2150

Goodyear Flex No.:5789232150
Springride: 2B8 -2150 1 2B82150 /2B82150
Springride Flex No.: 578-92-3-2150;578923 2150;5789232150
Dunlop FR: SP1490
Dunlop FR: SP918
Dunlop UK (Pneuride): PNP 30550 01 12 1 PNP305500112
Norgren: M/31082 1 M 31082 1 M31082
WEFORMA: WBZ-G 350 1 WBZ-G350 1 WBZG350
Airtech: 113060
Airtech Ref.: 2B-200 12B 200 12B200
Prime- Ride New: 2B8-2150 1 2B82150 12B82150
Prime- Ride New Flex No.: 578- 92-3-2150/ 578 92 32150/
5789232150

GUOMAT Air Spring Refer to YS-V AIR SPRINGS​ model air bellows:
