| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9-202 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 2B9-202 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
| Screw Center Distance: | 89 Mm | Cover Plate Diameter: | 160 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 75~260 Mm |
| Net Weight: | 3.35 Kg | Package Size: | 24*24*24 CM |
| High Light: | 578923202,2B9-202 Goodyear Air Spring,2B9-202 Double Convoluted Air Bags |
||

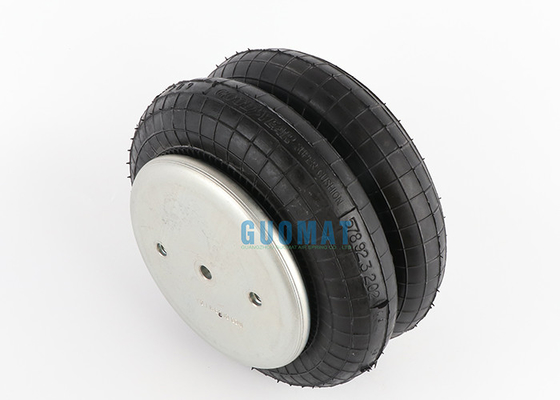

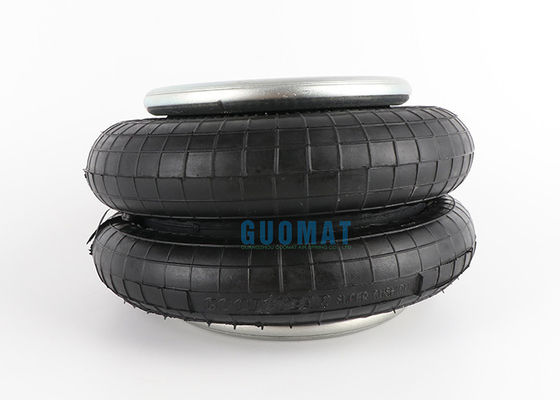

2B9-202 Goodyear Air Spring 578923202 Double Convoluted Air Bags Refer to Contitech FD200-19 For Scissor Lifts
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.35 kilograms
Package size: 24*24*24 CM
Model: 2B9-202
2B9-202 Goodyear Air Spring Technical parameters
❶Nut / Blind Nut
Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
Screw center distance of bottom cover plate: 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Maximum diameter of rubber bellows: 251 mm
Natural diameter of rubber bellows: 224 mm
Working stroke: minimum 75 mm to maximum 260 mm
Maximum height: 274 mm
Minimum height: 95mm
Stroke height: 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
2B9-200 Goodyear Air SpringCross others OEM
| OEM Reference | OEM Reference |
|
Goodyear:2B9-202 Goodyear:578 92 3 202 Goodyear:578923202 |
Taurus: AS218-6910 |
| Triangle Spring: 4320 | Dallas Spring: AS6910 |
|
Firestone: 6910 Firestone:W01-358-6910 Firestone:W01 358 6910 Firestone:W013586910 |
Sirco: AS-6910 |
| ContiTech: 64267
ContiTech:FD 200-19 CI 1/4 NPT ContiTech:FD 200 19 CI 1/4 NPT ContiTech:FD200-19 CI 1/4 NPT |
Midland/Haldex: CS209200 |
| R & S Truck: 1027405 | Euclid/Meritor Aftermarket: E-FS6910 |
| Ridewell: 1003586910C | ContiTech: FD200-19320 |
| Batco: 10-96910 | Euclid/Meritor Aftermarket: FS6910 |
| Reyco: 23704-01 | BWP: M-3501 |
| Hendrickson: 45843-3 | HD America: PMABG-6910B |
| Navistar/IHC: 554783C1 | Ridewell: S4512C |
| UCF/Impex: AB-2B9-200 | Leland: SC201 |
| Automann: ABSP2B12R-6910 | Leland: SC2011 |
| Watson & Chalin: AS0001 | Granning: 1371 |
| 57891220100000 | 20054257 | Y | 1B9-201 | 1B9-201 |
| 1B9-201 | 20116161 | N | 1B9-201 | 1B9-201 |
| 57891220100019 | 20094261 | Y | ENIDINE YI-1B9-201 | ENIDINE YI-1B9-201 |
| 57891220200000 | 20094262 | Y | 1B9-202 | 1B9-202 |
| 1B9-202 | 20116162 | Y | 1B9-202 | 1B9-202 |
| 57891220200019 | 20094263 | Y | ENIDINE YI-1B9-202 | ENIDINE YI-1B9-202 |
| 57891220400000 | 20094264 | Y | 1B9-204 | 1B9-204 |
| 1B9-204 | 20116163 | N | 1B9-204 | 1B9-204 |
| 57891220400019 | 20094266 | Y | ENIDINE YI-1B9-204 | ENIDINE YI-1B9-204 |
| 57891220500000 | 20094267 | Y | 1B9-205 | 1B9-205 |
| 57891220500004 | 20116164 | Y | 1B9-205 | 1B9-205 |
| 57891220500019 | 20094268 | Y | ENIDINE YI-1B9-205 | ENIDINE YI-1B9-205 |
| 57891220700000 | 20094269 | Y | 1B9-207 | 1B9-207 |
| 57891220700004 | 20116165 | Y | 1B9-207 | 1B9-207 |
| 57891220700019 | 20094270 | Y | ENIDINE YI-1B9-207 | ENIDINE YI-1B9-207 |
| 57891220800000 | 20094271 | Y | 1B9-208 | 1B9-208 |
| 57891220800004 | 20116166 | Y | 1B9-208 | 1B9-208 |
| 57891220800019 | 20094272 | Y | ENIDINE YI-1B9-208 | ENIDINE YI-1B9-208 |
| 57891221500000 | 20094277 | Y | 1B9-215 | 1B9-215 |
| 57891221500019 | 20094278 | Y | ENIDINE YI-1B9-215 | ENIDINE YI-1B9-215 |
| 57891221600000 | 20175039 | Y | 1B9-216 | 1B9-216 |
| 1B9-216 | 20175183 | N | 1B9-216 | 1B9-216 |
| 57891221700095 | 20805668 | Y | P 1B9-202 | P 1B9-202 |
| 57891221800094 | 20810946 | Y | C 1B9-202 | C 1B9-202 |
| 57891221900094 | 20811429 | Y | C 1B9-207 | C 1B9-207 |
