Place of Origin: | China |
Brand Name: | Goodyear |
Certification: | ISO/TS16949:2009 |
Model Number: | 1B12-305 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Rubber Steel | OEM: | W01-358-7009 |
---|---|---|---|
Warranty: | 1 Year | Weight: | 5.0 Kg |
Other Names: | Air Spring Actuation | Pressure Ability: | 0.2-0.8 M Pa |
Goodyear: | 1B12-305 | Air Inlet: | 1/4 N P.T.F. |
Goodyear Bellows Number: | 578-91-3-301 | ||
High Light: | 578-91-3-301,1B12-305 Goodyear Air Spring,W013586920 |
Goodyear Bellows 578-91-3-301 Goodyear Air Spring 1B12-305 FIRESTONE W013586920

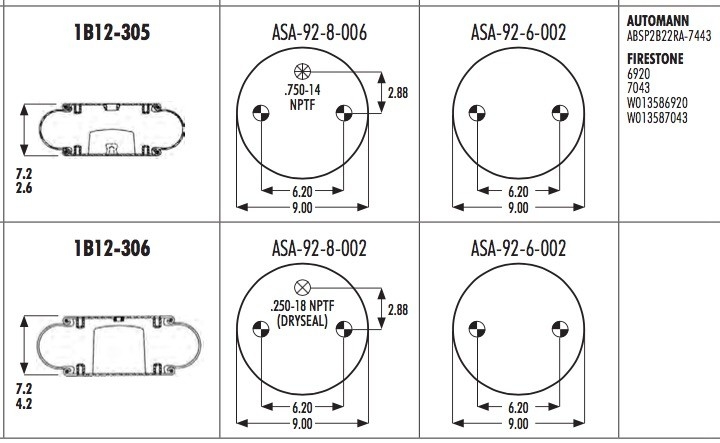

1B12-305 Specifications and Technical Data
Compressed height: 2.12 inches / 53.8mm
Top cover diameter: 9.00 inches / 231 mm
Bottom cover diameter: 9.00 inches / 231 mm
Screw center distance: 157.5 mm
The distance between the nuts is 73 mm
Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Rubber bellows MAX diameter (maximum diameter): 12.9 inches / 325 mm
Rubber bellows natural diameter 300 mm
Working stroke: up to 160 mm to MIN 55 mm
Compressed height: 2.12 inches / 105 mm
Air vent / air inlet: 1/4 N P.T.F.
Firestone Bellows Number: 19
Goodyear part number: 1B12-305
Goodyear Bellows Number: 578-91-3-301 / 578 91 3 301/578913301
AUTOMANN ABSP2B22RA-7443
FIRESTONE 6920
FIRESTONE 7043
FIRESTONE W013586920
FIRESTONE W013587043
OEM Original Equipment Manufacturer:
goodyear | 1B12-305 |
firestone | W01-358-6920 |
AUTOMANN | ABSP2B22RA-7443 |
The usal kinds of Single Convolution Air Actuator
57891230100000 | 57891230100000 | 1B12-301 | 20094281 | N | 1B12-301 | 1B12-301 |
57891230100004 | 57891230100004 | 1B12-301 | 20094282 | N | 1B12-301 Bellows Air Spring | 1B12-301 Bellows Air Spring |
57891230100019 | 57891230100019 | 57891230100019 | 20094283 | Y | ENIDINE YI-1B12-301 | ENIDINE YI-1B12-301 |
57891230400000 | 57891230400000 | 57891230400000 | 20094286 | Y | 1B12-304 | 1B12-304 |
57891230400004 | 57891230400004 | 57891230400004 | 20116167 | Y | 1B12-304 | 1B12-304 |
57891230400019 | 57891230400019 | 57891230400019 | 20094287 | Y | ENIDINE YI-1B12-304 | ENIDINE YI-1B12-304 |
57891230500000 | 57891230500000 | 57891230500000 | 20094288 | Y | 1B12-305 | 1B12-305 |
57891230500004 | 57891230500004 | 1B12-305 | 20094289 | N | 1B12-305 Bellows Air Spring | 1B12-305 Bellows Air Spring |
57891230500019 | 57891230500019 | 57891230500019 | 20094290 | Y | ENIDINE YI-1B12-305 | ENIDINE YI-1B12-305 |
57891230600000 | 57891230600000 | 57891230600000 | 20094292 | Y | 1B12-306 | 1B12-306 |
57891230600004 | 57891230600004 | 1B12-306 | 20116168 | N | 1B12-306 Bellows Air Spring | 1B12-306 Bellows Air Spring |
57891231300000 | 57891231300000 | 57891231300000 | 20094294 | Y | 1B12-313 | 1B12-313 |
57891231300004 | 57891231300004 | 1B12-313 | 20116169 | N | 1B12-313 Bellows Air Spring | 1B12-313 Bellows Air Spring |
57891231300019 | 57891231300019 | 57891231300019 | 20094295 | Y | ENIDINE YI-1B12-313 | ENIDINE YI-1B12-313 |
57891231800000 | 57891231800000 | 57891231800000 | 20099077 | N | 1B12-318 | 1B12-318 |
57891231800004 | 57891231800004 | 57891231800004 | 20565959 | Y | 1B12-318 | 1B12-318 |
57891231800019 | 57891231800019 | 57891231800019 | 20094300 | Y | ENIDINE YI-1B12-318 | ENIDINE YI-1B12-318 |
57891231900004 | 57891231900004 | 1B12-319 | 20136006 | Y | 1B12-319 KIT | 1B12-319 KIT |
57891232200000 | 57891232200000 | 57891232200000 | 20339463 | Y | 1B12-322 | 1B12-322 |
57891232200004 | 57891232200004 | 1B12-322 | 20339465 | N | 1B12-322 Bellows Air Spring | 1B12-322 Bellows Air Spring |
57891233200094 | 57891233200094 | 57891233200094 | 20810060 | Y | C 1B12-304 | C 1B12-304 |
57891233300090 | 57891233300090 | 57891233300090 | 20810061 | Y | C 1B12-313 | C 1B12-313 |
57891233300094 | 57891233300094 | 57891233300094 | 20811430 | Y | C 1B12-313 | C 1B12-313 |
57891233400091 | 57891233400091 | 57891233400091 | 20810227 | Y | P 1B12-313 | P 1B12-313 |
57891235000000 | 57891235000000 | 57891235000000 | 20094304 | Y | 1B14-350 | 1B14-350 |
Shipping and packing
Shipment:
1. Normally, we will deliver the parts within 2-8 work days after payment is received.
2. We always deliver the air spring by DHL, UPS,FEDEX and TNT.They are all can very quickly to deliver the package to you. If the package is large and heavy, we may send it by sea.
We will arrange it for you if you have no preference on the express carrier
Packing:
Shipping by Air: packed with strong carton box;
Shipping by Sea: wrapped with water-proof material,pallet and wooden case will be used if necessary.
Air Spring offer solutions for vibration-oriented mounting of many kinds of machines. From the technical design all the way through to the harmonization of individual system components. Air spring can be applied to a lot of equipment that can effectively reduce the influence of vibration to the equipment .Currently, more and more industrial equipment use air spring. GUOMAT air springs make very low natural frequencies possible, from 0.5 to 3.5 Hz depending on the type. With loads ranging from 0.5 k N to more than 440 k N, air isolators provide effective mounts for sensitive measuring instruments as well as heavy foundations.
Industrial Equipments Such As
Papermaking equipment, large washing machine, water treatment equipment, fitness equipment, punch press, leather draw machine, automobile testing station, medical machinery, mining machinery, etc.
