| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B14-358 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Goodyear: | 1B14-358 |
|---|---|---|---|
| Warranty: | One Year | Weight: | 6.5 Kg |
| Other Names: | Air Springs Vibration | Pressure Ability: | 0.2-0.8 M Pa |
| Rubber Bellows: | 113 | Air Inlet: | 1/4 N P.T.F. |
| Contitech: | FS530-14 339 | ||
| High Light: | 578-91-3-352,1B14-358 Goodyear Air Spring,FIRESTONE W013587112 |
||
578-91-3-352 Goodyear Air Spring 1B14-358 Contitech FS530-14 339 FIRESTONE W013587112
Goodyear 1B14-358 Description:
Different types of fluidized beds can choose the appropriate load capacity of the air spring according to the total weight of the fluidized bed and design specific installation methods based on the length, width and height of the fluidized bed. However, the installation of air springs is advisable. This simplifies the installation of the insulation system considerably than the installation of steel springs.
There are two control methods for airbag insulation. One is a set (usually 4 or 6) of airbag check valve cushions, just like a car tire.
Goodyear 1B14-358 Specifications and Technical Data
Manufacturer :Goodyear 1B14-358
Goodyear:1B14 358
Goodyear:1B14358
Goodyear Bellows:578-91-3-352
Goodyear Bellows:578 91 3 352
Goodyear Bellows:578913352
GUOMAT NO.:1B53014 1/4
Cross NO.:W01-M58-7112
Firestone:W01-M58-7112 ;
Firestone:W01 M58 7112
Firestone:W01M587112
Contitech: FS 530-14 339 CI G 1/4
Contitech: FS530-14 339 CI G 1/4
AUTOMANN
ABSP1B34A-7112
LOAD GUARD
SC2012
CONTI
64521
FS 530-14 339
DAYTON
354-7112
FIRESTONE
7112
W013587112
NEWAY
905-57-026
905-57-028
905-57-041
AR-1834
RIDEWELL
1003587112C
S-3364-C

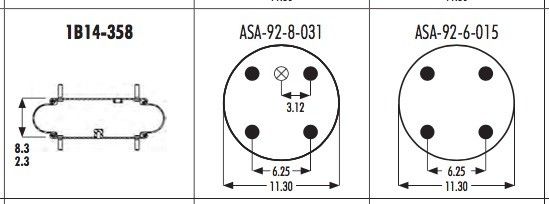

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC
Screw Center Distance of Top Cover Plate :158.8 mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 158.8 mm
Distance Gas Hole Between Nut 79.4 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 N P.T.F.
❸ Cover Plate
Top Cover Plate Diameter (Width): 289mm
Bottom Cover Plate Diameter (Width): 289 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter 380 mm
Rubber Bellows Max Diameter : 406 mm
Rubber Bellows Natural Height : 120 mm
The Working Stroke : MAX 160 mm to MIN 81 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop
The usal kinds of Single Convolution Air Actuator
| Maximum diameter @ 7 bar (mm) | Bead type |
| 406 | 2 |
| Maximum height (mm) | dim. A (Blind Hole Center) (mm) |
| 147 | 158.8 |
| Maximum travel (mm) | Air isolator |
| 97 | Design height (mm) |
| Minimum available height (mm) | 127 |
| 51 | Load (at design height): 3 Bar (kN) |
| Force at 25 mm travel in kN @ 5 Bar | 15.6 |
| 39.9 | Load (at design height): 5 Bar (kN) |
| KN force in units of 5 bar in 50% of the maximum stroke | 27.1 |
| 36.6 | Load (at design height): 7 Bar (kN) |
| KN force at a maximum stroke of 5 Bar | 38.9 |
| 18.7 | Natural frequency (@ 5 Bar) (fn (Hz) |
| Style cross-reference high strength style number | 2.4 |
| 128 | Isolation percentage at a forced frequency of 7 Hz |
| Style cross-reference extended height (similar end cap) style number | 86.9 |
| 113-1 | Isolation percentage at a forced frequency of 13 Hz |
| material | 97 |
| 2 layer standard line | Isolation percentage at a forced frequency of 25 Hz |
| Finishing details | 99.2 |
