Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B12-305 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | FIRESTONE: | W013587443 |
---|---|---|---|
GOODYEAR FLEX: | 578-91-3-310 | Contitech: | FD 330-22 323 |
Top Cover Plate Screw (Nut) Tooth: | 2 Pcs X 3/8-16UNC | Rubber Bellows Natural Diameter: | 300 Mm |
Pressure Ability: | 0.2-0.8 MPa | ||
High Light: | 578-91-3-310,Rubber Industrial Goodyear Air Spring,2B12-305 Double Air Bellows |
578-91-3-310 Rubber Industrial Goodyear Air Spring 2B12-305 Double Air Bellows
2B12-305 Goodyear Air Spring OEM cross:
CONTI |
64531 |
FD 330-22 323 |
DAYTON |
354-7443 |
FIRESTONE |
7443 W013587443 |
GRANNING |
554786C1 |
LOAD GUARD |
SC2026 |
RIDEWELL |
1003587443C S-2683-C |
TRIANGLE |
4323 |
TRP |
AS74430 |
WATSON |
& CHALIN INT’L/NAVISTAR AS-0027 |

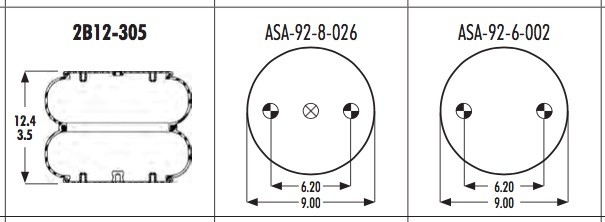

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF / 3/4NPTF / Rp1/4
Rp1/4(Air inlet is in the center)
1/4NPT ( air inlet 73mm)
1/4NPT(Air inlet is in the center)
3/4NPT ( air inlet 73mm)
❸ Cover Plate
Top Cover Plate Diameter (Width): 210 mm
Bottom Cover Plate Diameter (Width): 210 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 300 mm
Rubber Bellows Natural Height : 241 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
57892230500000 | 57892230500000 | 20094524 | Y | 2B12-305 | 2B12-305 |
57892230500004 | 2B12-305 | 20035787 | N | 2B12-305 Bellows Air Spring | 2B12-305 Bellows Air Spring |
57892230500019 | 57892230500019 | 20094528 | Y | ENIDINE YI-2B12-305 | ENIDINE YI-2B12-305 |
57892230700000 | 57892230700000 | 20054263 | Y | 2B12-307 | 2B12-307 |
57892230700004 | 2B12-307 | 20035788 | N | 2B12-307 Bellows Air Spring | 2B12-307 Bellows Air Spring |
57892230900000 | 57892230900000 | 20054264 | Y | 2B12-309 | 2B12-309 |
57892230900004 | 2B12-309 | 20094552 | N | 2B12-309 Bellows Air Spring | 2B12-309 Bellows Air Spring |
57892230900019 | 57892230900019 | 20094556 | Y | ENIDINE YI-2B12-309 | ENIDINE YI-2B12-309 |
57892231200000 | 57892231200000 | 20094568 | Y | 2B12-312 | 2B12-312 |
57892231200038 | 57892231200038 | 20491819 | Y | 2B12-312 HENDRICKSON B-1345 | 2B12-312 HENDRICKSON B-1345 |
57892231300000 | 57892231300000 | 20094570 | Y | 2B12-313 | 2B12-313 |
57892231300004 | 2B12-313 | 20035790 | N | 2B12-313 Bellows Air Spring | 2B12-313 Bellows Air Spring |
57892231700000 | 57892231700000 | 20094585 | Y | 2B12-317 | 2B12-317 |
57892231700004 | 2B12-317 | 20126195 | N | 2B12-317 Bellows Air Spring | 2B12-317 Bellows Air Spring |
57892231800000 | 57892231800000 | 20094589 | Y | 2B12-318 | 2B12-318 |
57892231800004 | 2B12-318 | 20094586 | N | 2B12-318 Bellows Air Spring | 2B12-318 Bellows Air Spring |
57892231800019 | 57892231800019 | 20133029 | Y | ENIDINE YI-2B12-318 | ENIDINE YI-2B12-318 |
57892231900004 | 2B12-319 | 20094597 | N | 2B12-319 Bellows Air Spring | 2B12-319 Bellows Air Spring |
57892232000000 | 57892232000000 | 20094600 | Y | 2B12-320 | 2B12-320 |
57892232000004 | 2B12-320 | 20035793 | N | 2B12-320 Bellows Air Spring | 2B12-320 Bellows Air Spring |
57892232400000 | 57892232400000 | 20094614 | Y | 2B12-324 | 2B12-324 |
57892232400004 | 2B12-324 | 20094615 | N | 2B12-324 Bellows Air Spring | 2B12-324 Bellows Air Spring |
57892232400038 | 57892232400038 | 20491891 | Y | 2B12-324 HENDRICKSON B-6242 | 2B12-324 HENDRICKSON B-6242 |
57892232500000 | 57892232500000 | 20054265 | Y | 2B12-325 SCANIA 1407924 | 2B12-325 SCANIA 1407924 |
57892232500004 | 57892232500004 | 20473663 | Y | 2B12-325 RP | 2B12-325 RP |
57892232600000 | 57892232600000 | 20094624 | Y | 2B12-326 | 2B12-326 |
57892232700000 | 57892232700000 | 20094626 | Y | 2B12-327 | 2B12-327 |
57892233300094 | 57892233300094 | 20806166 | Y | C 2B12-305 | C 2B12-305 |
57892233400091 | 57892233400091 | 20806208 | Y | P 2B9-280 | P 2B9-280 |
57892233400095 | 57892233400095 | 20810361 | Y | P 2B9-280 | P 2B9-280 |
57892233500095 | 57892233500095 | 20806243 | Y | P 2B12-305 | P 2B12-305 |
57892233600091 | 57892233600091 | 20806481 | Y | P 2B12-346 | P 2B12-346 |
57892233700091 | 57892233700091 | 20806485 | Y | P 2B9-200 | P 2B9-200 |
57892233700095 | 57892233700095 | 20810229 | Y | P 2B9-200 | P 2B9-200 |
57892233800091 | 57892233800091 | 20806492 | Y | P 2B9-252 | P 2B9-252 |
57892233900091 | 57892233900091 | 20806486 | Y | P 2B9-278 | P 2B9-278 |
57892234000000 | 57892234000000 | 20035768 | Y | 2B12-340 KIT | 2B12-340 KIT |
57892234000004 | 2B12-340 | 20094629 | N | 2B12-340 Bellows Air Spring | 2B12-340 Bellows Air Spring |
57892234100000 | 57892234100000 | 20094632 | Y | 2B12-341 KIT | 2B12-341 KIT |
57892234100004 | 2B12-341 | 20094633 | N | 2B12-341 KIT | 2B12-341 KIT |
57892234300000 | 57892234300000 | 20371641 | N | 2B12-343 | 2B12-343 |
57892234300019 | 57892234300019 | 20106774 | Y | ENIDINE YI-2B12-343 | ENIDINE YI-2B12-343 |
57892234400000 | 57892234400000 | 20468374 | Y | 2B12-344 | 2B12-344 |
57892234400019 | 57892234400019 | 20106775 | Y | ENIDINE YI-2B12-344 | ENIDINE YI-2B12-344 |
57892234500000 | 57892234500000 | 20113702 | Y | 2B12-345 | 2B12-345 |
57892234500004 | 2B12-345 | 20113703 | N | 2B12-345 Bellows Air Spring | 2B12-345 Bellows Air Spring |
57892234600000 | 57892234600000 | 20113704 | Y | 2B12-346 | 2B12-346 |
57892234600004 | 2B12-346 | 20113705 | N | 2B12-346 Bellows Air Spring | 2B12-346 Bellows Air Spring |
