Goodyear 2B10-226 Stemco Air Spring 578-92-3-250 Firestone W013587795

Goodyear 2B10-226 Stemco Air Spring 578-92-3-250 FIRESTONE W013587795 CONTI FD 200-19 713

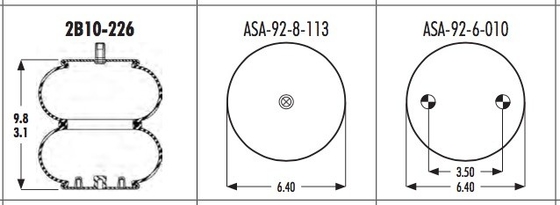

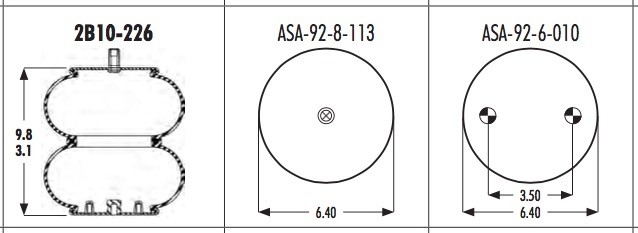

Goodyear 2B10-226 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4

❸ Cover Plate

Top Cover Plate Diameter: 162.5 mm

Bottom Cover Plate Diameter: 162.5 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 260 mm

Minimum Height :75mm

Stroke Height : 285 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Goodyear 2B10-226 Cross others OEM

AUTOMANN
ABSP2B12R-7795
CONTI
67705
FD 200-19 713

FIRESTONE
7795 W013587795
HENDRICKSON
B-14486
TRIANGLE
4524
TRP
AS77950

Quick details:

Types of:
Suspension spring
size:
OEM standard size
car brand:
European cars, American trucks, European trailers
model:
Suspension spring

OE number:
Custom processing
Guarantee:
12 months
Place of Origin; Place of Origin:
Guangzhou, China
Brand:
GUOMAT
material:
Rubber + anti-rust iron parts
certificate:
TS16949
colour:
Black rubber part + white zinc
application:
Bus/trailer/truck/car
MOQ:
1 item
OEM:
OEM accepted
package:
Carton or pallet
payment:
T/T
position:
Before, before/after
product name:
Air suspension bag/spring
position:
Before and after
