Goodyear 2B12-402 Industrial Air Spring 578-92-3-310 Firestone W013587446

Goodyear 2B12-402 Industrial Air Spring 578-92-3-310 Firestone W013587446

  • Goodyear 2B12-402 Industrial Air Spring 578-92-3-310 Firestone W013587446
Goodyear 2B12-402 Industrial Air Spring 578-92-3-310 Firestone W013587446
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B12-402
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W01-358-7446
Contitech: FD 330-22 318 GoodYear Bellows#: 578-92-3-310
Gas Hole / Air Inlet: 1/4-18NPT , Combination Stud/Air Inlet Stud Cover Plate Diameter (Width): 224.5 Mm / 9.00 Inches
Compressed Height: 104 Mm / 4.1 Inches Bottom Cover Plate Screw (Nut) Tooth: 2 Pcs X 3/8-16UNC
High Light:

578-92-3-310

,

2B12-402 Industrial Air Spring

,

Contitech FD 330-22 318

Goodyear 2B12-402 Industrial Air Spring 578-92-3-310 Firestone W013587446 Contitech FD330-22 318

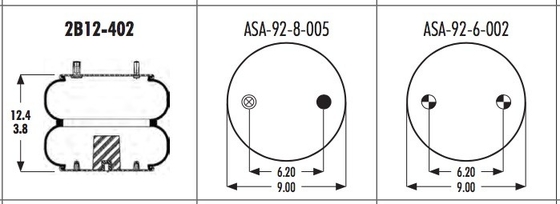

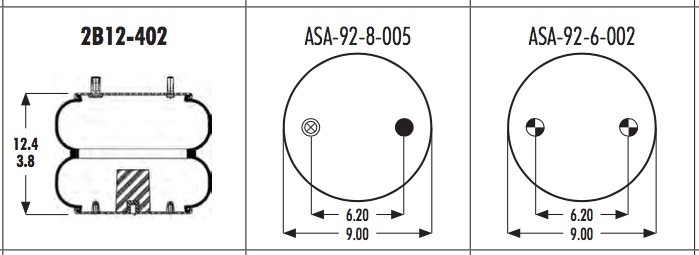

Product parameters:



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-13UNC

Top Cover Plate Combination Nut : 3/4-16UNF

Screw Center Distance of Top Cover Plate : 140 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 2X3/8--13UNC

Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPT , Combination Stud/Air Inlet Stud



Cover Plate

Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches



Rubber Bellows

Rubber Bellows MAX Diameter : 343 mm / 9.7 inches

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 363mm / 14.3 inches

Working Stroke : 259 mm / 10.2 inches



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Compressed height: 3.12 inches
Top plate width: 9.00 inches
Piston width: 9.00 inches
Firestone Corrugated Tube Number: 228CT-1.5
Goodyear part number: 2B12-402
Goodyear Bellows Number: 578-92-3-310



AUTOMANN

ABSP2B22RA-7446
LOAD GUARD
SC2027
CONTI
R&S TRUCK & BODY 1082914
64534
FD 330-30 370
DAYTON
SILENT DRIVE
354-7446
AS-7446
FIRESTONE
TRIANGLE
7446 W013587446
4370
12.4 3.8
HDA
AS74460
PMABG-7446B
WATSON & CHALIN AS-0005
HENDRICKSON
B-3798
INT’L/NAVISTAR
554791C1



Assembly Weight: 13.4 lbs

Design Height: 9-11 inches

Minimum Jounce Height: 3.55 inches

Loading Capacity at 20 psig: 1,240 lbsf

Loading Capacity at 60 psig: 3,720 lbsf

Loading Capacity at 90 psig: 5,580 lbsf

Operating Temperature: 57Cº to -54Cº



Goodyear 2B12-402 Industrial Air Spring 578-92-3-310 Firestone W013587446 0





GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!



  1. They almost do not need to maintain.
  2. Increase the service life of tires and brake pads.
  3. Let you pull anything; Eliminate expensive admission cost.
  4. Greatly reduce the breakage of the other vehicle components and maintenance.
  5. Back to you in the scrappage, truck and trailer with air suspension is more valuable.
  6. Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
  7. Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
  8. To provide smooth to load, reduce the cost of expensive insurance claims and packaging.



57892240200000 57892240200000 20094715 Y 2B12-402 2B12-402
57892240200004 2B12-402 20035803 N 2B12-402 Bellows Air Spring 2B12-402 Bellows Air Spring
57892240600000 57892240600000 20094724 Y 2B12-406 2B12-406
57892240600004 2B12-406 20094725 N 2B12-406 Bellows Air Spring 2B12-406 Bellows Air Spring
57892241000000 57892241000000 20094740 Y 2B12-410 2B12-410
57892241000004 2B12-410 20094741 N 2B12-410 Bellows Air Spring 2B12-410 Bellows Air Spring
57892241100000 57892241100000 20094750 Y 2B12-411 2B12-411
57892241100004 2B12-411 20035806 N 2B12-411 Bellows Air Spring 2B12-411 Bellows Air Spring
57892241200000 57892241200000 20094757 Y 2B12-412 2B12-412
57892241200004 2B12-412 20035807 N 2B12-412 Bellows Air Spring 2B12-412 Bellows Air Spring
57892241600000 57892241600000 20094768 Y 2B12-416 2B12-416
57892241600004 2B12-416 20094770 N 2B12-416 Bellows Air Spring 2B12-416 Bellows Air Spring
57892241600019 57892241600019 20094771 Y ENIDINE YI-2B12-416 ENIDINE YI-2B12-416
57892241600078 57892241600078 20243078 Y 2B12-416 CRYSTAL SPRING 2B12-416 CRYSTAL SPRING
57892241900000 57892241900000 20094775 Y 2B12-419 2B12-419
57892241900004 2B12-419 20116526 N 2B12-419 2B12-419
57892241900019 57892241900019 20094776 Y ENIDINE YI-2B12-419 ENIDINE YI-2B12-419
57892242400000 57892242400000 20094782 Y 2B12-424 2B12-424
57892242400004 2B12-424 20116527 N 2B12-424 Bellows Air Spring 2B12-424 Bellows Air Spring
57892242500000 57892242500000 20094789 Y 2B12-425 2B12-425
57892242500004 2B12-425 20035808 N 2B12-425 Bellows Air Spring 2B12-425 Bellows Air Spring
57892242500018 57892242500018 20094791 Y ENIDINE YI-2B12-425 ENIDINE YI-2B12-425
57892242500019 57892242500019 20094787 Y ENIDINE YI-2B12-425 ENIDINE YI-2B12-425
57892242600000 57892242600000 20094794 Y 2B12-426 2B12-426
57892242600004 2B12-426 20035809 N 2B12-426 Bellows Air Spring 2B12-426 Bellows Air Spring
57892242700000 57892242700000 20094802 Y 2B12-427 2B12-427
57892242700004 2B12-427 20094807 N 2B12-427 Bellows Air Spring 2B12-427 Bellows Air Spring
57892242800000 57892242800000 20094810 Y 2B12-428 NR 2B12-428 NR
57892242800004 2B12-428 20035811 N 2B12-428 Bellows Air Spring 2B12-428 Bellows Air Spring
57892242900000 57892242900000 20094814 Y 2B12-429 2B12-429
57892242900004 2B12-429 20094815 N 2B12-429 Bellows Air Spring 2B12-429 Bellows Air Spring
57892242900019 57892242900019 20094816 Y ENIDINE YI-2B12-429 ENIDINE YI-2B12-429
57892243200000 57892243200000 20094821 Y 2B12-432 NR 2B12-432 NR
57892243200004 2B12-432 20094825 N 2B12-432 Bellows Air Spring 2B12-432 Bellows Air Spring
57892243300000 57892243300000 20094828 Y 2B12-433 2B12-433
57892243400000 57892243400000 20094831 Y 2B12-434 (32/BULK PACK) 2B12-434 (32/BULK PACK)
57892243400004 2B12-434 20035813 N 2B12-434 Bellows Air Spring 2B12-434 Bellows Air Spring
57892243700000 57892243700000 20094841 Y 2B12-437 2B12-437
57892243700004 57892243700004 20116528 Y 2B12-437 2B12-437
57892243700019 57892243700019 20094842 Y ENIDINE YI-2B12-437 ENIDINE YI-2B12-437
57892243800000 57892243800000 20094845 Y 2B12-438 2B12-438
57892243900000 57892243900000 20094847 Y 2B12-439 2B12-439
57892243900004 2B12-439 20116529 N 2B12-439 2B12-439
57892244000000 57892244000000 20094849 Y 2B12-440 2B12-440
57892244000004 2B12-440 20035814 N 2B12-440 Bellows Air Spring 2B12-440 Bellows Air Spring
57892244600000 57892244600000 20035815 Y 2B12-446 2B12-446
57892244600004 2B12-446 20094856 N 2B12-446 Bellows Air Spring 2B12-446 Bellows Air Spring
57892244600019 57892244600019 20094858 Y ENIDINE YI-2B12-446 ENIDINE YI-2B12-446
57892244700000 57892244700000 20094865 Y 2B12-447 2B12-447
57892244800000 57892244800000 20094869 Y 2B12-448 2B12-448
57892244800019 57892244800019 20094868 Y ENIDINE YI-2B12-448 ENIDINE YI-2B12-448
57892244900000 57892244900000 20094871 Y 2B12-449 2B12-449
57892245200000 57892245200000 20094877 Y 2B14-452 2B14-452
57892245200004 57892245200004 20116534 Y 2B14-452 2B14-452
57892245200019 57892245200019 20094878 Y ENIDINE YI-2B14-452 ENIDINE YI-2B14-452
57892245900000 57892245900000 20094881 Y 2B12-459 2B12-459
57892246100000 57892246100000 20094884 Y 2B14-461 2B14-461
57892246200000 57892246200000 20094885 Y 2B14-462 2B14-462
57892246200004 2B14-462 20126196 N 2B14-462 Bellows Air Spring 2B14-462 Bellows Air Spring
57892246200082 57892246200082 20657133 Y 2B14-462 Torshin 2B14-462 Torshin
57892246200111 57892246200111 20662409 Y dummy for 2B14-462 dummy for 2B14-462
57892246300000 57892246300000 20157114 Y 2B12-463 2B12-463
57892246300004 2B12-463 20132734 N 2B12-463 Bellows Air Spring 2B12-463 Bellows Air Spring
57892246400000 57892246400000 20114248 Y 2B14-464 TOOLING NOT YET AVAILABLE 2B14-464 TOOLING NOT YET AVAILABLE
57892246500000 57892246500000 20069531 Y 2B14-465 2B14-465
57892246600000 57892246600000 20094886 Y 2B12-466 2B12-466
57892246600004 57892246600004 20132915 Y 2B12-466 2B12-466
