| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B14-468 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | Goodyear: | 2B14-365 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 8.3kg |
| Other Name: | Rubber Air Actuator | Pressure Ability: | 0.2-0.8 M Pa |
| Screw (Nut) Tooth: | 4pcsX3/8-16 | Gas Hole: | 1/4NPTF |
| Goodyear Bellows: | 578-92-3-356 | ||
| High Light: | 578-92-3-356,W013586801,TRP AS68010 Air Bellows |
||
Air Bellows 578-92-3-356 Goodyear Air Springs 2B14-365 FIRESTONE W013586801 For TRP AS68010
OEM Original Equipment Manufacturer:
Firestone 22-1,
Goodyear Part # 2B14-468;
Goodyear Part # 2B14 468;
Goodyear Part # 2B14468
Goodyear bellows # 578-92-3-365;
Goodyear bellows # 578 92 3 365;
Goodyear bellows # 578923365
Firestone Part # W01-M58-6801;
Firestone Part # W01 M58 6801;
Firestone Part # W01M586801
Goodyear Air Springs 2B14-365:
| AUTOMANN INT’L/NAVISTAR |
| ABSP2B34RB-6801 1685183C1 |
| CONTI |
| 64590 |
| FD 530-30 451 |
| DAYTON |
| 354-6801 |
| E-Z RIDE |
| 8030160 |
| FIRESTONE |
| 6801 W013586801 |
| HENDRICKSON |
| B-2734 |
| LOAD GUARD |
| SC2079 |
| RIDEWELL |
| 1003586801C |
| TRIANGLE |
| 4451 |
| TRP |
| AS68010 |
| WATSON & CHALIN AS-0021 |

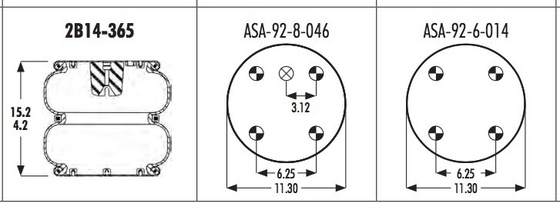

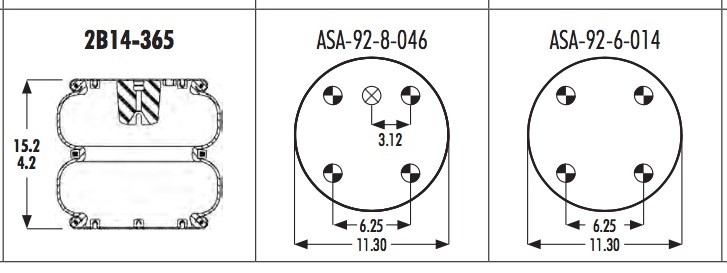

Goodyear Part 2B14-365 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth :4pcsX3/8-16
Screw Center Distance of Bottom Cover Plate :159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : Air Fitting – 1/4 NPTF
Screw Center Distance Between Gas Hole and Nut : 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 287mm
Bottom Cover Plate Diameter: 287mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 406 mm
Rubber Bellows Natural Diameter : 320 mm
The Working Stroke : MIN 77 mm to MAX 355 mm
Maximum Height : 355mm
Minimum Height :77mm
Stroke Height : 278 mm
❺ Bumper block / Buffer block
Without or With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
| Design Height (mm) | 267 |
| Load (at Design Height) at: 3 Bar (kN) | 16.7 |
| Load (at Design Height) at: 5 Bar (kN) | 39.2 |
| Load (at Design Height) at: 7 Bar (kN) | 41.1 |
| Natural Frequency (@5 Bar)(fn(Hz) | 1.6 |
| % of Isolation at Forced Frequency 7 Hz | 95.6 |
| % of Isolation at Forced Frequency 13 Hz | 98.8 |
| % of Isolation at Forced Frequency 25 Hz | 99.7 |
The usal kinds of Double Convolution Air Springs
Style 21-2 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6377;W01-M58-6377;W01 M58 6377;W01M586377
Blind nuts, 1/4 BSP, bumper:W01-M58-6379;W01 M58 6379;W01M586379
Blind nuts, 3/4 BSP:W01-M58-6378;W01 M58- 6378;W01M586378
Rubber bellows only:W01-358-0140;W01 358 0140;W013580140
Assembly weight (bead plate version, no bumper):8.3kg.
Force to collapse to minimum height (@ 0 BAR):156 N.
| 57892236200000 | 20054268 | Y | 2B14-362 EXT | 2B14-362 EXT |
| 2B14-362 | 20116532 | N | 2B14-362 Bellows Air Spring | 2B14-362 Bellows Air Spring |
| 57892236200019 | 20094683 | Y | ENIDINE YI-2B14-362 | ENIDINE YI-2B14-362 |
| 57892236300000 | 20094684 | Y | 2B14-363 EXT | 2B14-363 EXT |
| 2B14-363 | 20116533 | N | 2B14-363 Bellows Air Spring | 2B14-363 Bellows Air Spring |
| 57892236300019 | 20094685 | Y | ENIDINE YI-2B14-363 | ENIDINE YI-2B14-363 |
| 57892236500000 | 20054269 | Y | 2B14-365 | 2B14-365 |
| 2B14-365 | 20035800 | N | 2B14-365 Bellows Air Spring | 2B14-365 Bellows Air Spring |
| 57892236500019 | 20094688 | Y | ENIDINE YI-2B14-365 | ENIDINE YI-2B14-365 |
| 57892236500038 | 20297199 | Y | 2B14-365 HENDRICKSON B-2734 | 2B14-365 HENDRICKSON B-2734 |
| 57892236500041 | 20620564 | Y | 2B14-365 HENDRICKSON S-2734-36 | 2B14-365 HENDRICKSON S-2734-36 |
| 57892236600000 | 20094692 | Y | 2B14-366 | 2B14-366 |
| 2B14-366 | 20094693 | N | 2B14-366 Bellows Air Spring | 2B14-366 Bellows Air Spring |
| 57892236700000 | 20094697 | Y | 2B14-367 | 2B14-367 |
| 2B14-367 | 20035802 | N | 2B14-367 Bellows Air Spring | 2B14-367 Bellows Air Spring |
| 57892236900000 | 20094702 | Y | 2B14-369 EXT | 2B14-369 EXT |
