| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B12-335 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 3B12-335 |
|---|---|---|---|
| Air Fitting: | 1/4 NPTF | Screw Tooth: | 3/8-16UNC |
| Screw Center Distance: | 157.5 Mm | Cover Plate Diameter: | 228.6 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 120~457 Mm |
| Net Weight: | 7.5 Kg | Package Size: | 33 X 33 X 22 Cm |
| High Light: | 578933100,3B12-335 Goodyear Air Bellows,FIRESTONE W013587996 |
||
3B12-335 Goodyear Air Bellows Flex 578933100 FIRESTONE W013587996 For GRANNING 8221
3B12-335 Cross others OEM
Goodyear 3B12-335
Goodyear 3B12 335
Goodyear 3B12335
Goodyear Flexmember 578-93-3-100
Goodyear Flexmember 578 93 3 100
Goodyear Flexmember 578933100
Contitech FT 330-29 520 CI 1/4 NPT
Contitech FT 330 29 520
Contitech FT330-29 520
Firestone: 7996；
Firestone:W01-358-7996
Firestone:W01 358 7996
Firestone:W013587996
AUTOMANN TRIANGLE
ABSP3B22R-7996 4520
CONTI TRP
64570 AS79960 FT 330-29 520
FIRESTONE
7996 W013587996
GRANNING
8221

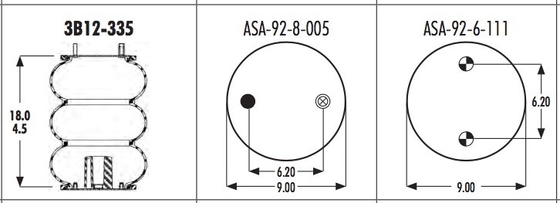

3B12-335 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :Combination Stud : 1 pcs X – 3/4-16
Top Cover Plate Screw Bolt or Stud – 1/2-13 or 1/2-20
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Air Fitting – 1/4 NPTF
Screw Center Distance Between Gas Hole and Nut : 73 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
WithBumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Other kinds of goodyear :
| 57893233500000 | 20141253 | Y | 3B12-335 | 3B12-335 |
| 3B12-335 | 20141254 | N | 3B12-335 Bellows Air Spring | 3B12-335 Bellows Air Spring |
| 57893233600000 | 20141257 | Y | 3B12-336 HENDRICKSON HEBRON 004645 | 3B12-336 HENDRICKSON HEBRON 004645 |
| 57893233600004 | 20141258 | Y | 3B12-336 HENDRICKSON HEBRON 004645 | 3B12-336 HENDRICKSON HEBRON 004645 |
| 57893233700000 | 20156098 | Y | 3B12-337 | 3B12-337 |
| 3B12-337 | 20156099 | N | 3B12-337 Bellows Air Spring | 3B12-337 Bellows Air Spring |
| 57893233800000 | 20156259 | Y | 3B12-338 | 3B12-338 |
| 3B12-338 | 20156300 | N | 3B12-338 Bellows Air Spring | 3B12-338 Bellows Air Spring |
| 57893233900000 | 20160225 | Y | 3B12-339 | 3B12-339 |
| 3B12-339 | 20160226 | N | 3B12-339 | 3B12-339 |
| 57893234000000 | 20192659 | Y | 3B12-340 | 3B12-340 |
| 3B12-340 | 20192770 | N | 3B12-340 | 3B12-340 |
| 3B12-342 | 20407163 | N | 3B12-342 Bellows Air Spring | 3B12-342 Bellows Air Spring |
| 57893234200077 | 20252809 | Y | 3B12-342 WATSON & CHALIN AS0048-3G | 3B12-342 WATSON & CHALIN AS0048-3G |
| 57893234300000 | 20268045 | Y | 3B12-343 | 3B12-343 |
| 3B12-343 | 20268046 | N | 3B12-343 | 3B12-343 |
| 57893234400000 | 20271943 | Y | 3B12-344 | 3B12-344 |
| 57893234500000 | 20272670 | Y | 3B12-345 | 3B12-345 |
| 57893234500004 | 20272671 | Y | 3B12-345 | 3B12-345 |
| 57893234600000 | 20278885 | Y | 3B12-346 | 3B12-346 |
| 57893234600004 | 20278886 | Y | 3B12-346 | 3B12-346 |
| 57893234700000 | 20277829 | Y | 3B12-347 | 3B12-347 |
| 3B12-347 | 20277900 | N | 3B12-347 Bellows Air Spring | 3B12-347 Bellows Air Spring |
| 57893234900000 | 20334042 | Y | 3B12-349 | 3B12-349 |
| 3B14-349 | 20334045 | N | 3B12-349 | 3B12-349 |
