| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9-210 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | Contitech: | FD200-19 362 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 3.5 Kg |
| Other Name: | Convoluted Air Spring Bags | Pressure Ability: | 0.2-0.8 M Pa |
| Firestone: | W013586908 | Goodyear: | 2B9-210 |
| High Light: | W01-358-6908,FD200-19 362,2B9-210 Double Convoluted Air Spring |
||

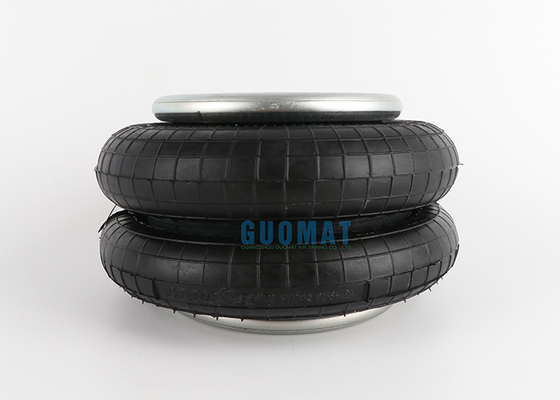

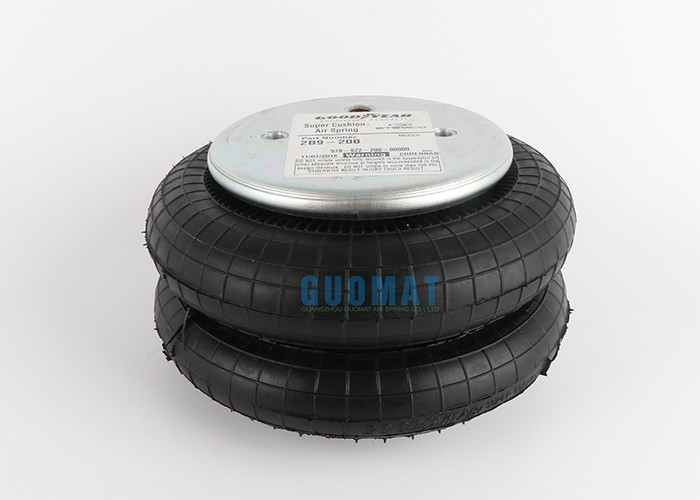

Goodyear 2B9-210 Double Convoluted Air Spring W01-358-6908 CONTITECH FD200-19 362
OEM Original Equipment Manufacturer:
| Reference | OEM |
| GUOMAT NO. | 2B6908 |
| Firestone |
W01-358-6908 / W01 358 6908 / W013586908 |
| Contitech |
FD 200-19 362 / FD200-19 362 / FD 200 19 362 |
| Contitech | 161294 |
| Goodyear |
2B9-210 / 2B9 210 / 2B9210 |
| Goodyear |
578923202 / 578-92-3-202 / 578 92 3 202 |
| Triangle |
6325/ 4362 |
| Watson&Chalin | AS-0035 |
| Ridewell | 1003586908C |
AUTOMANN TRP
ABSP2B12R-6908 AS69080
CONTI
64511
FD 200-19 362
FIRESTONE
6908 W013586908
TRIANGLE
4362
WATSON & CHALIN AS-0035
Firestone number W01-358-6908, Firestone style 20, Continental ContiTech FD 200-19 362, ContiTech order number 64511, Automann SP2B12R-6908, FleetPride AS6908, Goodyear 2B9-210, Goodyear Flex 578578202, Loadguard SC2766 , Ridewell 1003586908C, Taurus 6325, Triangle AS-4362, TRP AS69080, Warren 8030120, Watson & Chalin AS-0035

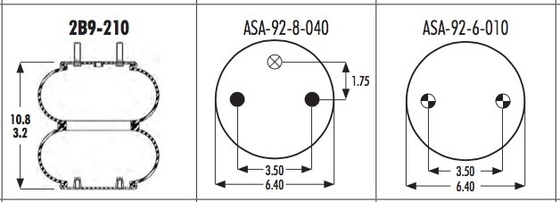

Specifications and Technical Data of 2B6908
Compressed Height: 3.12 / 79mm
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX1/212UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 224 mm
The Working Stroke : MAX 274 mm to MIN 95 mm
Gas Hole / Air inlet : 1/4 NPTF
Firestone Bellows Number:20
Goodyear Part Number:2B9-210/ 2B9210 / 2B9 210
Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
| 57892221000000 | 20094411 | Y | 2B9-210 | 2B9-210 |
| 2B9-210 | 20035781 | N | 2B9-210 Bellows Air Spring | 2B9-210 Bellows Air Spring |
| 57892221000034 | 20112681 | Y | 2B9-210 Neway X-12844 | 2B9-210 Neway X-12844 |
| 57892221600000 | 20094417 | Y | 2B9-216 | 2B9-216 |
| 2B9-216 | 20116522 | N | 2B9-216 Bellows Air Spring | 2B9-216 Bellows Air Spring |
| 57892221600019 | 20094419 | Y | ENIDINE YI-2B9-216 | ENIDINE YI-2B9-216 |
| 57892221800000 | 20094422 | Y | 2B9-218 | 2B9-218 |
| 2B9-218 | 20035782 | N | 2B9-218 Bellows Air Spring | 2B9-218 Bellows Air Spring |
| 57892222300000 | 20067192 | N | 2B9-223 METRIC | 2B9-223 METRIC |
| 57892222400000 | 20094430 | Y | 2B9-224 | 2B9-224 |
| 57892222500000 | 20035783 | Y | 2B9-225 | 2B9-225 |
| 2B9-225 | 20094432 | N | 2B9-225 Bellows Air Spring | 2B9-225 Bellows Air Spring |
| 57892222500019 | 20248277 | Y | ENIDINE 2B9-225 | ENIDINE 2B9-225 |
| 57892222500029 | 20251574 | Y | 2B9-225 VIBRATECH | 2B9-225 VIBRATECH |
| 57892222500073 | 20131791 | Y | 2B9-225 NATIONAL STEEL 70604703 | 2B9-225 NATIONAL STEEL 70604703 |
| 57892222500074 | 20140152 | Y | 2B9-225 TTX 1999408 | 2B9-225 TTX 1999408 |
| 2B10-226 | 20094435 | N | 2B10-226 Bellows Air Spring | 2B10-226 Bellows Air Spring |
| 57892222800000 | 20094438 | Y | 2B9-228 | 2B9-228 |
| 57892222900000 | 20094439 | Y | 2B9-229 | 2B9-229 |
| 2B9-229 | 20067578 | N | 2B9-229 Bellows Air Spring | 2B9-229 Bellows Air Spring |
| 57892222900077 | 20215645 | Y | 2B9-229 WATSON & CHALIN AS0058 | 2B9-229 WATSON & CHALIN AS0058 |
| 57892222930000 | 20094444 | Y | 2B9-229 | 2B9-229 |
| 2B9-230 | 20067579 | N | 2B9-230 Bellows Air Spring | 2B9-230 Bellows Air Spring |
| 57892223400000 | 20067736 | Y | 2B9-234 METRIC | 2B9-234 METRIC |
| 57892223500000 | 20094446 | Y | 2B9-235 METRIC | 2B9-235 METRIC |
