| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9-216 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | DINA: | AZ-8127-19 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 3.5 Kg |
| Other Name: | Air Spring Bags | Pressure Ability: | 0.2-0.8 M Pa |
| PREVOST: | 63-0174 | Goodyear: | 2B9-216 |
| High Light: | Double Bellow Industrial Air Spring,2B9-216 Industrial Air Spring,PREVOST 63-0174 Air Spring |
||

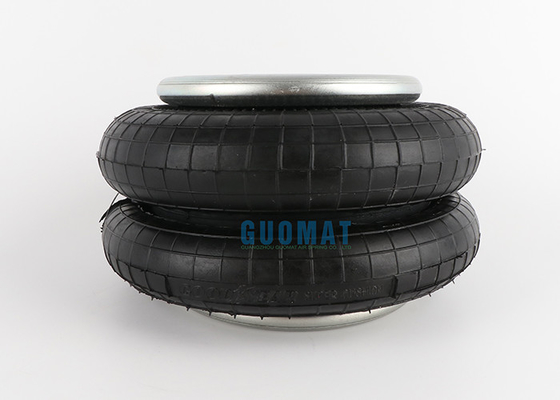

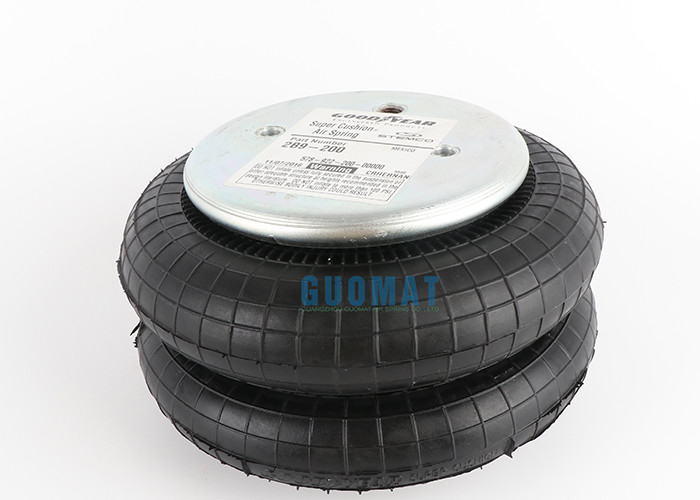

2B9-216 Enidine - YI2B9-2 Goodyear Double Bellow Air Spring DINA AZ-8127-19 PREVOST 63-0174
OEM Original Equipment Manufacturer:
| Reference | OEM |
| PREVOST | 63-0174 |
| Goodyear |
2B9-216 / 2B9 216 / 2B9216 |
| Goodyear |
578923202 / 578-92-3-202 / 578 92 3 202 |
| DINA | AZ-8127-19 |
Goodyear Number: 2B9-216
Bellows type: double
Goodyear Bellows Number: 578-92-3-202
Goodyear Part Number:2B9-210/ 2B9210 / 2B9 210
Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202
TRAILERS DE MONTERREY 73312B

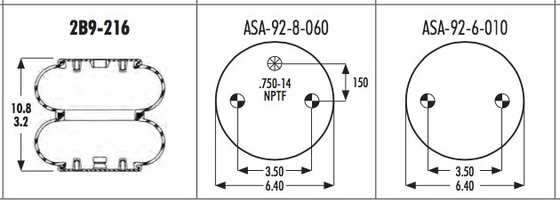

Specifications and Technical Data
Compressed Height: 3.12 / 79mm
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX1/212UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 224 mm
The Working Stroke : MAX 274 mm to MIN 95 mm
Air Fitting: 1/2 NPTF or 3/8 NPTF
Firestone Bellows Number:20
Top plate diameter: 6.4 inch
Top plate C to C diameter: 3.5 inch
Number of studs in bottom plate hole: 2 pcs
Base plate diameter: 6.4 inch
Diameter of base plate C to C: 3.5 inch
Bottom plate alignment: parallel
Bumper: None
Minimum height: 3.2 inch
Maximum height: 10.8 inch
Number of top plate holes/studs: 2 pcs
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
