| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9-225 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | DINA: | FIRESTONE W013586928 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 3.5 Kg |
| Other Name: | Air Spring Bags | Pressure Ability: | 0.2-0.8 M Pa |
| For TTX: | 1999408 | Goodyear: | 2B9-225 |
| High Light: | 2B9-225 Industrial Air Spring,W013586928,TTX 1999408 Double Convoluted Airbag |
||

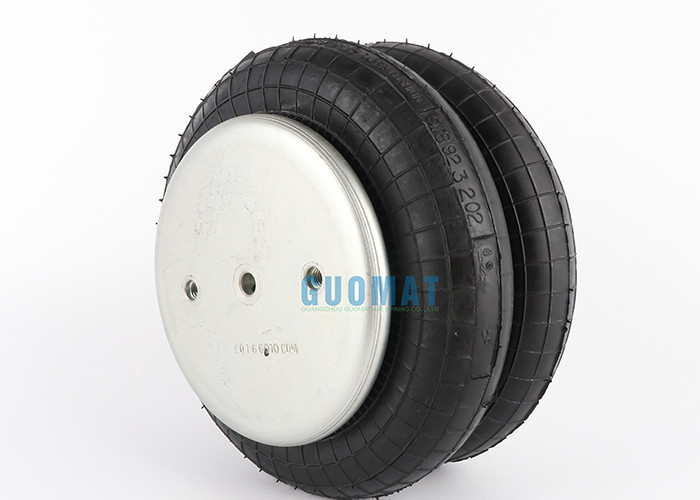

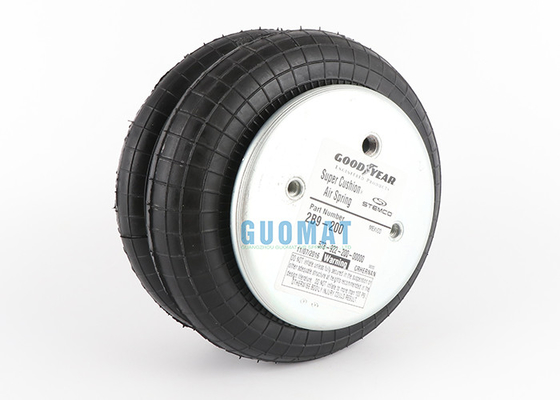

Goodyear Air Spring 2B9-225 Double Convoluted Airbag FIRESTONE W013586928 For TTX 1999408
OEM Original Equipment Manufacturer:
| Reference | OEM |
| FIRESTONE | W01-358-6928 W01 358 6928 W013586928 |
| Goodyear |
2B9-225 / 2B9 225 2B9225 |
| Goodyear |
578923202 / 578-92-3-202 / 578 92 3 202 |
| TTX | 1999408 |

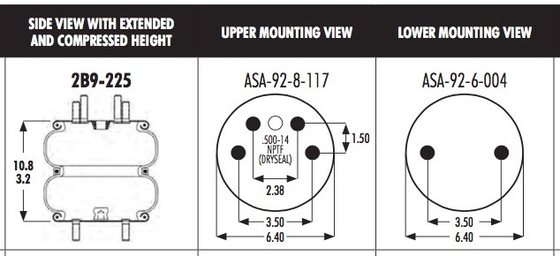

Specifications and Technical Data
Compressed Height: 3.12 / 79mm
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX1/212UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 224 mm
The Working Stroke : MAX 274 mm to MIN 95 mm
Air Fitting: 1/2 NPTF or 3/8 NPTF
Firestone Bellows Number:20
Goodyear Part Number:2B9-225/ 2B9225 / 2B9 225
Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
