579-92-3-515 Goodyear Air Spring 2B6-535 Contitenal FD110-15 766 66094

579-92-3-515 Goodyear Air Spring 2B6-535 Contitenal FD110-15 766 Order NO. 66094​

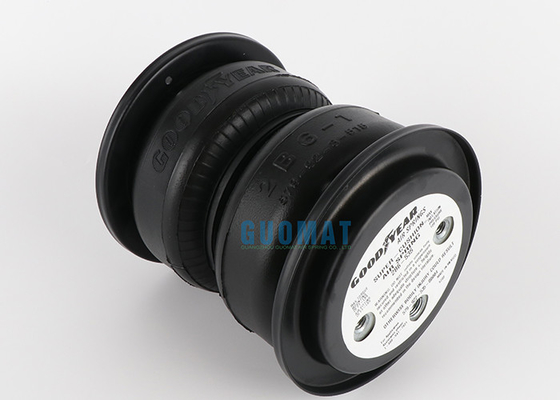

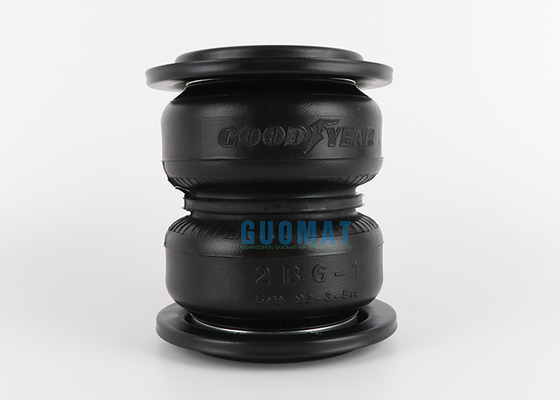

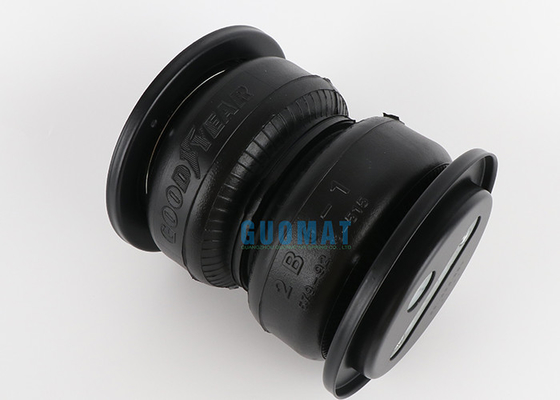

Description of 2B6-535 Goodyear Air Spring :

The specifications of the 2B6-535 Goodyear air spring are different from other double-layer conventional models, because this 2B6-535 Goodyear air spring has a double-fold Goodyear air spring reduction in the fold design and sleeve bellows. Vibrator. They will provide similar features and functions, but in the sleeve type, the end cover holder is permanently fixed by pinching the elastic member between the end cover holder and the external crimping ring. The material used for the cover plate holders at both ends of the 2B6-535 Goodyear air spring is aluminum alloy, which is more corrosion-resistant and durable in use than iron.

Goodyear Air Spring 2B6-535:

Flexible members: 579-92-3-515
Goodyear Trim: 2B6535

Goodyear 2B6-535

Goodyear​ 2B6 535

Goodyear​ 2B6535

Goodyear​ Flexmember Number 579-92-3-515

Goodyear​​ Flexmember Number 579 92 3 515

Goodyear​​ Flexmember Number 579923515

Refer to

Order NO. 66094​

CONTITECH FD110-15766

CONTITECH FD110-15 766

CONTITECH FD110 15 766

2B6-535 Goodyear Air Spring Technical parameters

❶Nut / Blind Nut

Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 70 mm/2.75 inches
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
The screw center distance of the bottom cover plate: 70 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 35 mm

❸ Cover Plate

Top Cover Plate Diameter: 105 mm

Bottom Cover Plate Diameter: 105 mm

❹Rubber Bellows

Maximum diameter of rubber bellows: 178 mm
Natural diameter of rubber bellows: 150 mm
Working stroke: minimum 71 mm to maximum 231 mm
Maximum height: 231 mm
Minimum height: 71mm
Stroke height: 160mm
Maximum OD @ 100 psi (inch): 178mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

2B6-535 Goodyear Air Spring Other information

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.5 kilograms
Package size: 24*24*24 CM
Roof hole / stud: 3 pcs
Floor hole / stud: 2 pcs
Top plate diameter: 4.15=105 mm
Base plate diameter: 4.15=105 mm
Folding height: 2.8=71 mm


Application of GOODYEAR 2B6-535

Similar Parts
4G2220
4G2220 Fuel Injector
JP10010
JP10010
42532
42532 Wiper Arm
MC131962
MC131962 Brake Master Cylinder
EM-8352
EM-8352 Mount, Engine
14X35X7
14X35X7 Seal
710511
710511 Manual Trans Input Shaft Seal
460116
460116 Seal
FB452
FB452
3D1119
3D1119 Cap and Rotor Kit
95306K2
95306K2 Engine Timing Belt Component Kit
SU11353
SU11353 Sensor

Precautions:

1. Installation and air conditioning center of the upper cage and mounting holes
Lower drain hole aligned in + /·2"
2. Do not inflate completely
Suspension or other
Structure
At design height.
Without GOODYEAR's permission, please do not expand to more than 6.9 bar.
Under no circumstances should the pressure exceed 11 bar
State of health.
3. Available strokes start at the lowest height,
4. The bottom plate with a minimum diameter of 95mm supports ASSEMLBY on the top and bottom.
5. Fasteners
The torque during installation does not exceed 27N-m.

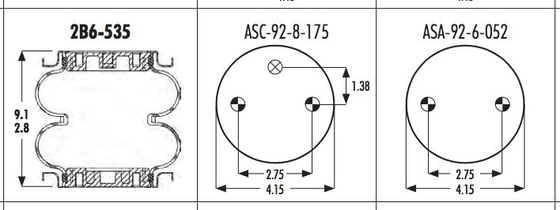

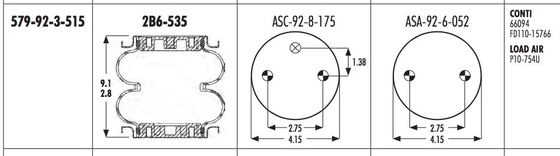

The drawing of Goodyear Air Spring 2B6-535:
