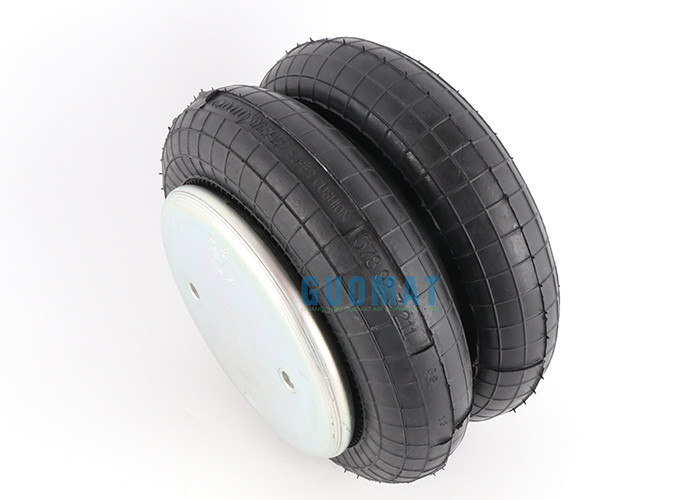

2B9-239 Goodyear Double Convoluted Air Bag For Ridewell 1003586902C

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	2B9-239

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Steel Cover Plate , Rubber Bellows	Firestone:	W013586902
Gas Hole:	1/4	Screw Tooth:	3/8-16UNC
Screw Center Distance:	89 Mm	Cover Plate Diameter:	162.5 Mm
Pressure Ability:	0.2-0.8 M Pa	Stroke:	75~260 Mm
Net Weight:	3.35 Kg	Package Size:	242424 CM
Highlight:	Goodyear Double Convoluted Air Bag , 1003586902C , Firestone W01-358-6902

2B9-239 Goodyear Double Convoluted Air Bag Firestone W01-358-6902 For RIDEWELL 1003586902C

Goodyear 2B9-239 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth :2 pcs X 3/8-16

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4

Screw Center Distance Between Gas Hole and Nut : 44.5 mm

❸ Cover Plate

Top Cover Plate Diameter: 162.5 mm

Bottom Cover Plate Diameter: 162.5 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 260 mm

Minimum Height :75mm

Stroke Height : 285 mm

❺ Bumper block / Buffer block

WithBumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Goodyear 2B9-239 Cross others OEM

AUTOMANN
ABSP2B12R-6902

AS69020

CONTI
64509
FD 200-19 310

FIRESTONE
6902

W013586902

RIDEWELL
1003586902C

WATSON & CHALIN

AS-0002

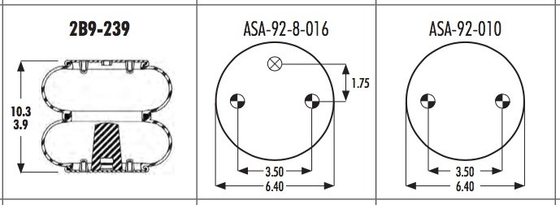

The drawing of Goodyear 2B9-239:

2B9-239 Goodyear Double Convoluted Air Bag For Ridewell 1003586902C 0

57892223900000	20106792	Y	2B9-239	2B9-239
2B9-239	20110595	N	2B9-239 Bellows Air Spring	2B9-239 Bellows Air Spring
57892224000000	20035767	Y	2B9-240 KIT	2B9-240 KIT
2B9-240	20094448	N	2B9-240 Bellows Air Spring	2B9-240 Bellows Air Spring
57892224100000	20106793	Y	2B9-241	2B9-241
57892224200000	20106794	Y	2B9-242	2B9-242
2B9-242	20110597	N	2B9-242	2B9-242
57892224300000	20106795	Y	2B9-243	2B9-243
2B9-243	20110599	N	2B9-243	2B9-243
57892224400000	20113666	Y	2B9-244	2B9-244
2B9-244	20113667	N	2B9-244 Bellows Air Spring	2B9-244 Bellows Air Spring
57892224500000	20119614	Y	2B9-245	2B9-245
2B9-245	20113706	N	2B9-245 Bellows Air Spring	2B9-245 Bellows Air Spring
57892224600000	20139383	Y	2B9-246	2B9-246
2B9-246	20139384	N	2B9-246 Bellows Air Spring	2B9-246 Bellows Air Spring
57892224900000	20169787	Y	2B9-249	2B9-249
2B9-249	20169789	N	2B9-249	2B9-249
57892225000000	20094450	Y	2B9-250 EXT	2B9-250 EXT
2B9-250	20054261	N	2B9-250 Bellows Air Spring	2B9-250 Bellows Air Spring
57892225000019	20094453	Y	ENIDINE YI-2B9-250	ENIDINE YI-2B9-250
57892225000076	20246076	Y	2B9-250 EXT - DANA S-3106-044	2B9-250 EXT - DANA S-3106-044
57892225100000	20094458	Y	2B9-251	2B9-251
2B9-251	20035830	N	2B9-251 Bellows Air Spring	2B9-251 Bellows Air Spring
57892225100019	20094461	Y	ENIDINE YI-2B9-251	ENIDINE YI-2B9-251
57892225200000	20094464	Y	2B9-252	2B9-252
2B9-252	20035831	N	2B9-252 Bellows Air Spring	2B9-252 Bellows Air Spring
57892225300000	20094470	Y	2B9-253	2B9-253
2B9-253	20035832	N	2B9-253 Bellows Air Spring	2B9-253 Bellows Air Spring
57892225300019	20094473	Y	ENIDINE YI-2B9-253	ENIDINE YI-2B9-253
57892225400000	20094476	Y	2B9-254	2B9-254
2B9-254	20035833	N	2B9-254 Bellows Air Spring	2B9-254 Bellows Air Spring
