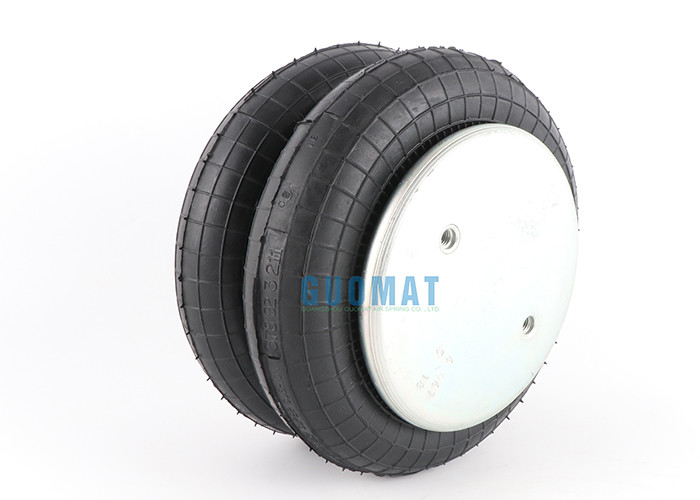

Firestone W01-358-6932 2B9-246 Goodyear Air Spring

Firestone W01-358-6932 2B9-246 Goodyear Air Spring

  • Firestone W01-358-6932 2B9-246 Goodyear Air Spring
  • Firestone W01-358-6932 2B9-246 Goodyear Air Spring
  • Firestone W01-358-6932 2B9-246 Goodyear Air Spring
Firestone W01-358-6932 2B9-246 Goodyear Air Spring
Product Details:
Place of Origin: China
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 2B9-246
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Contitech: FD200-19 452
Warranty: 12 Months Weight: 3.5 Kg
Other Name: Goodyear Air Spring Pressure Ability: 0.2-0.8 M Pa
Firestone: W01 358 6932 Goodyear: 2B9-246
Highlight:

W01-358-6932

,

2B9-246 Goodyear Air Spring

,

TRP AS69320 Double Air Bags

2B9-246 Goodyear Air Spring Firestone Double Air Bags W01-358-6932 For TRP AS69320



OEM Original Equipment Manufacturer:



AUTOMANN
ABSP2B12R-6932



TRIANGLE

4452



CONTI
64514

FD 200-19 452



TRP

AS69320



FIRESTONE
6932

W013586932



RIDEWELL
1003586932C



Reference OEM
GUOMAT NO. 2B6932
Firestone

W01-358-6932 /

W013586932 /

W01 358 6932
Contitech

FD 200-19 452 /

FD200 19 452 /

FD 20019 452
Goodyear

2B9-246 /

2B9246 /

2B9 246
Ridewell 1003586932C

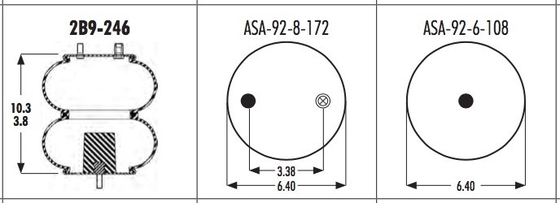

Specifications and Technical Data of 2B9-246 Goodyear



Compressed Height: 3.12 / 79mm

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut :in the middle of the plate

Top Cover Plate Screw (Nut) Tooth : 1pcsX1/2-12UNC

Bottom Cover Plate Screw (Nut) Tooth : 1pcsX 1/2-16UNC

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter 224 mm

The Working Stroke : MAX 274 mm to MIN 95 mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number:20



Firestone W01-358-6932 2B9-246 Goodyear Air Spring 0Firestone W01-358-6932 2B9-246 Goodyear Air Spring 1
