| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B8-564 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Aluminum | Goodyear: | 579-91-3-532 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 2.2 Kg |
| Other Names: | Air Lift | Pressure Ability: | 0.2-0.8 M Pa |
| Bellow No.: | 579913532 | ||
| High Light: | 579-91-3-532,3/8-16 Goodyear Air Spring |
||
1B8-564 Goodyear Air Spring Flexible Members 579-91-3-532 With Aluminum Plate 3/8-16 Bolts
Goodyear 1B8-564 Cross other OEM:
Goodyear 1B8-564
Goodyear 1B8 564
Goodyear 1B8564
Goodyear Flexible Member 579-91-3-532
Goodyear Flexible Member 579 91 3 532
Goodyear Flexible Member 579913532

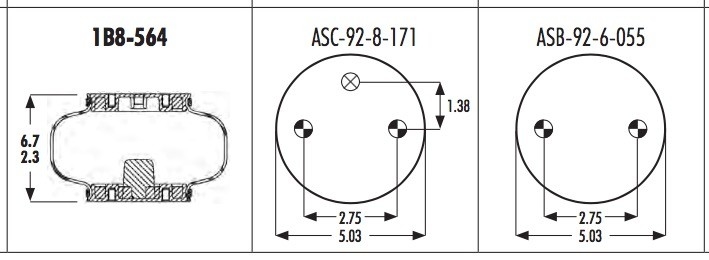

Goodyear 1B8-564 Specifications and Technical Data
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 35 mm
❸ Cover Plate
Top Cover Plate Diameter: 135 mm
Bottom Cover Plate Diameter: 135 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 240 mm
Rubber Bellows Natural Diameter : 225 mm
The Working Stroke : MIN 60 mm to MAX 180 mm
Maximum Height : 180 mm
Minimum Height :50 mm
Stroke Height : 120mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
Goodyear 1B8-564
Goodyear 579-91-3-532
SUPER-CUSHION® AIR SPRING ISOLATORS 1B8-560
Goodyear 1B8-157,
Goodyear 1B8-159,
Goodyear 1B8-560,
Goodyear 1B8-563
Goodyear 1B8-562
Goodyear 1B8-564
refet to Firestone Wo1-358-7598; 116B1116B-1
refet to Firestone W01-358-7598, W013587598, W01-358-7598,
refet to Contitech FS 120-12 CI 1/4 NPT
Airmount / Airstroke
(2) 2.75 center distance
3 / 8-16UNC, 1/4 "NPT AIR INLET
Air Springs from ITT Enidine Inc.
Single Convolute Bellow Air Spring YI-1B8-560
Maximum stroke: 3.20 inches
System natural frequency: 2.33 Hz
Height range: 4 to 6-1 / 2 inches
100 psi diameter: 9.4 inches
Spring style: single-turn curved surface type
End plate diameter: 5 inches
Force at 100 psi maximum stroke: 1600 lbs
Center distance between tapped holes: 2-3 / 4 inches
Load range at 100 psi: 1900 to 3300 pounds
Air port thread standard: UNC
Bumper Type: No
Air port thread diameter: 1/4 inch
Air port thread type: 1/4 UNC
Go
| 1B8-560 | 20095526 | N | 1B8-560 EXT | 1B8-560 EXT |
| 57991256000019 | 20095527 | Y | ENIDINE YI-1B8-560 | ENIDINE YI-1B8-560 |
| 1B8-561 | 20095528 | N | 1B8-561 AIR LIFT 58124 | 1B8-561 AIR LIFT 58124 |
| 1B8-562 | 20095529 | N | 1B8-562 | 1B8-562 |
| 57991256200019 | 20095530 | Y | ENIDINE YI-1B8-562 | ENIDINE YI-1B8-562 |
| 1B8-563 | 20095531 | N | 1B8-563 | 1B8-563 |
| 57991256300019 | 20095532 | Y | ENIDINE YI-1B8-563 | ENIDINE YI-1B8-563 |
| 57991256400000 | 20095533 | Y | 1B8-564 | 1B8-564 |
| 1B8-564 | 20449825 | N | 1B8-564 Bellows Air Spring | 1B8-564 Bellows Air Spring |
| 57991256400019 | 20095534 | Y | ENIDINE YI-1B8-564 | ENIDINE YI-1B8-564 |
| 57991256400042 | 20141113 | Y | 1B8-564 INTERNATIONAL 3547005C1 | 1B8-564 INTERNATIONAL 3547005C1 |
| 1B8-565 | 20248442 | N | 1B8-565 | 1B8-565 |
| 57991256700090 | 20810735 | Y | C 1B8-560 | C 1B8-560 |
| 57991256800091 | 20810607 | Y | P 1B8-560 | P 1B8-560 |
| 57991256900091 | 20811403 | Y | P 1B8-550 | P 1B8-550 |
| 57991257000090 | 20811604 | Y | C 1B8-562 | C 1B8-562 |
| 57991257100090 | 20811605 | Y | C 1B8-564 | C 1B8-564 |
| 57991257200090 | 20811606 | Y | C 1B8-850 | C 1B8-850 |
| 57991262700090 | 20806174 | Y | C 1B8-550 | C 1B8-550 |
| 1B5-800 | 20469101 | N | 1B5-800 | 1B5-800 |
