Place of Origin: | Guangdong , China |
Brand Name: | Goodyear |
Certification: | ISO/TS16949 |
Model Number: | 1R12-090 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | $59-159/pc |
Packaging Details: | strong carton box or as customer's need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,paypal or others |
Supply Ability: | 1000pcs/week |
Material: | Rubber Bellows ,Steel Piston | Goodyear: | 1R12-090 |
---|---|---|---|
Other Name: | Suspension Air Spring | Cover Plate OD: | 228.6 MM |
Air Inlet / Air Fitting: | M22 | Goodyear Bellow No.: | 566-24-3-038 |
PISTON: | 566-20-7-079 STEEL | ||
High Light: | FIRESTONE W013589213,1R12-090,ONTI 910-16P407 |
1R12-090 Goodyear Rolling Lobe Air Spring ONTI 910-16P407 FIRESTONE W013589213 For INT’L/ NAVISTAR 1660581C1
1R12-090 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.
1R12-090 Goodyear Air Spring-Rolling Air Bag 1R12-090 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-24-3-038, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.
OEM Cross Number:
Goodyear 1R12-090
Goodyear Flexmember 566-24-3-038
Goodyear Piston 566-20-7-079 STEEL
AUTOMANN
AB1DK23K-9213
CONTI
9 10-16 P 407 64262
DAYTON
352-9213
FIRESTONE
9213 W013589213
FLEETRITE
1R12-1060
INT’L/ NAVISTAR1660581C1 1660581C1 501559C1 501559C2
LOAD GUARD
SC2048
SPRINGRIDE
1R12-1060
TRIANGLE
8407
TRP
AS92130

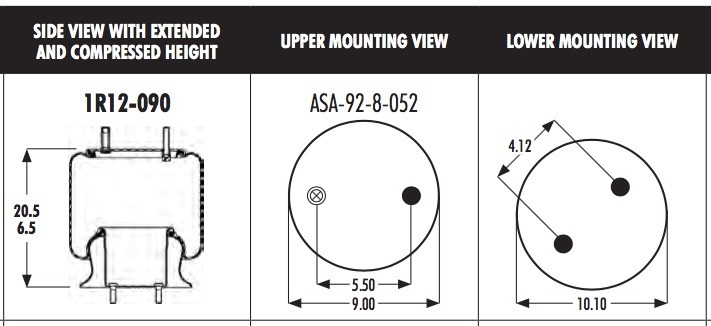

Goodyear Number: 1R12-090
Bellows type: rolling leaf
Ultraman Bellow Number: 1DK23K
Firestone bellows Number: 1T15M-6
Goodyear Bellows Number: 566-24-3-008
Contitech bellows Number: 9 10-16
Triangle bellows Number: 6363
Base plate/neutron type: steel
Number of top plate holes/studs: 2
Top plate diameter: 9
Top plate C to C diameter: 5.5
Base plate hole bolt Qyt: 2
Diameter of bottom plate: 10.1
Diameter of base plate C to C: 4.12
Base plate part number: 566-20-7-079
Bottom plate alignment: 45 degrees
Bumper: No
Bracket: Not applicable
Minimum height: 6.5
Maximum height: 20.5
56624209000000 | 20092690 | Y | 1R12-090 | 1R12-090 |
1R12-090 | 20035867 | N | 1R12-090 Rolling Lobe Air Spring | 1R12-090 Rolling Lobe Air Spring |
56624209200000 | 20054290 | Y | 1R12-092 | 1R12-092 |
1R12-092 | 20035868 | N | 1R12-092 Rolling Lobe Air Spring | 1R12-092 Rolling Lobe Air Spring |
56624209200019 | 20092705 | Y | ENIDINE YI 1R12-092 | ENIDINE YI 1R12-092 |
1R12-093 | 20035869 | N | 1R12-093 Rolling Lobe Air Spring | 1R12-093 Rolling Lobe Air Spring |
56624209500000 | 20054292 | N | SPR 1R12-095 | SPR 1R12-095 |
1R12-095 | 20035870 | N | 1R12-095 Rolling Lobe Air Spring | 1R12-095 Rolling Lobe Air Spring |
56624209500019 | 20092721 | Y | ENIDINE YI-1R12-095 | ENIDINE YI-1R12-095 |
56624209700000 | 20092731 | Y | 1R12-097 SERVICE ASSY FOR 1R12-095 | 1R12-097 SERVICE ASSY FOR 1R12-095 |
1R12-097 | 20035871 | N | 1R12-097 Rolling Lobe Air Spring | 1R12-097 Rolling Lobe Air Spring |
56624210055000 | 20470556 | Y | 1R12-1005 NABI | 1R12-1005 NABI |
56624210085000 | 20524693 | Y | 1R12-1008 | 1R12-1008 |
56624210175004 | 20583677 | Y | 1R12-1017AN | 1R12-1017AN |
56624210255004 | 20583678 | Y | 1R12-1025AN | 1R12-1025AN |
56624210285000 | 20549486 | N | 1R12-1028 | 1R12-1028 |
56624210295004 | 20583718 | Y | 1R12-1029AN | 1R12-1029AN |
56624210300000 | 20054293 | Y | 1R12-103 | 1R12-103 |
1R12-103 | 20035872 | N | 1R12-103 Rolling Lobe Air Spring | 1R12-103 Rolling Lobe Air Spring |
56624210300019 | 20092750 | Y | ENIDINE YI-1R12-103 | ENIDINE YI-1R12-103 |
56624210305004 | 20583717 | Y | 1R12-1030AN | 1R12-1030AN |
56624210315004 | 20583711 | Y | 1R12-1031AN | 1R12-1031AN |
56624210380000 | 20682766 | Y | 1R12-1038 Oshkosh 3949144 | 1R12-1038 Oshkosh 3949144 |
56624210395000 | 20590055 | Y | 1R12-1039 VOL-VO 21627074 | 1R12-1039 VOL-VO 21627074 |
