1R12-103 Goodyear Air Spring Bellows 566-24-3-066 DAYTON 352-9101

1R12-103 Goodyear Air Spring Bellows 566-24-3-066 DAYTON 352-9101

  • 1R12-103 Goodyear Air Spring Bellows 566-24-3-066 DAYTON 352-9101
1R12-103 Goodyear Air Spring Bellows 566-24-3-066 DAYTON 352-9101
Product Details:
Place of Origin: Guangdong , China
Brand Name: Goodyear
Certification: ISO/TS16949
Model Number: 1R12-103
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston Goodyear: 1R12-103
Other Name: Suspension Air Spring Cover Plate OD: 228.6 MM
Air Inlet / Air Fitting: 1/4 NPTF Goodyear Bellow No.: 566-24-3-066
PISTON: 566-20-7-006 ALUMINUM
High Light:

1R12-103

,

566-24-3-066

,

FIRESTONE W013589101

1R12-103 Goodyear Air Spring Bellows 566-24-3-066 FIRESTONE W013589101 DAYTON 352-9101





1R12-103 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

1R12-103 Goodyear Air Spring-Rolling Air Bag 1R12-103 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-24-3-066, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.





OEM Cross Number:



Goodyear 1R12-103
Goodyear Flexmember 566-24-3-066
Goodyear Piston 566-20-7-006 ALUMINUM



AUTOMANN REYCO

AB1DK23L-9101 12883-01

CONTI

9 10-19 P 315 64279

DAYTON

352-9101

FIRESTONE

9101 W013589101

RIDEWELL

1003589101C S-5828-C S-740-C

TAURUS

AS506-9093 AS509-9101

TOYO HENDRICKSON TRL-250

B-3842

TRIANGLE

8315

TRP

AS91010

TRUCKSTELL

63647

WATSON & CHALINAS-0040

INT’L/ NAVISTAR554768C1

LOAD GUARD

SC2038

NEWAY

900-44-701 905-57-008 905-57-009 905-57-082



Goodyear Number: 1R12-103

Bellows type: rolling leaf

Ultraman bellows Number: 1DK23L

Firestone bellows Number: 1T15M-9

Goodyear Bellows Number: 566-24-3-014

Contitech bellows Number: 9 10-19

Triangle bellows Number: 6364/87

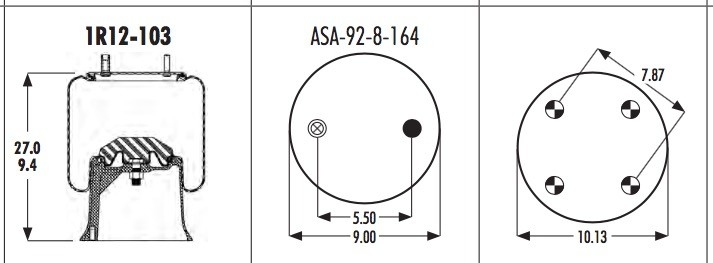

Base plate/neutron type: aluminum

Number of top plate holes/studs: 2

Top plate diameter: 9

Top plate C to C diameter: 5.5

Base plate hole bolt Qyt: 4

Diameter of base plate: 10.13

Diameter of base plate C to C: 7.87

Base plate part number: 566-20-7-006

Bottom plate alignment: 45 degrees

Bumper: Yes

Bracket: Not applicable

Minimum height: 9.4

Maximum height: 27



1R12-103 Goodyear Air Spring Bellows 566-24-3-066 DAYTON 352-9101 0



56624210300000 20054293 Y 1R12-103 1R12-103
1R12-103 20035872 N 1R12-103 Rolling Lobe Air Spring 1R12-103 Rolling Lobe Air Spring
56624210300019 20092750 Y ENIDINE YI-1R12-103 ENIDINE YI-1R12-103
56624210305004 20583717 Y 1R12-1030AN 1R12-1030AN
56624210315004 20583711 Y 1R12-1031AN 1R12-1031AN
56624210380000 20682766 Y 1R12-1038 Oshkosh 3949144 1R12-1038 Oshkosh 3949144
56624210395000 20590055 Y 1R12-1039 VOL-VO 21627074 1R12-1039 VOL-VO 21627074
56624210395035 20612708 Y VOL-VO 21627074 1R12-1039 VOL-VO 21627074 1R12-1039
56624210405000 20613773 Y 1R12-1040 Mac-k truck 21627076 1R12-1040 Mac-k truck 21627076
56624210405049 20612709 Y 1R12-1040 Mac-k truck 21627076 1R12-1040 Mac-k truck 21627076
56624210415000 20630333 Y 1R12-1041 Mac-k truck 21669088 1R12-1041 Mac-k truck 21669088
56624210415049 20630841 Y 1R12-1041 Mac-k truck 21669088 1R12-1041 Mac-k truck 21669088
56624210425071 20615249 Y 1R12-1042 MITSUBISHI SERVICE ASSBLY 1R12-1042 MITSUBISHI SERVICE ASSBLY
1R12-1047 20689392 N 1R12-1047 Rolling Lobe Air Spring 1R12-1047 Rolling Lobe Air Spring
1R12-1048 20737250 N 1R12-1048 Rolling Lobe Air Spring 1R12-1048 Rolling Lobe Air Spring
1R12-1049 20672740 N 1R12-1049 Rolling Lobe Air Spring 1R12-1049 Rolling Lobe Air Spring
56624210500000 20682658 Y 1R12-1050 PREVOST 630285 1R12-1050 PREVOST 630285
56624210515000 20689480 Y VOL-VO 22039026 1R12-1051 VOL-VO 22039026 1R12-1051
56624210515035 20689483 Y VOL-VO 22039026 1R12-1051 VOL-VO 22039026 1R12-1051
56624210600000 20466778 Y 1R12-106 NOVABUS PROTOTYPE 1R12-106 NOVABUS PROTOTYPE
1R12-1060 20682283 N 1R12-1060 FLT1R12090 1R12-1060 FLT1R12090
1R12-1061 20682286 N 1R12-1061 FLT1R12095 1R12-1061 FLT1R12095
1R12-1065 20713600 N 1R12-1065 1R12-1065
1R12-1065 BULK 20713089 N 1R12-1065 BULK 1R12-1065 BULK
