1R12-132 Goodyear Air Spring 566-24-3-076 W013589105 HDA PMABG-9105B

1R12-132 Goodyear Air Spring 566-24-3-076 W013589105 HDA PMABG-9105B

  • 1R12-132 Goodyear Air Spring 566-24-3-076 W013589105 HDA PMABG-9105B
1R12-132 Goodyear Air Spring 566-24-3-076 W013589105 HDA PMABG-9105B
Product Details:
Place of Origin: Guangdong , China
Brand Name: Goodyear
Certification: ISO/TS16949
Model Number: 1R12-132
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,ALUMINUM Piston Goodyear: 1R12-132
Other Name: Suspension Air Spring Cover Plate OD: 228.6 MM
GRANNING: 5065 Goodyear Bellow No.: 566-24-3-008
CONTItech: 9 10-12 P 319 PISTON: 566-20-7-036 ALUMINUM
High Light:

W013589105

,

CONTI 910-12P319

,

1R12-132

1R12-132 Goodyear Air Spring 566-24-3-076 FIRESTONE W013589105 CONTI 910-12P319 HDA PMABG-9105B





1R12-132 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

1R12-132 Goodyear Air Spring-Rolling Air Bag 1R12-132 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-24-3-076, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.





OEM Cross Number:



Goodyear 1R12-132
Goodyear Flexmember 566-24-3-076
Goodyear Piston 566-20-7-036 ALUMINUM

AUTOMANN LOAD GUARD

AB1DK23H-9105 SC2039

AB1DK23H-9113 AB1DK23H-9302

CONTI

9 10-12 P 319 64445

DAYTON

352-9105

FIRESTONE

9105
9113
9302
9303 W013589105 W013589302

GRANNING

5065

HDA

PMABG-9105B

HENDRICKSON

36514-3 B-1245

INT’L/NAVISTAR

554770C1



R&S TRUCK & BODY1090276

RIDEWELL

1003580725C 1003589105C S-570-C

SAUR AXLES

P50-705

TAURUS

AS302-9302 AS502-0725 AS502-9105 AS502-9113

TRIANGLE

8319

TRP

AS93020

WATSON & CHALINAS-0015

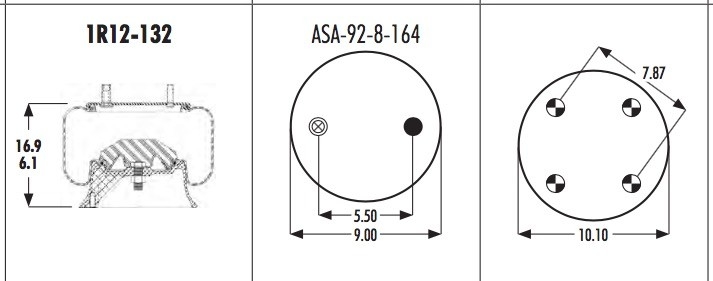

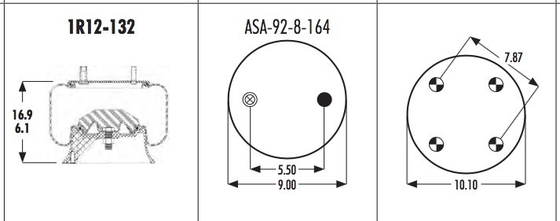

Goodyear Number: 1R12-132

Bellows type: rolling leaf

Automann Bellow Number: 1DK23H

Firestone bellows Number: 1T15M-2

Goodyear Bellows Number: 566-24-3-076

Contitech bellows Number: 9 10-12

Triangle bellows Number: 6361, 6388

Base plate/neutron type: aluminum

Number of top plate holes/studs: 2

Top plate diameter: 9

Top plate C to C diameter: 5.5

Base plate hole bolt Qyt: 4

Diameter of bottom plate: 10.1

Diameter of base plate C to C: 7.87

Base plate part number: 566-20-7-036

Bottom plate alignment: 45 degrees

Bumper: Yes

Bracket: Not applicable

Minimum height: 6.1

Maximum height: 16.9



1R12-132 Goodyear Air Spring 566-24-3-076 W013589105 HDA PMABG-9105B 0
