1R12-281 Goodyear Air Spring 566-24-3-066 AUTOMANN AB1DK23L-9130

1R12-281 Goodyear Air Spring 566-24-3-066 AUTOMANN AB1DK23L-9130

  • 1R12-281 Goodyear Air Spring 566-24-3-066 AUTOMANN AB1DK23L-9130
1R12-281 Goodyear Air Spring 566-24-3-066 AUTOMANN AB1DK23L-9130
Product Details:
Place of Origin: Guangdong , China
Brand Name: Goodyear
Certification: ISO/TS16949
Model Number: 1R12-281
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston Goodyear: 1R12-281
Other Name: Suspension Air Spring Cover Plate OD: 228.6 MM
Air Inlet / Air Fitting: 1/4 NPTF Goodyear Bellow No.: 566-20-7-080 COMPOSITE
PISTON: 566-24-3-066
High Light:

566-24-3-066

,

1R12-281

,

FIRESTONE W013589130

1R12-281 Goodyear Air Spring Auto Parts 566-24-3-066 FIRESTONE W013589130 For AUTOMANN AB1DK23L-9130





1R12-281 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

1R12-281 Goodyear Air Spring-Rolling Air Bag 1R12-281 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-24-3-066, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.





OEM Cross Number:



Goodyear 1R12-281
Goodyear Flexmember 566-24-3-066
Goodyear Piston 566-20-7-080 COMPOSITE



AUTOMANN FIRESTONE AB1DK23L-9130 CONT. AB1DK23L-9350 W013589130 AB1DK23L-9394 W013589394 AB1DK23L-P946
CONTI
UCE-9393-1 UCE-9393-3 UCE-9393-4
9 10-19 A 358 64327
25.2 9.0
DAYTON
TRIANGLE
352-9130
8321
FIRESTONE
TRP
9030 9394
AS91300

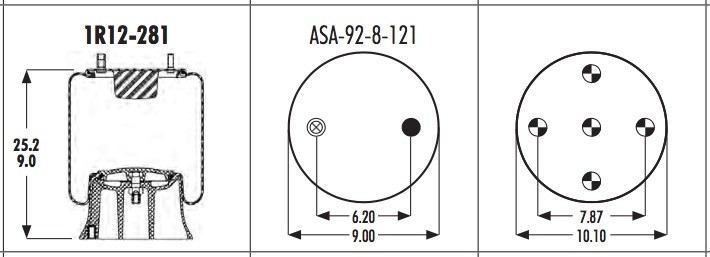

Goodyear Number: 1R12-281

Bellows type: rolling leaf

Ultraman bellows Number: 1DK23L

Firestone bellows Number: 1T15M-9

Goodyear Bellows Number: 566-24-3-066

Contitech bellows Number: 9 10-19

Triangle bellows Number: 6364/87

Base plate/neutron type: composite material

Number of top plate holes/studs: 2

Top plate diameter: 9

Top plate C to C diameter: 6.2

Base plate hole bolt Qyt: 5

Diameter of bottom plate: 10.1

Diameter of base plate C to C: 7.87

Base plate part number: 566-20-7-080

Bottom plate alignment: parallel

Bumper: Yes

Bracket: Not applicable

Minimum height: 9

Maximum height: 25.2



1R12-281 Goodyear Air Spring 566-24-3-066 AUTOMANN AB1DK23L-9130 0



56624226000004 20132916 Y 1R12-260 1R12-260
56624226100000 20093010 Y 1R12-261 1R12-261
1R12-261 20093011 N 1R12-261 Rolling Lobe Air Spring 1R12-261 Rolling Lobe Air Spring
56624226400000 20093014 Y 1R12-264 1R12-264
56624226500000 20093019 Y 1R12-265, USE 1R12-167 1R12-265, USE 1R12-167
1R12-265 20093020 N 1R12-265 Rolling Lobe Air Spring 1R12-265 Rolling Lobe Air Spring
56624226600000 20093022 Y 1R12-266 HNDRCK C20223SEE 1R12-329 1R12-266 HNDRCK C20223SEE 1R12-329
56624226900000 20093025 Y FRTLNR 1R12-269 FRTLNR 1R12-269
56624227100000 20093026 Y 1R12-271 HNDRCK C20217 REP 1R12-330 1R12-271 HNDRCK C20217 REP 1R12-330
56624227200000 20093029 Y 1R12-272 1R12-272
56624227200004 20110384 Y 1R12-272 1R12-272
56624227200019 20093028 Y ENIDINE YI-1R12-272 ENIDINE YI-1R12-272
56624227400000 20093031 Y 1R12-274 1R12-274
1R12-274 20116880 N 1R12-274 Rolling Lobe Air Spring 1R12-274 Rolling Lobe Air Spring
56624227400019 20093032 Y ENIDINE YI-1R12-274 ENIDINE YI-1R12-274
1R12-275 20093035 N 1R12-275 1R12-275
1R12-279 20093043 N 1R12-279 REP BY 1R12-281(20035891) 1R12-279 REP BY 1R12-281(20035891)
56624228100000 20093050 Y 1R12-281 1R12-281
56624228100001 20054307 Y GENTDE 1R12-281 GENTDE 1R12-281
1R12-281 20035891 N 1R12-281 Rolling Lobe Rep 1R12-279 1R12-281 Rolling Lobe Rep 1R12-279
56624228300000 20093056 Y 1R12-283 HENDRICKSON B-4375 1R12-283 HENDRICKSON B-4375
56624228400000 20093058 Y 1R12-284 1R12-284
1R12-284 20116881 N 1R12-284 Rolling Lobe Air Spring 1R12-284 Rolling Lobe Air Spring
56624228500000 20093060 Y 1R12-285 1R12-285
1R12-285 20116882 N 1R12-285 Rolling Lobe Air Spring 1R12-285 Rolling Lobe Air Spring
56624228600000 20093061 Y 1R12-286 1R12-286
56624228800000 20093063 Y MCI 12C-1-126 1R12-288 MCI 12C-1-126 1R12-288
1R12-288 20116883 N 1R12-288 Rolling Lobe Air Spring 1R12-288 Rolling Lobe Air Spring
56624228900000 20093064 Y 1R12-289 1R12-289
56624228900004 20116884 Y 1R12-289 1R12-289
56624229000000 20054308 Y SPR 1R12-290 SPR 1R12-290
56624229400004 20116885 Y 1R12-294 1R12-294
56624229500000 20093067 Y 1R12-295 1R12-295
56624229500004 20116886 Y 1R12-295 1R12-295
56624229600000 20093068 Y 1R12-296 1R12-296
56624229600004 20116887 Y 1R12-296 1R12-296
56624230300000 20093076 Y 1R12-303 1R12-303
