1R14-037 Goodyear Air Spring Flexmember 566-28-3-015 FIRESTONE W013589215 For HENDRICKSON B-3648

1R14-037 Goodyear Air Spring Flexmember 566-28-3-015 FIRESTONE W013589215 For HENDRICKSON B-3648

  • 1R14-037 Goodyear Air Spring Flexmember 566-28-3-015 FIRESTONE W013589215 For HENDRICKSON B-3648
1R14-037 Goodyear Air Spring Flexmember 566-28-3-015 FIRESTONE W013589215 For HENDRICKSON B-3648
Product Details:
Place of Origin: Guangdong , China
Brand Name: GOODYEAR
Certification: ISO/TS16949
Model Number: 1R14-037
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston GOODYEAR: 1R14-037
Other Name: Air Spring Shock CONTITECH: 11 10 5-15 A 414
Flexi Member: 566283015 USA: Imported From USA
High Light:

566-28-3-015

1R14-037 Goodyear Air Spring Flexmember Number 566-28-3-015 FIRESTONE W013589215 For HENDRICKSON B-3648





OEM Cross Number:



GOODYEAR 1R14-037

Flexi Member 566-28-3-015

UTOMANN
AB1DK28L-9215
HENDRICKSON
B-3648
CONTI
11 10 5-15 A 414 64424
DAYTON
352-9215
FIRESTONE
9215 W013589215
INT’L/ NAVISTAR 554781C1
LOAD GUARD SC2047
TRIANGLE
8414





OEM Suspension Supplier Number:



Goodyear Number: 1R14-037

Bellows type: rolling leaf

Ultraman bellows Number: 1DK28L

Firestone bellows Number: 1T19F-5, 1T19L-5

Goodyear Bellows Number: 566-28-3-015

Contitech bellows Number: 11 10.5-15

Triangle bellows Number: 6417

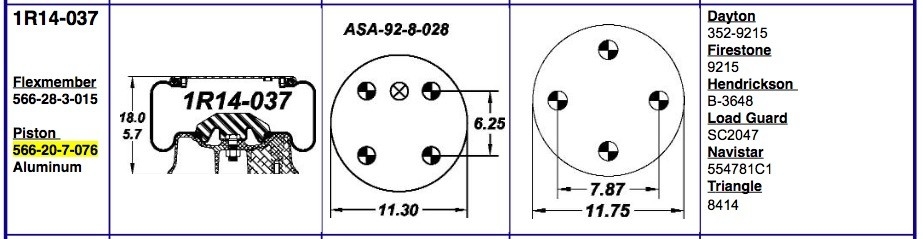

Base plate/neutron type: aluminum

Number of top plate holes/studs: 5

Top plate diameter: 11.3

Top plate C to C diameter: 6.25

Base plate hole bolt Qyt: 4

Diameter of base plate: 11.7

Diameter of base plate C to C: 7.87

Base plate part number: 566-20-7-334

Bottom plate alignment: 45 degrees

Bumper: Yes

Bracket: Not applicable

Minimum height: 5.7

Maximum height: 18



The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT





screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.



Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.



Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.



Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.



Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.



Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.



Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.





1R14-037 Goodyear Air Spring Flexmember 566-28-3-015 FIRESTONE W013589215 For HENDRICKSON B-3648 0



56628202400000 20093959 Y 1R14-024 1R14-024
1R14-024 20035935 N 1R14-024 Rolling Lobe Air Spring 1R14-024 Rolling Lobe Air Spring
1R14-025 20035936 N 1R14-025 Rolling Lobe Air Spring 1R14-025 Rolling Lobe Air Spring
56628202600000 20093973 Y 1R14-026 1R14-026
1R14-026 20035937 N 1R14-026 Rolling Lobe Air Spring 1R14-026 Rolling Lobe Air Spring
1R14-027 20035938 N 1R14-027 Rolling Lobe Air Spring 1R14-027 Rolling Lobe Air Spring
56628202800000 20069098 N 1R14-028 1R14-028
1R14-028 20035939 N 1R14-028 Rolling Lobe Air Spring 1R14-028 Rolling Lobe Air Spring
1R14-029 20094001 N 1R14-029 Rolling Lobe Air Spring 1R14-029 Rolling Lobe Air Spring
56628203000000 20094006 Y 1R14-030 1R14-030
1R14-030 20035941 N 1R14-030 Rolling Lobe Air Spring 1R14-030 Rolling Lobe Air Spring
1R14-031 20035942 N 1R14-031 Rolling Lobe Air Spring 1R14-031 Rolling Lobe Air Spring
56628203700000 20094030 Y 1R14-037 1R14-037
1R14-037 20035943 N 1R14-037 Rolling Lobe Air Spring 1R14-037 Rolling Lobe Air Spring
56628203700019 20094033 Y ENIDINE YI-1R14-037 ENIDINE YI-1R14-037
56628203700038 20524399 Y 1R14-037 HENDRICKSON B-3648 1R14-037 HENDRICKSON B-3648
56628203800000 20094042 Y 1R14-038 1R14-038
1R14-038 20035944 N 1R14-038 Rolling Lobe Air Spring 1R14-038 Rolling Lobe Air Spring
56628203900000 20094050 Y 1R14-039 1R14-039
1R14-039 20035945 N 1R14-039 Rolling Lobe Air Spring 1R14-039 Rolling Lobe Air Spring
1R14-039 PALLET 20476265 N 1R14-039 FOR MDC 1R14-039 FOR MDC
56628203900077 20215628 Y 1R14-039 WATSON & CHALIN AS0039 1R14-039 WATSON & CHALIN AS0039
