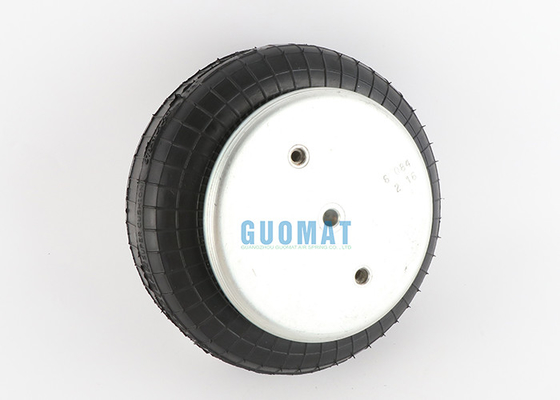

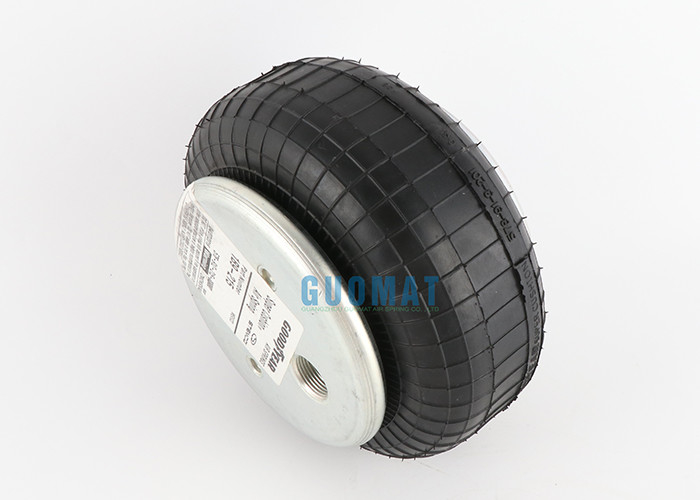

1B9-204 Goodyear Air Spring Flex 578-91-3-201 For Construction Equipment

1B9-204 Goodyear Air Spring Flex 578-91-3-201 For Construction Equipment

  • 1B9-204 Goodyear Air Spring Flex 578-91-3-201 For Construction Equipment
  • 1B9-204 Goodyear Air Spring Flex 578-91-3-201 For Construction Equipment
  • 1B9-204 Goodyear Air Spring Flex 578-91-3-201 For Construction Equipment
1B9-204 Goodyear Air Spring Flex 578-91-3-201 For Construction Equipment
Product Details:
Place of Origin: China
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 1B9-204
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel Goodyear: 1B9-204
Warranty: 12 Months Weight: 1.81 Kg
Other Name: Air Springs Pneumatic Pressure Ability: 0.2-0.8 M Pa
Goodyear Another OEM: 578913201
High Light:

1B9-204 Goodyear Air Spring

,

578-91-3-201

,

0.2 MPa Goodyear Air Spring

1B9-204 Goodyear Air Spring Auto Parts Flex 578-91-3-201 For Construction Equipment





OEM Original Equipment Manufacturer:



Goodyear Part NO.: 1B9-204

Goodyear Part NO.: 1B9 204

Goodyear Part NO.: 1B9204

Goodyear Bellows NO.:  578-91-3-201

Goodyear Bellows NO.: 578 91 3 201

Goodyear Bellows NO.: 578913201





Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2 NPT

Center Distance Between Nut and Air inlet: 44.5 mm



Cover Plate

Top Cover Plate Diameter (Width): 160 mm

Bottom Cover Plate Diameter (Width): 160 mm



Rubber Bellows

Rubber Bellows Diameter : 222 mm

Compressed Height: 100 mm / 4.1 inches

Maximum Height: 160 mm

Working Stroke : 60 mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :No of Girdle Hoop



SPRING FEATURES

LOAD RANGE(ISOLATOR)........

.640-3900|b

DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in

USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in

USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in

ASSEMBLY WE I GHT

FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib

NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in





1B9-204 Goodyear Air Spring Flex 578-91-3-201 For Construction Equipment 01B9-204 Goodyear Air Spring Flex 578-91-3-201 For Construction Equipment 1





Other kinds of goodyear air springs:



57891220400000 20094264 Y 1B9-204 1B9-204
1B9-204 20116163 N 1B9-204 1B9-204
57891220400019 20094266 Y ENIDINE YI-1B9-204 ENIDINE YI-1B9-204
57891220500000 20094267 Y 1B9-205 1B9-205
57891220500004 20116164 Y 1B9-205 1B9-205
57891220500019 20094268 Y ENIDINE YI-1B9-205 ENIDINE YI-1B9-205
57891220700000 20094269 Y 1B9-207 1B9-207
57891220700004 20116165 Y 1B9-207 1B9-207
57891220700019 20094270 Y ENIDINE YI-1B9-207 ENIDINE YI-1B9-207
57891220800000 20094271 Y 1B9-208 1B9-208
57891220800004 20116166 Y 1B9-208 1B9-208
57891220800019 20094272 Y ENIDINE YI-1B9-208 ENIDINE YI-1B9-208

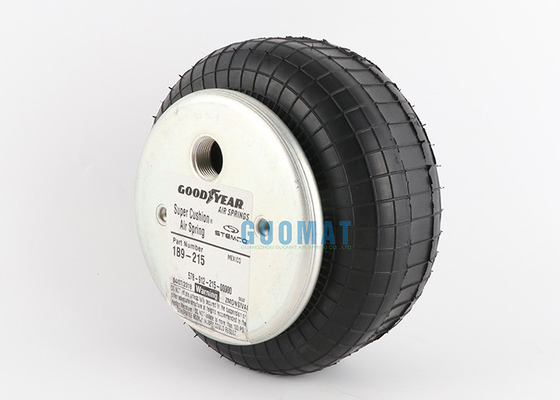

57891221500000 20094277 Y 1B9-215 1B9-215
57891221500019 20094278 Y ENIDINE YI-1B9-215 ENIDINE YI-1B9-215
57891221600000 20175039 Y 1B9-216 1B9-216
1B9-216 20175183 N 1B9-216 1B9-216
57891221700095 20805668 Y P 1B9-202 P 1B9-202
57891221800094 20810946 Y C 1B9-202 C 1B9-202
57891221900094 20811429 Y C 1B9-207 C 1B9-207
