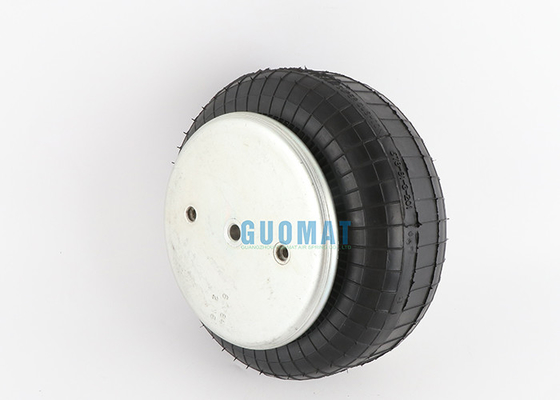

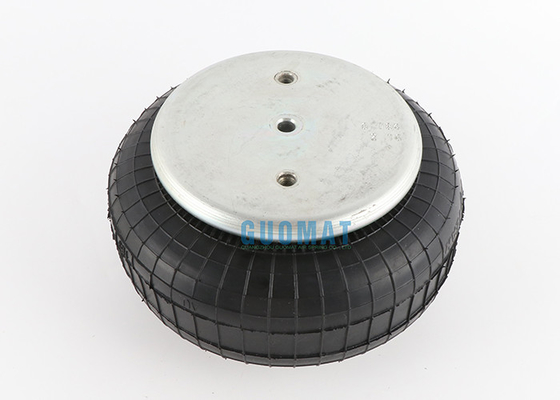

1B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton

1B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton

  • 1B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton
  • 1B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton
  • 1B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton
1B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton
Product Details:
Place of Origin: China
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 1B9-208
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel Goodyear: 1B9-208
Warranty: 12 Months Weight: 1.81 Kg
Other Name: Air Springs Actuators Pressure Ability: 0.2-0.8 M Pa
Goodyear Another OEM: 578913201
High Light:

1B9-208 Goodyear Air Springs

,

YI1B9-208

,

0.8 MPa Goodyear Air Springs

Actuators 1B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton





1B9-208 OEM Original Equipment Manufacturer:



Goodyear Part NO.: 1B9-208

Goodyear Part NO.: 1B9 208

Goodyear Part NO.: 1B9208

Goodyear Bellows NO.:  578-91-3-201

Goodyear Bellows NO.: 578 91 3 201

Goodyear Bellows NO.: 578913201





1B9-208 Goodyear Air Spring Parameter Description:



Maximum stroke 2.90 inches
Height range 4-1/2 to 5 inches
Spring type single convolution
Forced at a maximum stroke of 100 psi 2850 pounds
Load range of 3200 to 3900 pounds at 100 psi
Bumper type none
Air port thread type 3/4 UNC
System natural frequency 2.50 Hz
100 psi (11 inches) in diameter
End plate diameter 6.4 inches
Tap pitch 3-1/2 inches
Port thread standard UNC
Air port thread diameter 3/4 in
Raw latex



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4 NPT

Center Distance Between Nut and Air inlet: 44.5 mm



Cover Plate

Top Cover Plate Diameter (Width): 160 mm

Bottom Cover Plate Diameter (Width): 160 mm



Rubber Bellows

Rubber Bellows Diameter : 222 mm

Compressed Height: 100 mm / 4.1 inches

Maximum Height: 160 mm

Working Stroke : 60 mm



Bumper block / Buffer block

With  Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :No of Girdle Hoop



1B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton 01B9-208 Goodyear Air Springs Enidine YI1B9-208 With 3/4 Air Inlet Load One Ton 1
