1R12-424 Goodyear Air Spring 566-24-1-012 W01-358-9287 For Hendrickson 50405

1R12-424 Goodyear Air Spring 566-24-1-012 W01-358-9287 For Hendrickson 50405

  • 1R12-424 Goodyear Air Spring 566-24-1-012 W01-358-9287 For Hendrickson 50405
1R12-424 Goodyear Air Spring 566-24-1-012 W01-358-9287 For Hendrickson 50405
Product Details:
Place of Origin: GUANGZHOU CHINA(MAIN LAND)
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 1R12-424
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: $59
Packaging Details: CARTON/CARTONS
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C,PayPal
Supply Ability: 1000
Contact Now
Detailed Product Description
TYPE: ROLLING LOBE AIR SPRING Goodyear: 566241012
MATERIAL: NATRAL RUBBER PACKAGE: STRONG CARTONS
MODEL: TRUCK HENDRICKSON 50405 WARRANTY: 12 MONTHS
CONDITION: NEW
High Light:

1R12-424 Goodyear Air Spring

,

566-24-1-012

,

W01-358-9287

Truck Air Springs 1R12-424 Goodyear 566-24-1-012 FIRESTONE W01-358-9287 FOR HENDRICKSON 50405





Product Information



Goodyear NO. : 1R12-424

VEHICLE TYPE: Truck

POSITION: The Floating Bridge





1R12-424 Goodyear OEM REFERENCES



GOODYEAR Part NO.:1R12-424 /

GOODYEAR Part NO.:1R12 424 /

GOODYEAR Part NO.:1R12424

GOODYEAR Part NO.:566-24-3-097 /

GOODYEAR BELLOWS NUMBER:566 24 3 097 /

GOODYEAR BELLOWS NUMBER:566243097

GOODYEAR Part NO.: 1S12-027 /

GOODYEAR Part NO.:1S12 027 /

GOODYEAR Part NO.:1S12027

GOODYEAR BELLOWS NUMBER:566-24-1-012 /

GOODYEAR BELLOWS NUMBER:566 24 1 012 /

GOODYEAR BELLOWS NUMBER:566241012



GOODYEAR BELLOWS NUMBER

566-24-1-001 / 566 24 1 001 / 566241001

566-24-1-240 / 566 24 1 240 / 566241240

566-24-3-077 / 566 24 3 077 / 566243077

566-24-3-225 / 566 24 3 225 / 566243225



FIRESTONE Bellows NO.:1T15MT-8 /

FIRESTONE Bellows NO.:1T15MT 8 /

FIRESTONE Bellows NO.:1T15MT8

FIRESTONE Part NO.:W01-358-9287 /

FIRESTONE Part NO.:W01 358 9287 /

FIRESTONE Part NO.:W013589287





CONTITECH Part NO.:9 10-18.5 P 406 /

CONTITECH Part NO.:910-18.5P406 /

CONTITECH Part NO.:9 10-18.5 P 406







1R12-424 Goodyear VEHICLE OEM REFERENCES



HENDRICKSON 50405

HENDRICKSON 50405-1

HENDRICKSON 50405-2

HENDRICKSON 50898-2

HENDRICKSON HA-360/400/460

TRIANGLE 8406 6391

Triangle Part Number: 8406

Triangle Bellows Number: 6391





1R12-424 Goodyear Technical Parameters



Top Plate Number 3313

Piston Number 9561

Extended Height: 22.00

Compressed Height: 8.10

Top Plate Width: 9.00

Piston Width: 10.00

Bolt or Stud 1/2-13

Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons

Air Inlet 1/4 N.P.T

Combination Stud/Air Inlet Stud Outside Thread is 3/4-16

Studs Inside Thread (Air Inlet) is 1/4 N.P.T.





ABOUT US...



  Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT.Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system.They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
  Our goal is to make your choice easier and save your money. We serve customers world-wide by offering qualitygoods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
  Give us your trust and we'll help you to repair or update your car!





The warranty period of Air Spring



1R12-424 Goodyear air spring  made of high quality materials(natural rubber), the warranty period of One Year.

  Our air spring provide high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

  Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.

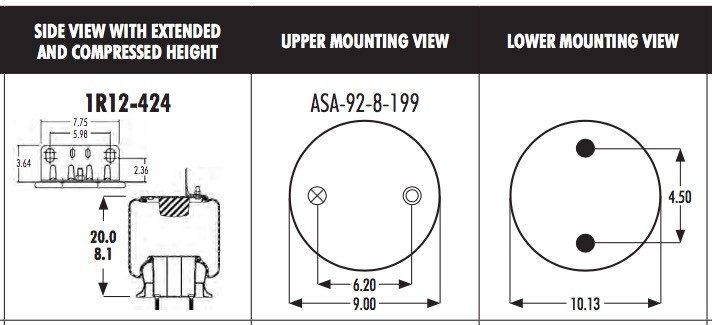

The drawing of 1R12-424 Goodyear:



1R12-424 Goodyear Air Spring 566-24-1-012 W01-358-9287 For Hendrickson 50405 0



1R12-424 20035918 N 1R12-424 Rolling Lobe Air Spring 1R12-424 Rolling Lobe Air Spring
56624243100000 20093338 Y 1R12-431 1R12-431
56624243200000 20112842 Y 3541731C1 1R12-432 3541731C1 1R12-432
1R12-432 20134896 N 1R12-432 Rolling Lobe Air Spring 1R12-432 Rolling Lobe Air Spring
56624243200042 20134895 Y 3541731C1 1R12-432 3541731C1 1R12-432
56624243400000 20093345 Y 1R12-434 1R12-434
1R12-434 20093346 N 1R12-434 Rolling Lobe Air Spring 1R12-434 Rolling Lobe Air Spring
56624243500000 20093348 Y 1R12-435 1R12-435
1R12-435 20128712 N 1R12-435 Rolling Lobe Air Spring 1R12-435 Rolling Lobe Air Spring
56624243600000 20093352 Y 1R12 436 1R12 436
1R12-436 20093353 N 1R12-436 Rolling Lobe Air Spring 1R12-436 Rolling Lobe Air Spring
56624243700000 20093354 Y 1R12-437 1R12-437
1R12-437 20093357 N 1R12-437 Rolling Lobe Air Spring 1R12-437 Rolling Lobe Air Spring
56624243800000 20093358 Y 1R12 438 1R12 438
1R12-438 20093361 N 1R12-438 Rolling Lobe Air Spring 1R12-438 Rolling Lobe Air Spring
56624243900000 20093362 Y 1R12-439 1R12-439
1R12-439 20117695 N 1R12-439 Rolling Lobe Air Spring 1R12-439 Rolling Lobe Air Spring
56624244000000 20093364 Y 1R12-440 1R12-440
56624244100000 20093367 Y 1R12-441 1R12-441
1R12-441 20093368 N 1R12-441 Rolling Lobe Air Spring 1R12-441 Rolling Lobe Air Spring
56624244200000 20093374 Y 1R12-442 1R12-442
56624244300000 20093375 Y 1R12-443 1R12-443
56624244400000 20093377 Y 1R12-444 1R12-444
1R12-444 20117696 N 1R12-444 Rolling Lobe Air Spring 1R12-444 Rolling Lobe Air Spring
56624244500000 20093379 Y 1R12-445 1R12-445
1R12-445 20138451 N 1R12-445 Rolling Lobe Air Spring 1R12-445 Rolling Lobe Air Spring
56624244600000 20093380 Y 1R12-446 1R12-446
1R12-446 20117694 N 1R12-446 Rolling Lobe Air Spring 1R12-446 Rolling Lobe Air Spring
56624244800000 20093384 Y 1R12-448 1R12-448
56624244800004 20272178 Y 1R12-448 1R12-448
56624245000000 20093387 Y 1R12-450 TUTHILL 2727 1R12-450 TUTHILL 2727
1R12-450 20236776 N 1R12-450 Rolling Lobe Air Spring 1R12-450 Rolling Lobe Air Spring
56624245100000 20093388 Y 1R12-451 1R12-451
56624245200000 20093389 Y 1R12-452 1R12-452
