1R12-1048 Goodyear Air Spring 566-24-3-097 Piston 566-20-7-158

1R12-1048 Goodyear Air Spring 566-24-3-097 Piston 566-20-7-158

  • 1R12-1048 Goodyear Air Spring 566-24-3-097 Piston 566-20-7-158
1R12-1048 Goodyear Air Spring 566-24-3-097 Piston 566-20-7-158
Product Details:
Place of Origin: Guangdong , China
Brand Name: Goodyear
Certification: ISO/TS16949
Model Number: 1R12-1048
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston Goodyear: 1R12-1048
Other Name: Suspension Air Spring Cover Plate OD: 228.6 MM
PISTON: 566-20-7-158 Goodyear Bellow No.: 566-24-3-097
FIRESTONE: W013589974 Firestone Bellows Number: 1T15M-7.5
High Light:

566-24-3-097

,

566-20-7-158

,

FIRESTONE W013589974

1R12-1048 Goodyear Air Spring 566-24-3-097 PISTON 566-20-7-158 FIRESTONE W013589974





1R12-1048 Goodyear OEM Cross Number:



Goodyear 1R12-1048
Goodyear Flexmember 566-24-3-097

AUTOMANN

AB1DK23P-9974

CONTI

9 10-17 5 A 930 67586

FIRESTONE

9974 W013589974

TRP

AS99740

1R12-1048 Goodyear rolling cam air spring

Goodyear Number:: 1R12-1048

Bellows type: rolling leaf

Ultraman bellows Number:: 1DK23P

Firestone bellows Number:: 1T15M-7.5

Goodyear Bellows Number:: 566-24-3-097

Contitech bellows Number:: 9 10-17.5

Triangle bellows Number:: 6364/69/91/6414





1R12-1048 Goodyear specification and size:



Base plate/neutron type: composite material

Number of top plate holes/studs: 2 pcs

Top plate diameter: 9 inch

Top plate C to C diameter: 5.5

Base plate hole bolt Qyt: 1 pcs

Base plate diameter: 9.8 inch

Diameter of base plate C to C: N/A

Base plate part number: 566-20-7-097

Bottom plate alignment: parallel

Bumper: No

Bracket: Not applicable

Minimum height: 7.3 inch

Maximum height: 23.2 inch

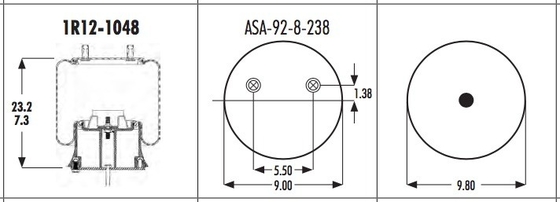

The drawing of 1R12-1048 Goodyear



1R12-1048 Goodyear Air Spring 566-24-3-097 Piston 566-20-7-158 0



56624210305004 20583717 Y 1R12-1030AN 1R12-1030AN
56624210315004 20583711 Y 1R12-1031AN 1R12-1031AN
56624210380000 20682766 Y 1R12-1038 Oshkosh 3949144 1R12-1038 Oshkosh 3949144
56624210395000 20590055 Y 1R12-1039 VOLVO 21627074 1R12-1039 VOLVO 21627074
56624210395035 20612708 Y VOLVO 21627074 1R12-1039 VOLVO 21627074 1R12-1039
56624210405000 20613773 Y 1R12-1040 MACK 21627076 1R12-1040 MACK 21627076
56624210405049 20612709 Y 1R12-1040 MACK 21627076 1R12-1040 MACK 21627076
56624210415000 20630333 Y 1R12-1041 MACK 21669088 1R12-1041 MACK 21669088
56624210415049 20630841 Y 1R12-1041 MACK 21669088 1R12-1041 MACK 21669088
56624210425071 20615249 Y 1R12-1042 MITSUBISHI SERVICE ASSBLY 1R12-1042 MITSUBISHI SERVICE ASSBLY
1R12-1047 20689392 N 1R12-1047 Rolling Lobe Air Spring 1R12-1047 Rolling Lobe Air Spring
1R12-1048 20737250 N 1R12-1048 Rolling Lobe Air Spring 1R12-1048 Rolling Lobe Air Spring
1R12-1049 20672740 N 1R12-1049 Rolling Lobe Air Spring 1R12-1049 Rolling Lobe Air Spring
56624210500000 20682658 Y 1R12-1050 PREVOST 630285 1R12-1050 PREVOST 630285
56624210515000 20689480 Y VOLVO 22039026 1R12-1051 VOLVO 22039026 1R12-1051
56624210515035 20689483 Y VOLVO 22039026 1R12-1051 VOLVO 22039026 1R12-1051
56624210600000 20466778 Y 1R12-106 NOVABUS PROTOTYPE 1R12-106 NOVABUS PROTOTYPE
1R12-1060 20682283 N 1R12-1060 FLT1R12090 1R12-1060 FLT1R12090
1R12-1061 20682286 N 1R12-1061 FLT1R12095 1R12-1061 FLT1R12095
1R12-1065 20713600 N 1R12-1065 1R12-1065
1R12-1065 BULK 20713089 N 1R12-1065 BULK 1R12-1065 BULK
56624210660000 20733971 Y 1R12-1066 PREVST 630286 Tag Blk Pck 1R12-1066 PREVST 630286 Tag Blk Pck
56624210660004 20697200 Y 1R12-1066 Prevost Tag Axle 1R12-1066 Prevost Tag Axle
56624210670000 20744274 Y 1R12-1067 1R12-1067
56624210695083 20682230 Y 1R12-1069 FLT1R12069 1R12-1069 FLT1R12069
1R12-1069 20746469 N 1R12-1069 SPRINGRIDE 1R12-069 1R12-1069 SPRINGRIDE 1R12-069
56624210705083 20682232 Y 1R12-1070 FLT1R12092 1R12-1070 FLT1R12092
1R12-1070 20746480 N 1R12-1070 SPRINGRIDE 1R12-092 1R12-1070 SPRINGRIDE 1R12-092
56624210715083 20768122 Y 1R12-1071 FLT1R12256 1R12-1071 FLT1R12256
1R12-1071 20746481 N 1R12-1071 SPRINGRIDE 1R12-256 1R12-1071 SPRINGRIDE 1R12-256
56624210725083 20682235 Y 1R12-1072 FLT1R12303 1R12-1072 FLT1R12303
1R12-1072 20746482 N 1R12-1072 SPRINGRIDE REPL 1R12-303 1R12-1072 SPRINGRIDE REPL 1R12-303
56624210735083 20682236 Y 1R12-1073 FLT1R12375 1R12-1073 FLT1R12375
1R12-1073 20746483 N 1R12-1073 SPRINGRIDE 1R12-375 1R12-1073 SPRINGRIDE 1R12-375
56624210745083 20682288 Y 1R12-1074 FLT1R12401 1R12-1074 FLT1R12401
1R12-1074 20746484 N 1R12-1074 SPRINGRIDE 1R12-401 1R12-1074 SPRINGRIDE 1R12-401
56624210755083 20682237 Y 1R12-1075 FLT1R12403 1R12-1075 FLT1R12403
