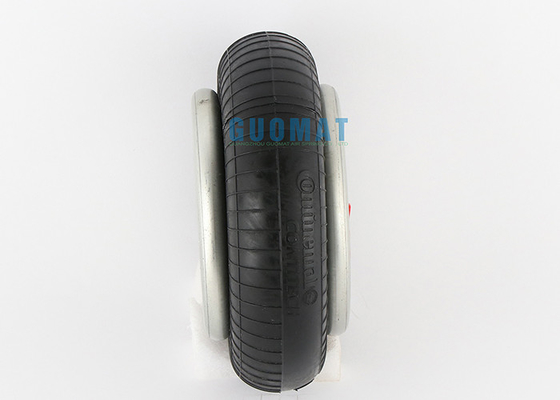

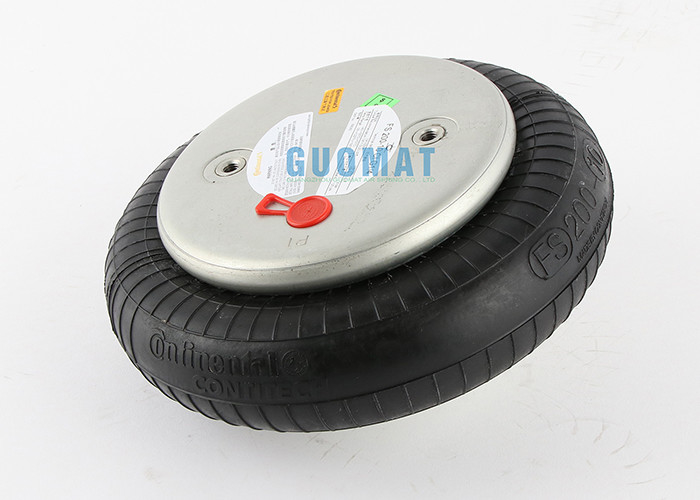

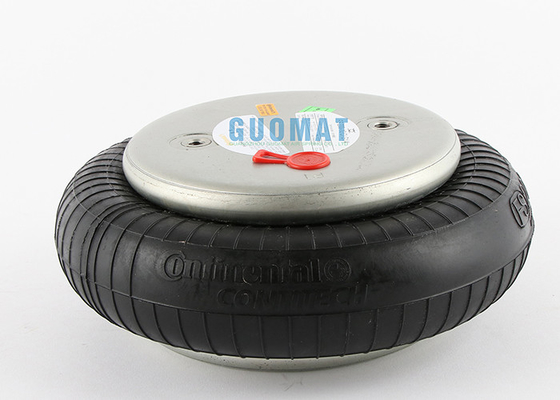

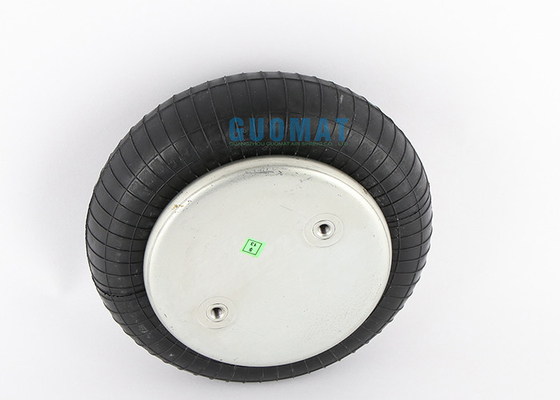

Festo Bellows Cylinders EB-215-80 Industrial Air Springs S08101 With Metric M8

Name: Festo Bellows Cylinders EB-215-80 Industrial Air Springs S08101 With Metric M8
Brand: Festo
SKU: EB-215-80
Rating: 4.7 (152 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Festo
Certification:	ISO/TS16949:2009
Model Number:	EB-215-80

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber Steel	Festo:	EB-215-80
Warranty:	12 Months	Weight:	1.6 Kg
Other Name:	Industrial Air Actuator	Pressure Ability:	0.2-0.8 M Pa
Screw:	M8	Air Inlet:	G3/4
Dunlop:	8X1
High Light:	S08101 Industrial Air Springs , EB-215-80 Industrial Air Springs , G3/4 Air Springs

Festo Bellows Cylinders EB-215-80 Industrial Air Springs Dunlop 8’’x1 S08101 With Metric M8

EB-215-80 Festo Product Description

Air spring shock absorbers can only drive the bellows against the workpiece, otherwise they must be equipped with a stroke limit stop at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber to the minimum height, a reset force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber must be used to absorb force
• Before disassembling the air spring shock absorber, the internal air must be released to prevent accidents and personal injury
• During operation, the rubber air spring shock absorber must not be in contact with other parts

EB-215-80 Festo OEM Cross others:

GUOMAT Parts NO.:1B1209-3/4

Festo Parts NO.: EB-215-80

Festo Parts NO.: EB 215 80

Festo Parts NO.: EB21580

Firestone Parts NO.: W01-M58-6165

Firestone Parts NO.: W01 M58 6165
Firestone Parts NO.: W01M586165

Contitech Parts NO.:FS 120-9
Contitech Parts NO.:FS 120 9

Contitech Parts NO.:FS 1209

Dunlop(FR) Parts NO.:8"x1 S08101

Dunlop(FR) Parts NO.:8x1 S08101

Dunlop(FR) Parts NO.:8*1 S08101

Dunlop(FR) Parts NO.: S08101

Dunlop(FR) Parts NO.:8"x1

Dunlop(FR) Parts NO.:8x1

Dunlop(FR) Parts NO.:8*1

Bosch Parts NO.: 822419003

Norgren Parts NO.: PM/31081
Norgren Parts NO.: PM 31081

Norgren Parts NO.: PM31081

Norgren Parts NO.: 8x1

Norgren Parts NO.: 8"x1

Norgren Parts NO.: 8*1

Weforma Parts NO.: WBE 300-E1
Weforma Parts NO.: WBE 300 E1

Weforma Parts NO.: WBE300E1

Airtech Parts NO.: 140293
Airtech Parts NO.: 111003/1 B-190FB

Airtech Parts NO.: 111003

Airtech Parts NO.:1 B-190FB

Megatech Parts NO.: 1S120-9 3/4 M8

Megatech Parts NO.: 1S120 9 3/4 M8

Megatech Parts NO.: 1S1209 3/4 M8

EB-215-80 Festo Technical Data

❶Nut/blind nut

Top plate screw (nut) teeth: 2 XM8
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2 XM8
The screw center distance of the bottom cover plate: 70 mm

❷Air hole/air inlet/air fitting
Air hole/air inlet: G3 / 4
The screw center distance between the air hole and the nut: 35 mm

❸cover
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows: 200 mm
Working stroke: minimum 50 mm to maximum 115 mm
Maximum height: 115 mm
Minimum height: 50mm
Stroke height: 65mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
With belt loop: Without belt loop

EB-215-80 Sizes:

size	215	Net Weight	2.0 kg/piece
Required integration diameter [mm]	230	HS CODE	87088090
Stroke [mm]	80	Tariff number	87088090
Maximum extension height [mm]	135	RoHS compliant	Yes
Tilt angle [degrees]	20	manufacturer	GUOMAT
Maximum displacement [mm]	10	Reset force [N]	200
Minimum integration height [mm]	50	Product weight [g]	2.000
working principle	Single action	Fixed type	With internal thread
Working pressure [bar]	0 to 8	Pneumatic connection	G3 / 4
Working medium	Compressed air complies with ISO 8573-1:2010 [-:-:4]	Material information	Free of copper and PTFE
Information about handling and controlling media	Can not be operated with oil	RoHs
Corrosion resistance class KBK	2-Medium corrosion stress	Bellows material	NR / BR
Ambient temperature [°C]	-40 to 70	Building materials	Steel; galvanized

PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi]	40	60	80	100	Vol. V [in.³]
H 4.50 in./114.3MM	728	1130	1570	1970	110
H 4.00 in./101.6MM	905	1400	1940	2390	100
H 3.50 in./88.9MM	1050	1610	2240	2740	90
H 3.00 in./76.2MM	1170	1770	2450	3020	75
H 2.50 in./63.5MM	1270	1900	2630	3260	57

VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
Force (load) F [lbf]	801	1,240	1,700	2,130	2,530	110
Spring rate c [lbf/in]	709	949	1,190	1,430	1,670	110
Natural Frequency f0 [Hz]	2.9	2.8	2.7	2.6	2.6	110
Design height H: recommended 4.33 inch, minimum 3.54 inch

Festo Bellows Cylinders EB-215-80 Industrial Air Springs S08101 With Metric M8 0

Festo Bellows Cylinders EB-215-80 Industrial Air Springs S08101 With Metric M8 1

Bellows cylinders EB
Technical data

Type	B1 ±0.2	D1 ∅ max.	D2 ∅	D3 ∅	EE	F1 ±0.2	H1	H2 min.	H3 max.	smax	Tilt angle α max.
EB-145-60	20	145	160	90	Gx	–	90	50	110	10	20°
EB-165-65	44.5	165	180	108	G1⁄4	0	90	51	115	10	20°
EB-215-80	70	215	230	141	G3⁄4	0	110	50	135	10	20°
EB-250-85	89	250	265	161	G3⁄4	38.1	110	51	140	10	20°
EB-325-95	157.5	325	340	228	G1⁄4	73	130	51	150	10	15°
EB-385-115	158.8	385	400	287	G1⁄4	79.4	145	51	175	10	15°

Ordering data – Single-bellows cylinder
Size	Stroke	Part No. Type
	[mm]
145	60	36 486 EB-145-60
165	65	36 487 EB-165-65
215	80	36 488 EB-215-80
250	85	36 489 EB-250-85
325	95	193 788 EB-325-95
385	115	193 789 EB-385-115
