Place of Origin: | China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 1B5330 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Rubber Steel | Firestone OEM: | W01-358-7008 |
---|---|---|---|
Warranty: | 1 Year | Weight: | 5.0 Kg |
Other Names: | Air Actuation Shock Absorbers | Pressure Ability: | 0.2-0.8 M Pa |
Firestone Bellows Number: | 19 | Holland: | 90557226 |
High Light: | W01-358-7008,90557226 Air Spring Shock Bellows,0.8 M Pa Firestone Air Bag Kit |

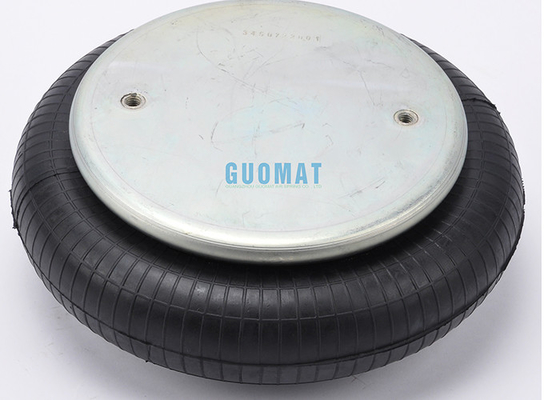

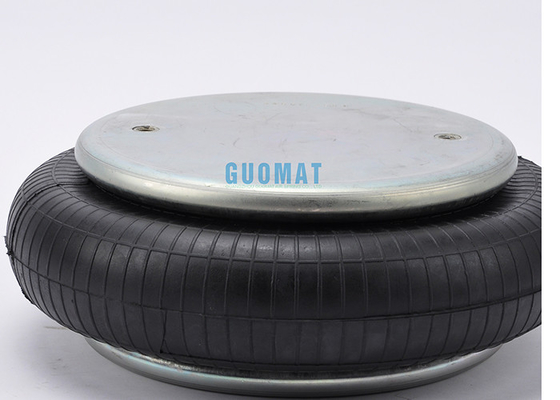

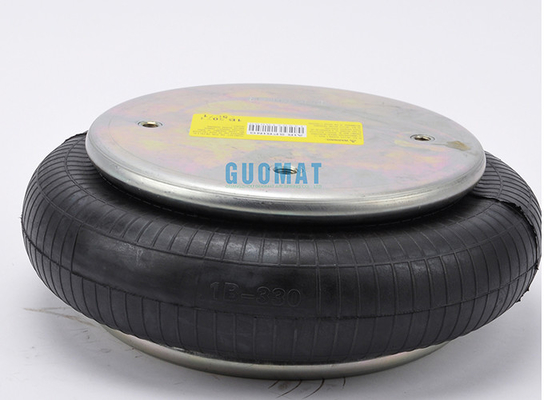

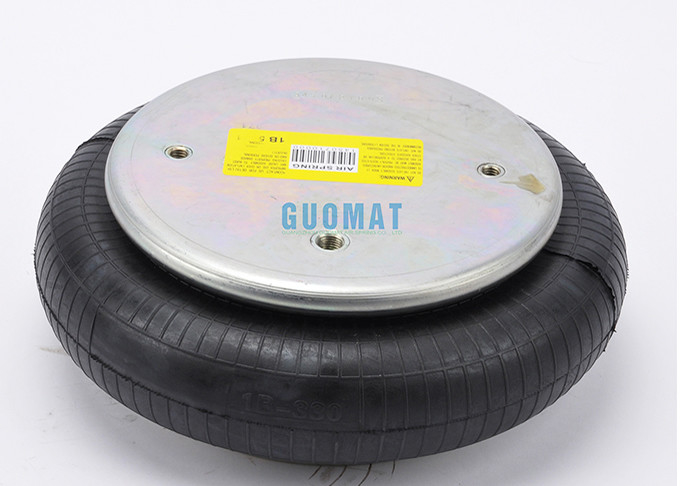

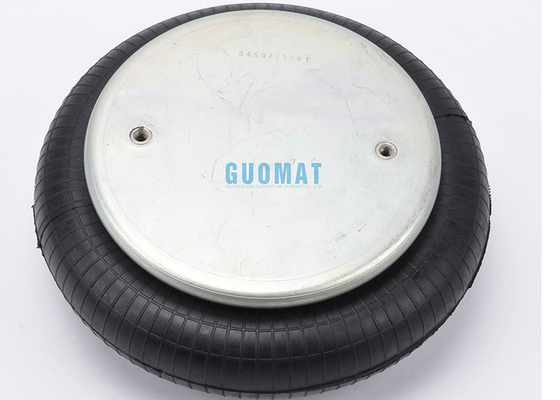

W01-358-7008 Firestone Air Spring Shock Bellows Number 19 Firestone Air Bag Kit For Holland 90557226
GUOMAT 1B5330 Cross OEM Original Equipment Manufacturer:
GUOMAT Part Number:1B5330
Firestone Order Number: W01-358-7008 /
Firestone Order Number:WO13587008 /
Firestone Order Number:WO1-358-7008 /
Firestone Order Number:W013587008 /
Firestone Order Number:W01 358 7008
Firestone Part Number:W01-358-7008 /
Firestone Part Number:WO13587008 /
Firestone Part Number:WO1-358-7008 /
Firestone Part Number:W013587008 /
Firestone Part Number:W01 358 7008
Firestone Bellows Number: 19
Goodyear Part Number:1B12-300 /
Goodyear Part Number:1B12 300 /
Goodyear Part Number:1B12300 /
Goodyear Part Number:1B12-313
Goodyear Part Number:1B12 313
Goodyear Part Number:1B12313
Goodyear Bellows Number:578-91-3-301 /
Goodyear Bellows Number:578 91 3 301 /
Goodyear Bellows Number:578913301
Triangle Part Number:4474
Triangle Bellows Number:6374
Holland (Neway) Number:905-57-226
GUOMAT 1B5330 Specifications and Technical Data
Loading Capacity at 20 psig: 1,300 lbsf
Loading Capacity at 60 psig: 3,900 lbsf
Loading Capacity at 90 psig: 5,850 lbsf
Operating Temperature: 57Cº to -54Cº
Inch size of W01-358-7008 air spring:
Maximum diameter @ 100 PSIG (inch)
12.9
Maximum height (inch)
5.5
Maximum stroke (inch)
3.5
Minimum usable height (inches)
2
80PSI force at 1 inch stroke (lbs)
6720
80 PSI force (lbs) at a stroke of 3 inches
3730
Maximum thrust for maximum stroke @ 80PSI (pounds)
2630
Style cross reference extended height (similar end caps) style number
19-.75
material
2-layer standard line
Bead plate type
3
Blind nut center (inch)
6.2
Port offset of blind nut centerline (inch)
2.88
GUOMAT 1B5330 product description:
The air spring shock absorber can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber to the minimum height, a reset force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber must be used to absorb the force
• Before disassembling the air spring shock absorber, the internal air must be released to prevent accidents and personal injury
• During operation, the rubber air spring shock absorber must not be in contact with other parts
OEM Original Equipment Manufacturer Cross:
Goodyear Part # | Firestone Part # | ContiTech Part # | Contitech Order # |
1B5-510 | No Cross | No Cross | No Cross |
1B8-564 | No Cross | No Cross | No Cross |
1B12-301 | W01-358-7009 | FS 330-11 468 | 64595 |
1B12-305 | W01-358-7043, W01-358-6920 | No Cross | No Cross |
1B12-306 | No Cross | No Cross | No Cross |
1B12-313 | W01-358-7008 | FS 330-11 474 | 64596 |
1B12-322 | W01-358-6994 | FS 330-11 467 | 64594 |
1B12-900 | W01-358-7043 | No Cross | No Cross |
1B14-350 | W01-358-7103 | FS 530-14 442 | 64523 |
1B14-351 | W01-358-7105, W01-358-7104 | FS 530-14 447, FS 530-14 446 | 64525, 64524 |
1B14-358 | W01-358-7112 | FS 530-14 339 | 64521 |
1B14-362 | No Cross | FS 530-14 516 | 64527 |
1B14-373 | No Cross | No Cross | No Cross |
