| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7892 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W013587892 |
|---|---|---|---|
| Gas Hole: | 3/8NPTF | Screw Center Distance: | 89 Mm |
| Cover Plate Diameter: | 160 Mm | Pressure Ability: | 0.2-0.8 M Pa |
| Stroke: | 75~260 Mm | Net Weight: | 3.5 Kg |
| Package Size: | 24*24*24 CM | ||
| High Light: | W01-358-7892 Firestone Air Spring,1003587893C,3/8 NPT Double Convoluted Air Bag |
||
W01-358-7892 Firestone Air Spring W013587892 Double Convoluted Air Bag For Ridewell 1003587893C

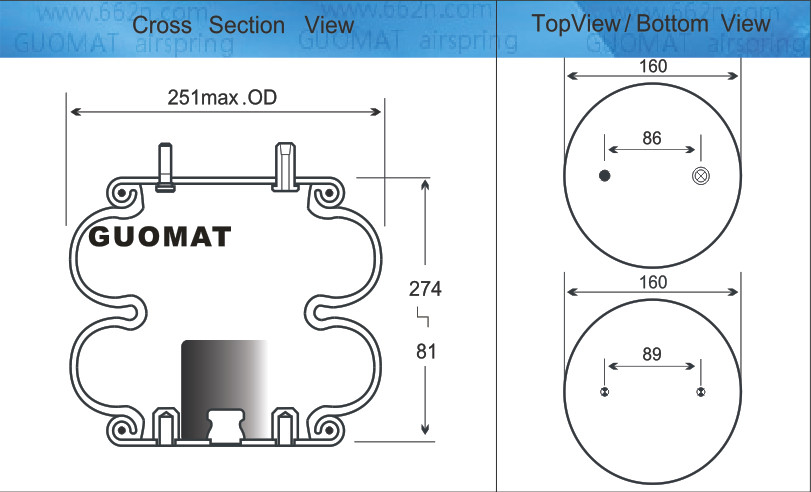

GUOMAT 2B2B7892 Air Spring Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X Combination Stud/Air Inlet Stud Outside Thread is 3/4-16
Bolt or Stud 1/2-13
Screw Center Distance of Top Cover Plate : 85.9 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs XThreaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/8-16NPTF
Screw Center Distance Between Gas Hole and Nut : Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
GUOMAT 2B6949 Cross others OEM
GUOMAT 2B2B7892
Firestone Style 20
Firestone No. W01-358-7892
W01 358 7892
W013587892
OE Manufacturer/Reference No.
Product specifications of Firestone W013587892
Compressed height: 3.55 inches
Top plate number: 3148
Top plate width: 6.31 inches
Piston No.: 3100
Piston width: 6.31 inches
Number of Firestone Bellows: 20
Ridwell Number: 1003587893C
