| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 520217H-2D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum Alloy And Rubber | Firestone: | W01-M58-6987 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 29 KG |
| Other Name: | Air Spring Shock Isolator | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 31 KG | Flange Ring: | With |
| Connection Method: | Flange Connection | ||
| High Light: | 207 Ribbed Neck Aluminum Bead Rings,W01-M58-6987,Firestone Air Spring Bead Rings |
||

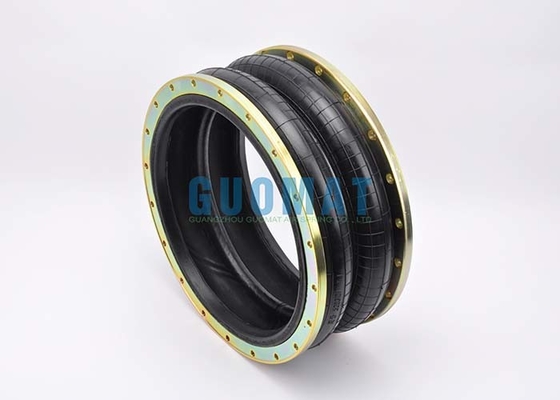

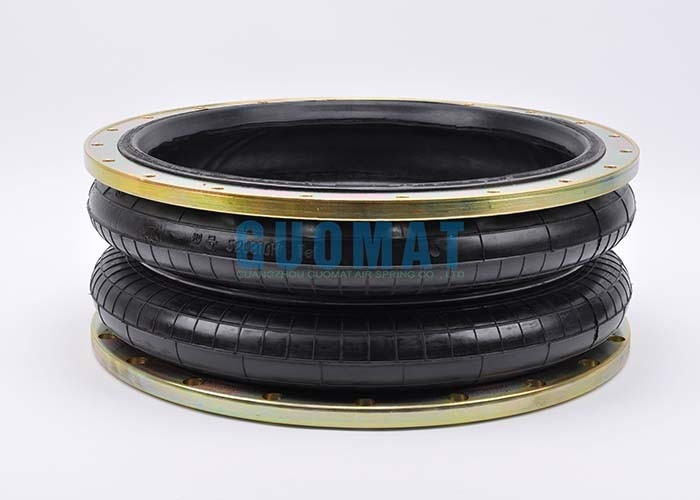

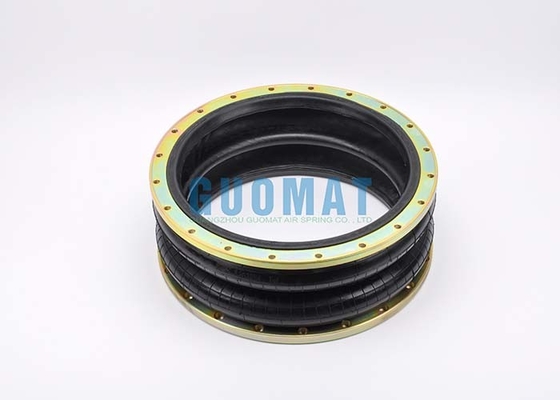

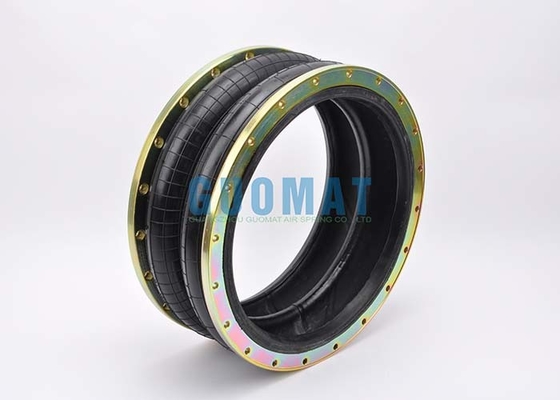

W01-M58-6987 Firestone Air Spring High Strength Con- struction Style 207 Ribbed Neck Aluminum Bead Rings

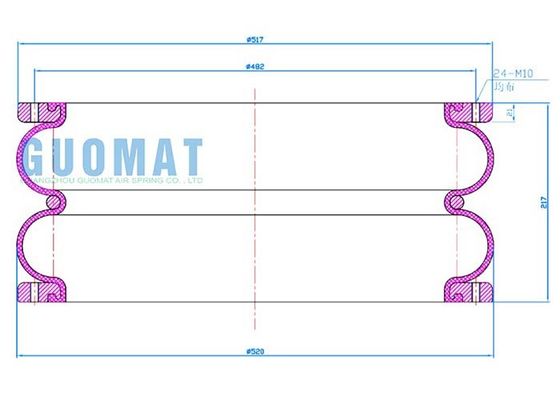

GUOMAT NO.520217H-2D Air Spring Specifications
GUOMAT NO.520217H-2D
Firestone:Style 207
Ribbed neck aluminum
bead rings (equal spacing),
45 mm bolts, nuts, washers
Firestone:Order No.: W01-M58-6987;
Firestone:W01 M58 6987;
Firestone:W01M586987
High Strength Construction
Rubber bellows only
Firestone Rubber bellows:Order No.: W01-358-0207;
Firestone Rubber bellows:W01 358 0207;
Firestone Rubber bellows:W013580207
| GUOMAT NO.520217H-2D Force Table (Use for Airstroke™ actuator design) | |||||||
| Assembly Height (mm) | Volume @ 7 BAR (cu cm) | EFF Area @ 7 BAR (cm sq) | @ 3 BAR | @ 4 BAR | @ 5 BAR | @ 6 BAR | @ 7 BAR |
| 280 | 53863 | 1317 | 37.03 | 50.72 | 64.11 | 78.82 | 92.17 |
| 240 | 47704 | 1618 | 47.12 | 63.62 | 80.06 | 97.4 | 113.25 |
| 200 | 40443 | 1814 | 53.26 | 72.74 | 90.77 | 109.45 | 127 |
| 160 | 32306 | 1962 | 57.95 | 78.61 | 98.18 | 118.39 | 137.31 |
| 120 | 23824 | 2110 | 62.84 | 84.57 | 105.81 | 127.52 | 147.69 |
| 80 | 15280 | 2255 | 67.74 | 90.95 | 113.48 | 136.38 | 157.84 |
| GUOMAT NO.520217H-2D Dynamic Characteristics at 240 mm Design Height (Required for Airmount isolator design only) | |||
| Gauge Pressure (BAR) |
Load (KN) | Spring Rate (kN/m) | Natural Frequency Hz |
| 3 | 47.12 | 497 | 1.62 |
| 4 | 63.62 | 663 | 1.61 |
| 5 | 80.06 | 795 | 1.57 |
| 6 | 97.4 | 923 | 1.54 |
| 7 | 113.25 | 1050 | 1.52 |
