Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw

Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw

  • Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw
  • Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw
  • Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw
  • Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw
  • Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw
Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw
Product Details:
Place of Origin: China
Brand Name: Contitech
Certification: ISO/TS16949:2009
Model Number: FS200-10
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel Contitech: FS 200-10 1/4
Warranty: 12 Months Weight: 1.6 Kg
Other Name: Industrial Air Actuator Pressure Ability: 0.2-0.8 M Pa
Screw: M8 Air Inlet: G1/4
High Light:

FS200-10 Industrial Air Bags

,

Rubber Steel Industrial Air Bags

,

FS 200-10 1/4 Industrial Air Spring

FS200-10 Contitech Air Spring Industrial Air Bags Really original Actuator





Product Description


OEM Original Equipment Manufacturer:FS 200-10 CI

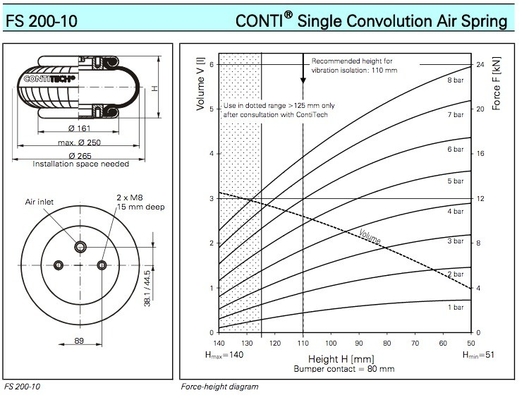

Technical Data

  1. Minimum pressure-0 psi
  2. Restoration force to minimum height-<45LBF / 200N
  3. Whole machine weight-4.4LB
  4. Minimum design height-2.01 inches / 51 mm
  5. Required space-9.65 inches / 245 mm
  6. Maximum stroke-3.9 inches / 99 mm
  7. Top plate diameter 160mm
  8. Diameter of bottom cover 160 mm
  9. Screw center distance 89 mm
  10. The air hole distance between the nuts is 44.5 mm
  11. air hole g1/4
  12. Screw (teeth) teeth 2pcsXM8



FS 200-10 VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS



Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
Force (load) F [lbf] 981 1,530 2,040 2,570 3,090 124
Spring rate c [lbf/in] 701 1,000 1,290 1,560 1,870 124
Natural Frequency f0 [Hz] 2.7 2.7 2.6 2.5 2.5 124
Design height H: recommended 4.53 inch, minimum 3.94 inch






FS 200-10 PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES



Force F [lbf]
Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
H 4.50 in. 939 1440 1920 2430 2950 120
H 4.00 in. 1120 1690 2260 2850 3430 110
H 3.50 in. 1250 1880 2530 3170 3850 96
H 3.00 in. 1370 2050 2760 3460 4170 83
H 2.50 in. 1450 2170 2930 3640 4410 68





FS 200-10 PURCHASE ORDER DATA



Type Air Inlet Order No.
Rubber bellows only

62828

with crimped plates

1/4 NPT

0 in. excentrical

75229

with crimped plates

75248





FS 200-10 SERVICE INSTRUCTIONS



  Thread max. Torque
  2X3/8-16UNC                                             20 lbf ft / 2.26N.M
1/4NPT                                             20 lbf ft / 2.26N.M



FS 200-10 Features:



1,It can be used with height adjustment valve, which can always maintain a constant height to prevent load fluctuations.



2, It can be used together with auxiliary tank and throttle valve to obtain excellent damping effect. And it can reduce the resonance amplitude.



3, This air spring is simple in structure and easy to install and disassemble.


Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw 0Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw 1Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw 2
