Vibracoustic V1B20 305mm Single Convoluted Air Spring 230116-1

Vibracoustic V1B20 305mm Single Convoluted Air Spring 230116-1

    • Vibracoustic V1B20 305mm Single Convoluted Air Spring 230116-1
    • Vibracoustic V1B20 305mm Single Convoluted Air Spring 230116-1
    • Vibracoustic V1B20 305mm Single Convoluted Air Spring 230116-1
    • Vibracoustic V1B20 305mm Single Convoluted Air Spring 230116-1
  • Vibracoustic V1B20 305mm Single Convoluted Air Spring 230116-1

    Product Details:

    Place of Origin: China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 230116-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Rubber GUOMAT: 230116-1
    Warranty: 12 Months Net Weight: 1.0 KG
    Other Name: Air Spring Isolator Pressure Ability: 0.2-0.8 M Pa
    Gross Weight: 1.5 KG Flange Ring: Without
    Connection Method: Flange Connection
    High Light:

    305mm Single Convoluted Air Spring

    ,

    230116-1

    ,

    V1B20 Convoluted Rubber Bellows

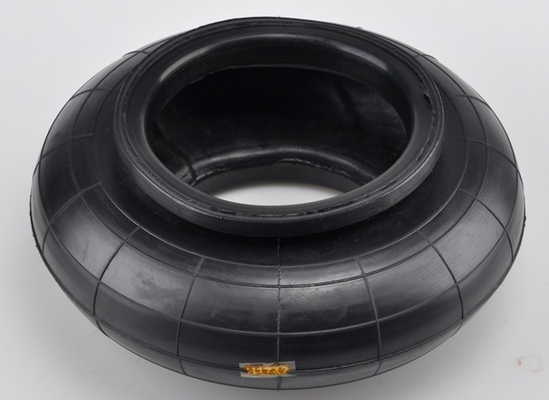

    vibracoustic V1B20 Single Convoluted Air Spring Convoluted Rubber Bellows 230116-1 Max Dia. 305mm





    Guomat 230116-1 Industrial Single Convoluted Air Spring Specifications





    Technical data 1 Technical data
    Loading capacity max. 1 Load capacity max. (7 bar)
    23.75 kN
    Max. Lifting pressure 1 Max. Pressure for lifting processes
    8.0 bar
    Diameter max. 1 diameter max.
    305 mm
    Required space 1 space requirement Ø
    335 mm
    Height max.1 Max. Height
    175 mm
    Height min. 1 min. Height
    55 mm
    Weight 1 weight
    1.03 kg
    Force to collapse to min. height 1 restoring force to the minimum height



    ❶Nut / Blind Nut

    The Long Of The Nut:25 mm

    Top Cover Plate Screw number: 8 pcs

    Bottom Cover Plate Screw number : 8 pcs

    Top Cover Plate Screw (Nut) Tooth : M10

    Screw Center Distance of Top Cover Plate :

    Bottom Cover Plate Screw (Nut) Tooth : M10

    Screw Center Distance of Bottom Cover Plate :

    ❷ Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G1/2

    ❸ Cover Plate

    Top  Diameter: 172 mm

    Bottom Cover Plate Diameter: 172 mm

    ❹Rubber Bellows

    Rubber Bellows Natural Diameter : 150 mm

    Rubber Bellows Natural Height :115 mm

    ❺ Bumper block / Buffer block

    Without Bumper Block

    ❻ Girdle Hoop / Girdle Ring

    Without Girdle Hoop





    The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects





    Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate



    Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.



    Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.



    Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.



    Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.



    Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.





    GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!





    • They almost do not need to maintain.
    • Increase the service life of tires and brake pads.
    • Let you pull anything; Eliminate expensive admission cost.
    • Greatly reduce the breakage of the other vehicle components and maintenance.
    • Back to you in the scrappage, truck and trailer with air suspension is more valuable.
    • Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
    • Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
    • To provide smooth to load, reduce the cost of expensive insurance claims and packaging.





    The drawing of vibracoustic V1B20:



    Vibracoustic V1B20 305mm Single Convoluted Air Spring 230116-1 0Vibracoustic V1B20 305mm Single Convoluted Air Spring 230116-1 1
