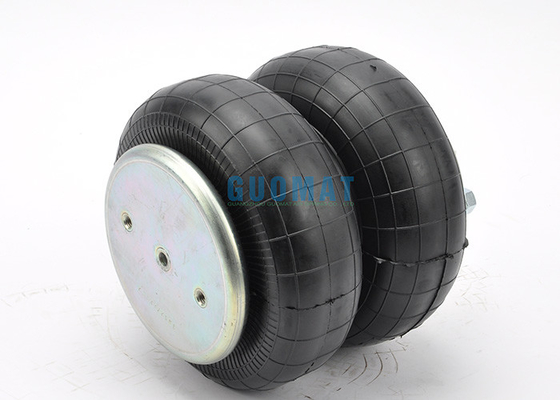

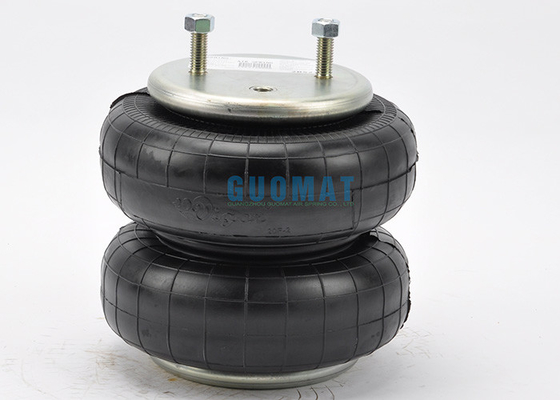

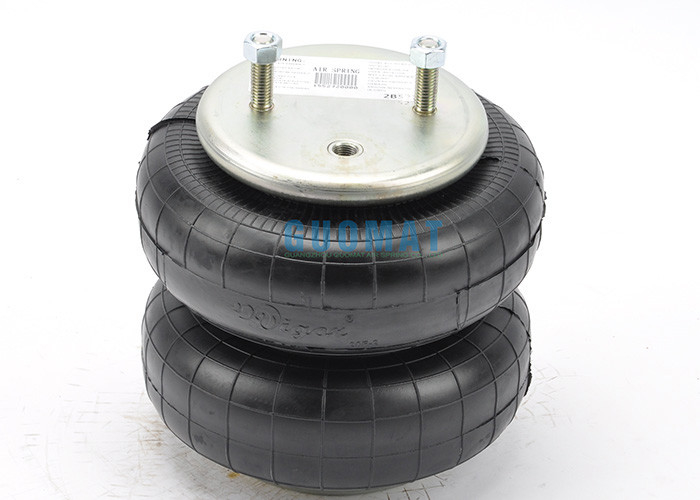

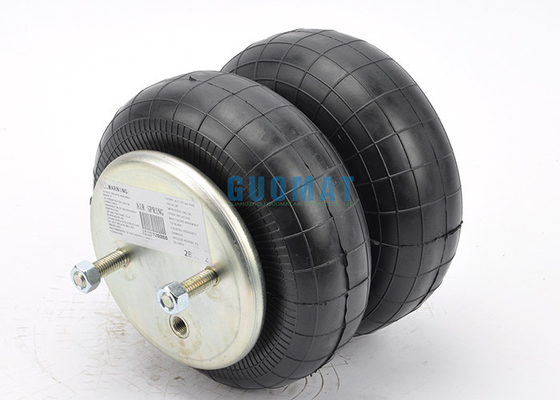

FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237

FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237

  • FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237
  • FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237
  • FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237
  • FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237
FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6943
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Contitech: FD200-25 426
Gas Hole: 1/4NPTF Screw Tooth: 3/8-16UNC
Screw Center Distance: 89 Mm Cover Plate Diameter: 160 Mm
Pressure Ability: 0.2-0.8 M Pa Stroke: 79-325 Mm
Package Size: 24*24*24 Cm Triangle: 6332
High Light:

FD200-25 426 Contitech Air Spring

,

Triangle 6332 Contitech Air Spring

,

SAF 90557237

FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting shaft SAF 90557237





Common applications of GUOMAT 2B6943 AIR SPRING airbag:



The main trailer suspension GUOMAT AIR SPRING provides excellent cargo protection, is not easy to cause damage to the cargo, and at the same time reduces other maintenance problems caused by road vibration and trailer bounce when empty. The air spring can make the trailer service life longer. Because of its good shock absorption effect, it can be used to haul more kinds of goods, such as some fragile and breakable items. GUOMAT AIR SPRING thus reduces the expensive empty trailer mileage.





GUOMAT 2B6943 Specifications:



Contitech Part Number:FD200-25 426

Contitech Part Number:FD 200-25 426

Contitech Part Number:FD200-25 426

Firestone Part Number: W01-358-6943 /

Firestone Part Number:W013586943 /

Firestone Part Number:W01 358 6943

Firestone Bellows Number: 20-2

Goodyear Part Number: 2B9-250

Goodyear Part Number: 2B9 250

Goodyear Part Number: 2B9250

Goodyear Bellows Number: 578-92-3-206 /

Goodyear Bellows Number:578923206 /

Goodyear Bellows Number:578 92 3 206

Triangle Part Number: 4426

Triangle Bellows Number: 6332

Watson & Chalin #: AS-0041

Bellows NO.: 20-2

Order Number: W01-358-6943

Top Plate Number: 3101

Bottom Piston Number: 3090





Technical Data:



Compressed Height: 3.12 inches /

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 79 mm

Gas Hole / Air inlet : 1/4 NPTF

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

loading cap.at3.0bar: 11.17kn
loading cap.at7.0bar: 31.65kn

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº
Weight : 6.5kg
Desigh height : 300mm
Deflection(height min) :150mm
Deflection(height max):440mm
Working stroke: 290mm
Cross Information





GUOMAT 2B6943 Cross others OEM



OEM References Numbers References Numbers
Firestone : W01-358-6943 Watson&Chalin : AS-0041
Contitech : FD 200-25 426 Neway/SAF : 90557237
Contitech :: 161332 V-Steer II (Lift Bag)
Goodyear: 2B9-250 Van Raden
Triangle : 6332/4426 Ridewell : 1003586943C
Goodyear:: 578923206 Tuthill : 6352

CONTITECH FD 200-25 426
FIRESTONE W01-358-6943
GOODYEAR 2B9-250
OEM Information
WATSON&CHALIN AS-0041
NEWAY 90557237





Design height H: recommended 10 inch, minimum 9.06 inch

Pressure p [psi]

40

60

80

100

120

Vol. V [in.3]

Force (Load) [lbf]

1230

1890

2540

3190

3840



Spring rate [lbf/in.]

389

552

741

932

1080

538

Natural frequency [Hz]

1.8

1.8

1.7

1.7

1.7







Pneumatic application – static characteristic values

Force F [lbf]

Pressure p [psi]

40

60

80

100

120

Vol. V [in.3]

Height H [in.]

11.0

948

1470

2000

2550

3110

560

10.0

1180

1780

2430

3060

3720

540

9.0

1370

2070

2780

3510

4240

510

8.0

1530

2280

3070

3850

4640

470

7.0

1670

2490

3340

4200

5030

440

6.0

1790

2680

3570

4470

5360

400

5.0

1880

2800

3750

4700

5570

350

4.0

1960

2910

3910

4900

5750

300









Details Technical data at the below photo



FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237 0FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237 1FD200-25 426 Contitech Air Spring Triangle 6332 For Lifting Shaft SAF 90557237 2
