| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6945 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FD 200-25 427 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Two Pillars Stick Nuts: | 2X1/2-13UNC |
| Screw Center Distance: | 89 Mm | Cover Plate Diameter: | 160 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Natural Height: | 235 Mm |
| Triangle: | 4427 | ||
| High Light: | FD 200-25 427,Sc2125 Contitech Air Spring,235mm Contitech Air Spring |
||

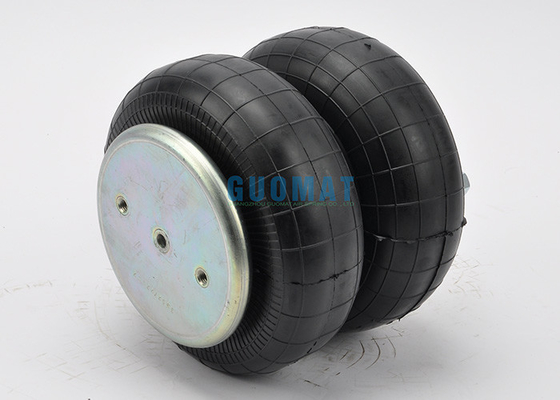

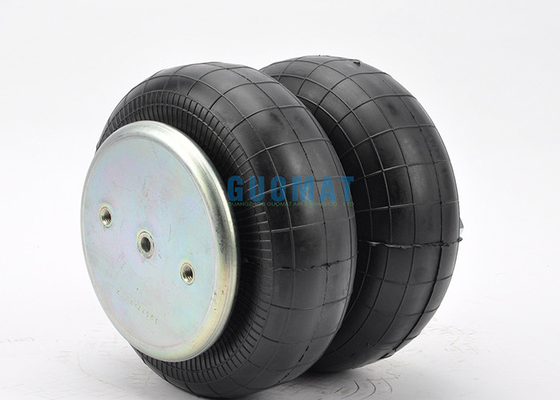

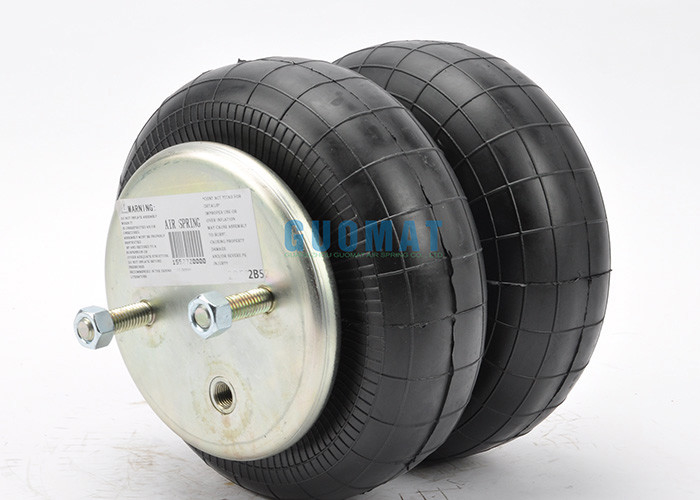

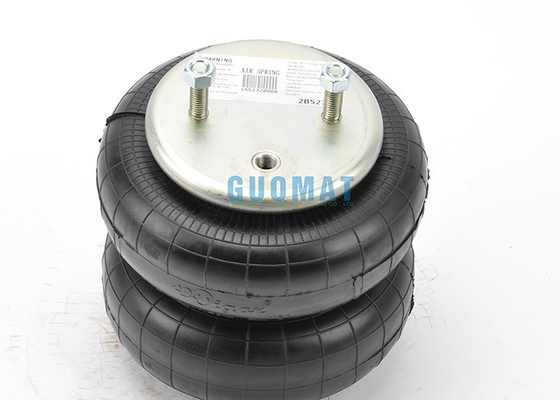

Contitech Air Spring FD 200-25 427 Triangle Air Shock Suspension 4427 Leland Sc2125
Applications of GUOMAT 2B6945 AIR SPRING airbag
The drive axle GUOMAT 2B6945 AIR SPRING greatly improves the driving and handling performance of the tractor, thereby improving the comfort and safety of the driver. GUOMAT 2B6945 AIR SPRING reduces the maintenance of the tractor, prolongs the wear of the tires, and increases the depreciation price of the car.GUOMAT 2B6945 AIR SPRING hardly needs too much maintenance, and the service life of GUOMAT 2B6945 AIR SPRING may be more than twice that of steel springs.
GUOMAT NO. 2B6945 Specifications:
Top hole/stud: 3Bottom hole/stud: 2Top cover: 6.4 inches / 160 mmDiameter of the bottom cover: 6.4 inches / 160 mmFolded height: 3.8 inches / 96 mmTop cover screw center distance: 3.5 inches / 89 mmScrew center distance of the bottom cover: 3.5 inches / 89 mmNatural diameter of rubber bellows: 232.5 mmWorking stroke: maximum 309 mm to minimum 96 mm / maximum 12.2 inches to minimum 3.8 inchesMaximum height: 12.2 inches / 309 mmMinimum height: 3.8 inches / 96 mmCompressed height: 8.3 inches / 213 mmNatural rubber bellows: 9.2 inches / 235 mm
GUOMAT NO. 2B6945 Cross others OEM
GUOMAT Part NO. 2B6945
Conti Tech: FD200-25427 /
Conti Tech: FD200 25427
Conti Tech:FD200-25 427
Goodyear Trimmed: 2B9253
Firestone W01-358-6945 / 20-2
Firestone W01 358 6945 / 20-2
Firestone W013586945 / 20-2
Firestone W01-358-6945
Firestone W01 358 6945
Firestone W013586945
Firestone:20-2
Goodyear 2B9-253
Goodyear Flexmember: 578-92-3-206 /
Goodyear Flexmember:578923206 /
Goodyear Flexmember:578 92 3 206
Triangle Spring: 4427 /
Triangle Spring:6332
Firestone: 6945
Conti Tech: 64550
Ridewell: 1003586945C
Batco: 10-96945
UCF / Impex: AB-2B9-253
T.W. Distribution: AB6945
Dallas Spring: AS6945
Midland / Haldex: CS209253
Euclid/Meritor Aftermarket: E-FS6945
Euclid/Meritor Aftermarket: FS6945
Leland: SC2125
Watson&Chalin : AS0119F / AS01451G
| OEM References Numbers | References Numbers |
| Firestone W01-358-6951 | Triangle : 6332/4427 |
| Contitech FD 200-25 | Leland : Sc2125 |
| Goodyear 578923206 | Watson&Chalin : AS0119F |
| Goodyear 2B9-253 | : AS01451G |
| Ridewell : 1003586945C |
Details Technical data at the below photo
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values Force F [kN]
