S-160-2R GUOMAT F-160-2 Press Rubber Air Spring With Steel Cover Plate

S-160-2R GUOMAT F-160-2 Press Rubber Air Spring With Steel Cover Plate

    • S-160-2R GUOMAT F-160-2 Press Rubber Air Spring With Steel Cover Plate
    • S-160-2R GUOMAT F-160-2 Press Rubber Air Spring With Steel Cover Plate
    • S-160-2R GUOMAT F-160-2 Press Rubber Air Spring With Steel Cover Plate
    • S-160-2R GUOMAT F-160-2 Press Rubber Air Spring With Steel Cover Plate
    • S-160-2R GUOMAT F-160-2 Press Rubber Air Spring With Steel Cover Plate
  • S-160-2R GUOMAT F-160-2 Press Rubber Air Spring With Steel Cover Plate

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: F-160-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,paypal or others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Rubber And Stainless Steel Yokohama: S-160-2
    GUOMAT: F-160-2R Layer Number: 2 Convolutions
    Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.5 Hz
    Net Weight: 1.85 KG Gross Weight: 2.35 KG
    Package Size: 110mm*220mm*220mm
    High Light:

    F-160-2 Press Rubber Air Spring

    ,

    S-160-2R Press Rubber Air Spring

    ,

    TS16949 Rubber Air Spring

    S-160-2R GUOMAT F-160-2 Press Rubber Air Spring With Steel Cover Plate And Base Inflation Port

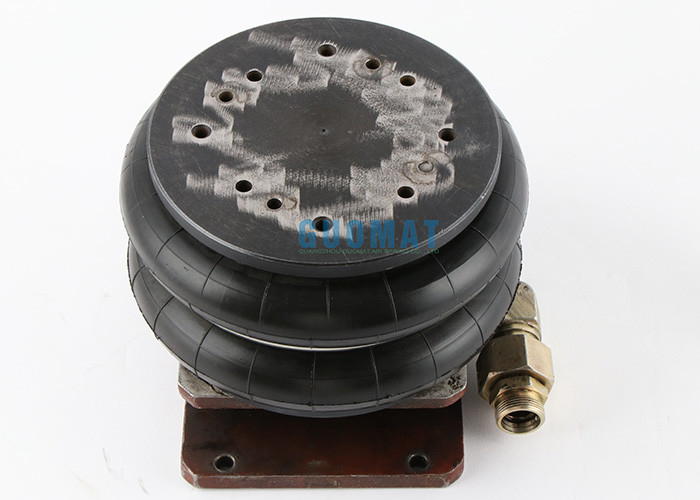

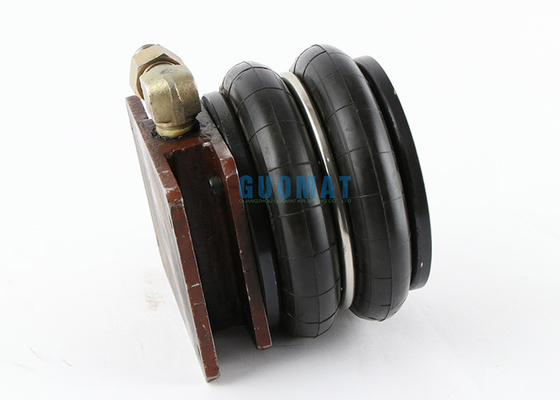

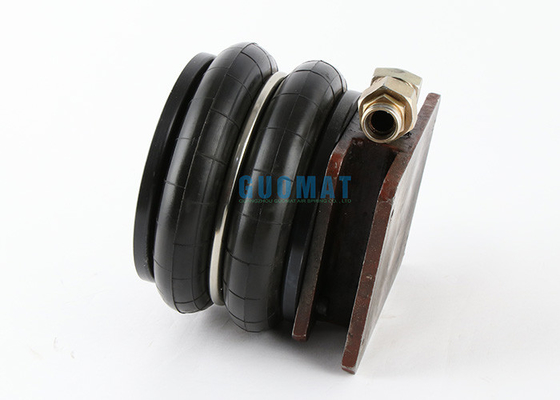

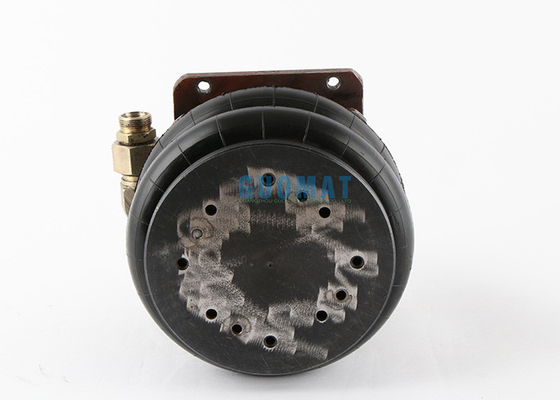

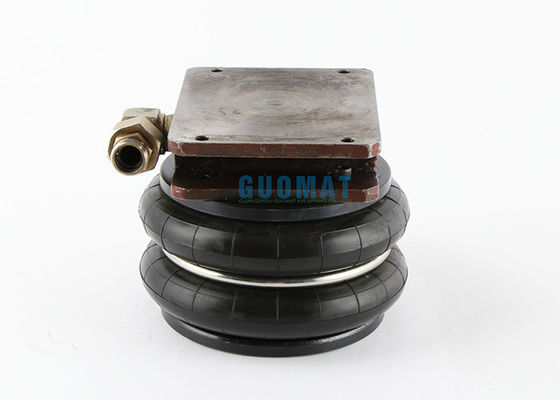

    The GUOMAT F-160-2 bed air spring has a bladder / rubber bellows produced by our factory, and the cover and base are also available. The upper cover and base of the picture taken were sent by the customer to us and installed for him. The inflatable position is also the customer's, but the customer can customize it if they really need it.





    Net Weight:1.85 KG



    Gross Weight:2.35 KG



    Package Size:110mm*220mm*220mm





    S-160 items Detailed Parameter Table:





    GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
    Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
    F-160-1 S-160-1 200 1.9 9.8 636 3 0.69 2.9-3.9
    F-160-2 S-160-2 200 2.1 9.8 255 2.5 0.88 2.9-3.9
    F-160-3 S-160-3 200 3.4 9.8 157 2 0.88 2.9-3.9
    F-160-4 S-160-4 200 4.7 9.8 118 1.7 0.88 2.9-3.9




    GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
    Design High(mm) Maximum High(mm) Minimum Height(mm)
    F-160-1 S-160-1 72 102 40 ±25 220
    F-160-2 S-160-2 98 148 53 ±35 220
    F-160-3 S-160-3 152 227 82 ±53 220
    F-160-4 S-160-4 206 306 111 ±70 220





    S-160-2 air spring fits below items



    Bronzing machine
    Shock absorption
    Roller tension
    Quick lock device
    Reel tension
    Machine isolation
    Scissor lift
    Mechanical hopper vibration and damping treatment stop
    Direct force
    Platform lift
    Short stroke mechanical linkage





    GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



    GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
    F-600-1 F-600-R1 600-1r F-240-4 F-240-R4 240-4r
    F-600-2 F-600-R2 600-2r F-240-3 F-240-R3 240-3r
    F-600-3 F-600-R3 600-3r F-240-2 F-240-R2 240-2r
    F-600-4 F-600-R4 600-4r F-240-1 F-240-R1 240-1r
    F-600-5 F-600-R5 600-5r F-220-4 F-220-R4 220-4r
    F-550-2 F-550-R2 550-2r F-220-3 F-220-R3 220-3r
    F-550-3 F-550-R3 550-3r F-220-2 F-220-R2 220-2r
    F-500-2 F-500-R2 500-2r F-200-2 F-200-R2 200-2r
    F-500-3 F-500-R3 500-3r F-200-3 F-200-R3 200-3r
    F-500-4 F-500-R4 500-4r F-200-4 F-200-R4 200-4r
    F-500-5 F-500-R5 500-5r F-160-1 F-160-R1 160-1r
    F-450-1 F-450-R1 450-1r F-160-2 F-160-R2 160-2r
    F-450-2 F-450-R2 450-2r F-160-3 F-160-R3 160-3r
    F-450-3 F-450-R3 450-3r F-160-4 F-160-R4 160-4r
    F-450-4 F-450-R4 450-4r F-120-4 F-120-R4 120-4r
    F-450-5 F-450-R5 450-5r F-120-3 F-120-R3 120-3r
    F-400-2 F-400-R2 400-2r F-120-2 F-120-R2 120-2r
    F-400-3 F-400-R3 400-3r F-100-4 F-100-R4 100-4r
    F-400-4 F-400-R4 400-4r F-90-3 F-90-R3 90-3r
    F-400-5 F-400-R5 400-5r F-90-2 F-90-R2 90-2r
    F-350-1 F-350-R1 350-1r F-90-1 F-90-R1 90-1r
    F-350-2 F-350-R2 350-2r F-300-1 F-300-R1 300-1r
    F-350-3 F-350-R3 350-3r F-300-2 F-300-R2 300-2r
    F-350-4 F-350-R4 350-4r F-300-3 F-300-R3 300-3r
          F-300-4 F-300-R4 300-4r
