S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery

S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery

    • S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery
    • S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery
    • S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery
    • S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery
    • S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery
  • S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: F-100-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,paypal or others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel Crimp, Rubber Yokohama: S-100-2
    GUOMAT: F-100-2 Layer Number: 2 Convolutions,
    Vibration Frequency: 1.8 Hz Maximum Internal Pressure: 0.69 M Pa
    Net Weight: 1 KG Packing Size: 16*16*13 Cm
    Natural Width: 145MM
    High Light:

    YOKOHAMA Air Spring

    ,

    S-100-2R Air Cushion Bags

    ,

    145MM YOKOHAMA Air Spring

    YOKOHAMA Air Spring S-100-2R Air Cushion Bags For Small Hardware Punch Machinery





    The GUOMAT F-100-2 bed air spring has a bladder / rubber bellows produced by our factory, and the cover and base are also available. The upper cover and base of the picture taken were sent by the customer to us and installed for him. The inflatable position is also the customer's, but the customer can customize it if they really need it.





    Net Weight:1.0 KG



    Gross Weight:1.3 KG



    Package Size:110mm*160mm*160mm





    GUOMAT F-100-2 / S-100-2r use for:



    GUOMAT F-100-2 / S-100-2r air spring of the presses is divided into single, double, three, four and five. Punch the air spring mattress made from natural rubber after a series of process of rubber skin, use the making craft of the air spring on the punch than ordinary industrial air spring is much more complex, therefore, the cost will be higher, the price is a natural a lot higher than the other. There are stainless steel rings in the middle, stainless steel ring in the single layer, and a steel ring in the hyperbolic. GUOMAT F-100-2 / S-100-2r two curves contain two steel rings,The GUOMAT F-100-2 / S-100-2r two curves contain one steel rings, and the fourth one contains three steel rings, and the fifth one contains four steel rings.





    Detailed Parameter Table of GUOMAT F-100-2 / S-100-2:





    GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
    Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
    F-100-2 S-100-2 79   3.9   2.2 0.88 2.9-3.9
    F-100-3 S-100-3 79   3.9   2.7 0.88 2.9-3.9
    F-100-4 S-100-4 79 1.95 3.9 59 1.9 0.88 2.9-3.9
    F-90-3 S-90-3 79 1.4 3.9 78 2.2 0.88 2.9-3.9
    F-90-2 S-90-2 79 0.85 3.9 118 2.7 0.88 2.9-3.9
    F-90-1 S-90-1 63.5 0.5 3.1 103 2.9 0.88 3.9-4.9




    GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
    Design High(mm) Maximum High(mm) Minimum Height(mm)
    F-100-2 S-100-2 100 148 53 ±35 160
    F-100-3 S-100-3 155 227 82 ±53 160
    F-100-4 S-100-4 206 296 121 ±60 160





    Description about GUOMAT F-100-2 / S-100-2 used in Knuckle Type Presses:



    The knuckle type presses, with the elbow joint as the transmission mechanism, the sliding block is moved to the lower part (called the lower dead point), and it is suitable for cold forging. There is also an elbow - type punch that combines connecting rod and elbow.

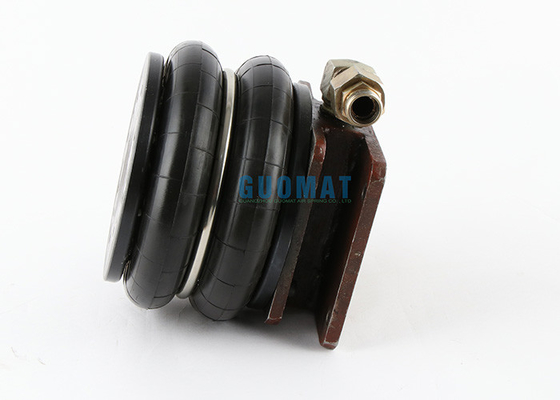

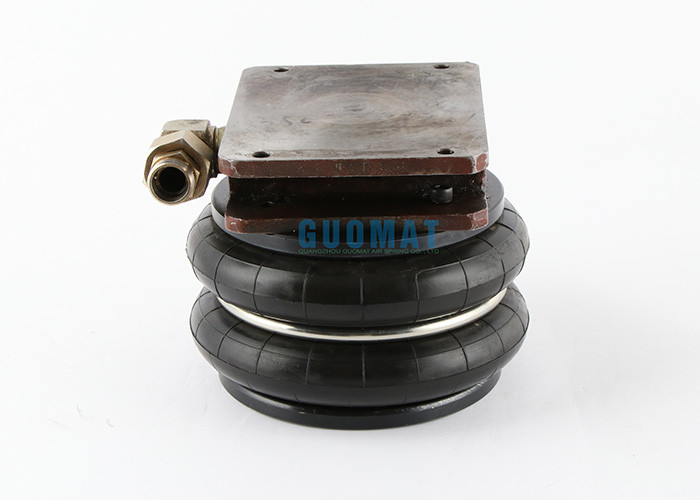

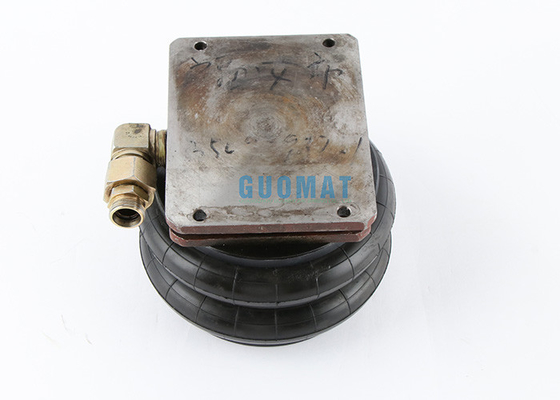

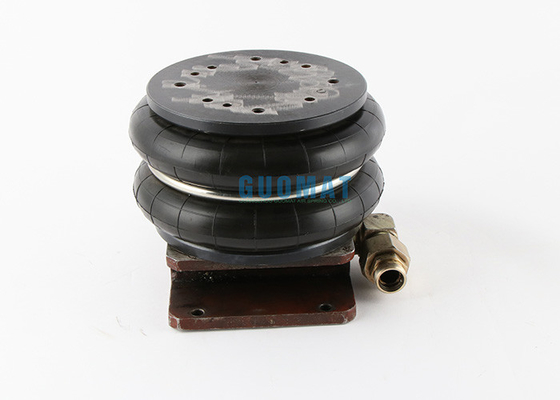

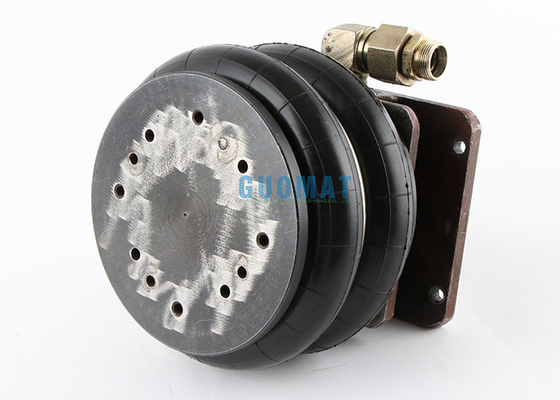

    Product detail photos Of GUOMAT F-100-2 / S-100-2





    S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery 0S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery 1S-100-2R YOKOHAMA Air Spring For Hardware Punch Machinery 2
