Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press

Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press

    • Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press
    • Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press
    • Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press
    • Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press
    • Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press
  • Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: F-120-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,paypal or others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Rubber And Steel Yokohama: S-120-2
    GUOMAT: F-120-2 Layer Number: 2 Convolutions
    Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.7 Hz
    N.W.: 1.125 KG
    High Light:

    S-120-2 Yokohama Air Spring

    ,

    Punching Press Yokohama Air Spring

    ,

    2 Convolutions Yokohama Air Spring

    Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press

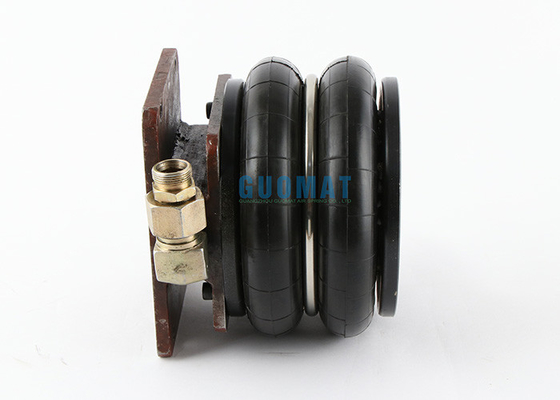

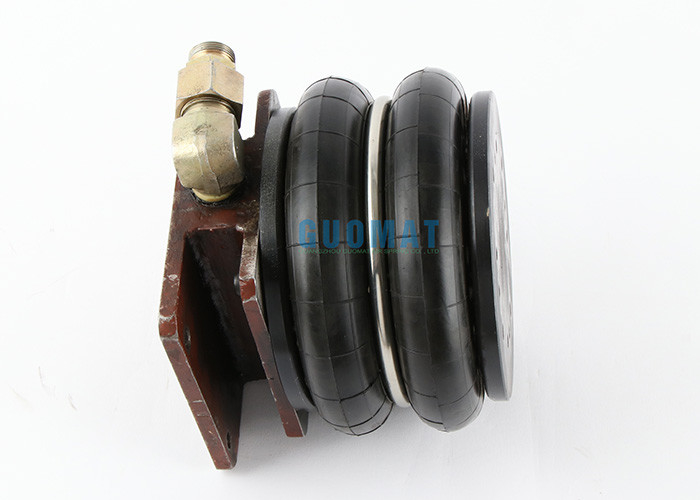

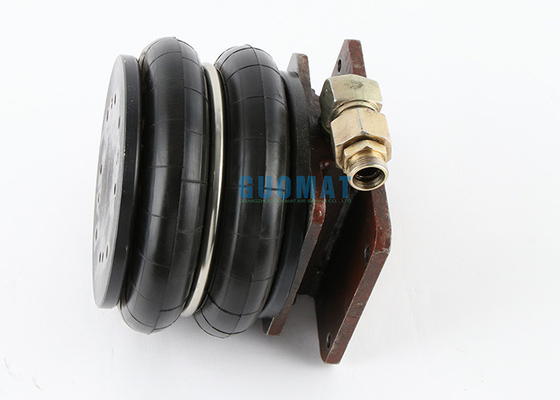

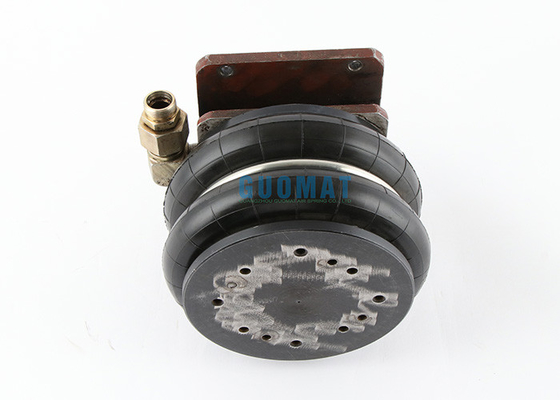

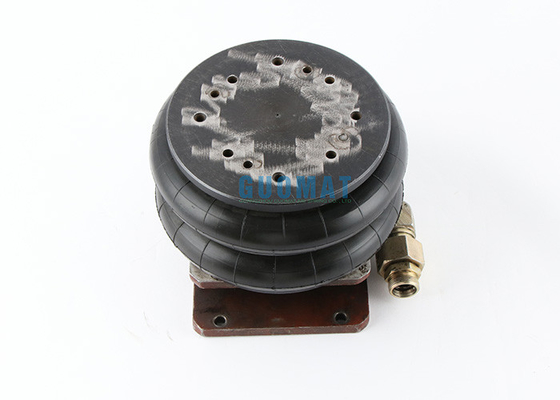

    The GUOMAT F-120-2 bed air spring has a bladder / rubber bellows produced by our factory, and the cover and base are also available. The upper cover and base of the picture taken were sent by the customer to us and installed for him. The inflatable position is also the customer's, but the customer can customize it if they really need it.





    Net Weight:1.125 KG



    Gross Weight:1.60 KG



    Package Size:110mm*160mm*160mm





    GUOMAT F-120 items Detailed Parameter Table:




    GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
    Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
    F-120-4 S-120-4 113 3.4 5.2 69 1.8 0.88 2.9-3.9
    F-120-3 S-120-3 113 2.1 5.2 98 2.2 0.88 2.9-3.9
    F-120-2 S-120-2 113 1.25 5.2 157 2.7 0.88 2.9-3.9
    F-100-4 S-100-4 79 1.95 3.9 59 1.9 0.88 2.9-3.9
    F-90-3 S-90-3 79 1.4 3.9 78 2.2 0.88 2.9-3.9
    F-90-2 S-90-2 79 0.85 3.9 118 2.7 0.88 2.9-3.9
    F-90-1 S-90-1 63.5 0.5 3.1 103 2.9 0.88 3.9-4.9




    GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
    Design High(mm) Maximum High(mm) Minimum Height(mm)
    F-120-4 S-120-4 206 306 111 ±70 180
    F-120-3 S-120-3 152 227 82 ±53 180
    F-120-2 S-120-2 98 148 53 ±35 180





    GUOMAT F-120-2 air spring fits below items



    Papermaking equipment

    Scissor lift

    Mechanical Hopper vibration and damping handling stop

    Direct force

    Platform lift

    Short stroke mechanical linkage

    Hot foil stamping press

    Impact absorbtion

    Roller tensioning

    Quick lock device

    Reel tensioning

    Machine isolation





    GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



    GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
    F-600-1 F-600-R1 600-1r F-240-4 F-240-R4 240-4r
    F-600-2 F-600-R2 600-2r F-240-3 F-240-R3 240-3r
    F-600-3 F-600-R3 600-3r F-240-2 F-240-R2 240-2r
    F-600-4 F-600-R4 600-4r F-240-1 F-240-R1 240-1r
    F-600-5 F-600-R5 600-5r F-220-4 F-220-R4 220-4r
    F-550-2 F-550-R2 550-2r F-220-3 F-220-R3 220-3r
    F-550-3 F-550-R3 550-3r F-220-2 F-220-R2 220-2r
    F-500-2 F-500-R2 500-2r F-200-2 F-200-R2 200-2r
    F-500-3 F-500-R3 500-3r F-200-3 F-200-R3 200-3r
    F-500-4 F-500-R4 500-4r F-200-4 F-200-R4 200-4r
    F-500-5 F-500-R5 500-5r F-160-1 F-160-R1 160-1r
    F-450-1 F-450-R1 450-1r F-160-2 F-160-R2 160-2r
    F-450-2 F-450-R2 450-2r F-160-3 F-160-R3 160-3r
    F-450-3 F-450-R3 450-3r F-160-4 F-160-R4 160-4r
    F-450-4 F-450-R4 450-4r F-120-4 F-120-R4 120-4r
    F-450-5 F-450-R5 450-5r F-120-3 F-120-R3 120-3r
    F-400-2 F-400-R2 400-2r F-120-2 F-120-R2 120-2r
    F-400-3 F-400-R3 400-3r F-100-4 F-100-R4 100-4r
    F-400-4 F-400-R4 400-4r F-90-3 F-90-R3 90-3r
    F-400-5 F-400-R5 400-5r F-90-2 F-90-R2 90-2r
    F-350-1 F-350-R1 350-1r F-90-1 F-90-R1 90-1r
    F-350-2 F-350-R2 350-2r F-300-1 F-300-R1 300-1r
    F-350-3 F-350-R3 350-3r F-300-2 F-300-R2 300-2r
    F-350-4 F-350-R4 350-4r F-300-3 F-300-R3 300-3r
          F-300-4 F-300-R4 300-4r



    Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press 0

    Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press 1Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press 2Convoluted Rubber Bellows S-120-2 Yokohama Air Spring F-120-2 For Punching Press 3
